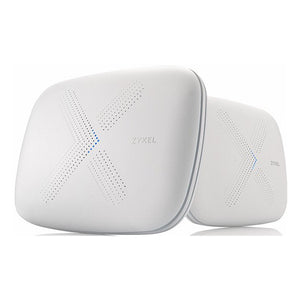

Zyxel AC3000 Tri-Band WiFi System (Multy X)

Zyxel AC3000 Tri-Band WiFi System (Multy X)

  • ₱21,895.00
    Unit price per


System Specifications


Speed Rating (per unit)

AC3000

Number of Bands

Tri-band

Coverage

Up to 7500 sq. ft./696 m2

Wireless Standard

IEEE 802.11 b/g/n 2.4 GHz - 256QAM support

IEEE 802.11 a/n/ac 5 GHz (Wave 2) - 256QAM support

Wireless Transfer Rate
(Transmit & Receive)

1733Mbps* for 5 GHz (dedicated backhaul)

866Mbps* for 5 GHz

400Mbps* for 2.4 GHz

WiFi Features

Daisy Chain

Bridge Mode

MU-MIMO

Beamforming

Auto path selection

Single WiFi Name

AP Steering

Band Steering

Optional to separate 2.4G and 5G WiFi network

App


Ease of Use

Mobile App Support iOS 9 or later and Android 5.0 or later

Registration setup via social media or myZyxelCloud login

Quick Bluetooth setup

Find the best installation locations with graphical indication

Remote control Multy WiFi system

Multy WiFi system on-line/off-line status check

Automatic firmware check for new features

Diagnose network health via speed test

WiFi signal diagnose between mobile device to Multy

Internet access control

  • Device grouping: Organize multiple devices into group
  • Block or allow specific group based on time schedule
  • Flexible override internet access for specific device group
  • Support selection of 15-minute intervals in schedule settings



Guest WiFi setting

Push Notification

  • New Device Connected
  • New firmware available
  • Speed test result



Speed test

  • Mobile device to Internet



Support language

  • EN/DE/FR/CN/ES/IT/PT



Software, Security, Support


Software & Security

Firewall security (NAT)

IPv6 compatible

DMZ

Port Forwarding

UPnP

QoS

Network monitoring & diagnosis

Auto firmware update

Parental control

Support

Works with Amazon Alexa

Forum Community

Live-chat Support

Hardware Specifications


CPU

Qualcomm IPQ4019

Quad-core

Memory

512MB RAM

Flash

4GB eMMC

WAN

One 10/100/1000 Mbps Ethernet RJ-45 port with auto MDI/MDIX support

LAN

Three 10/100/1000 Mbps Ethernet RJ-45 ports with auto MDI/MDIX support

Antenna

9 Internal Antennas

USB port

1 USB 2.0 port

Bluetooth

BLE 4.1

LED indicator

Status indication/ Auto dimming

Button

Reset

Power

12VDC, 3A

Power consumption

25 watt

Physical Specifications (per unit)


Item dimensions
(WxDxH)

236 x 178 x 51.5 mm (9.29”x 7.01”x 2.03”)

Item weight

890 g (1.96 lb.)

Packing dimensions
(WxDxH)

339 x 71 x 215 mm (13.35”x 2.8”x 8.46”)

Packing weight

1790 g (3.95 lb.)

Environment Specifications


Operating environment

Temperature
0°C to 40°C/32°F to 104°F

Humidity
10% to 90% (Non-condensing)

Storage environment

Temperature
-30°C to 70°C/-22°F to 158°F

Humidity
10% to 95% (Non-condensing)

Certifications


Safety

CE-LVD/BSMI

EMC

CE, FCC/BSMI
