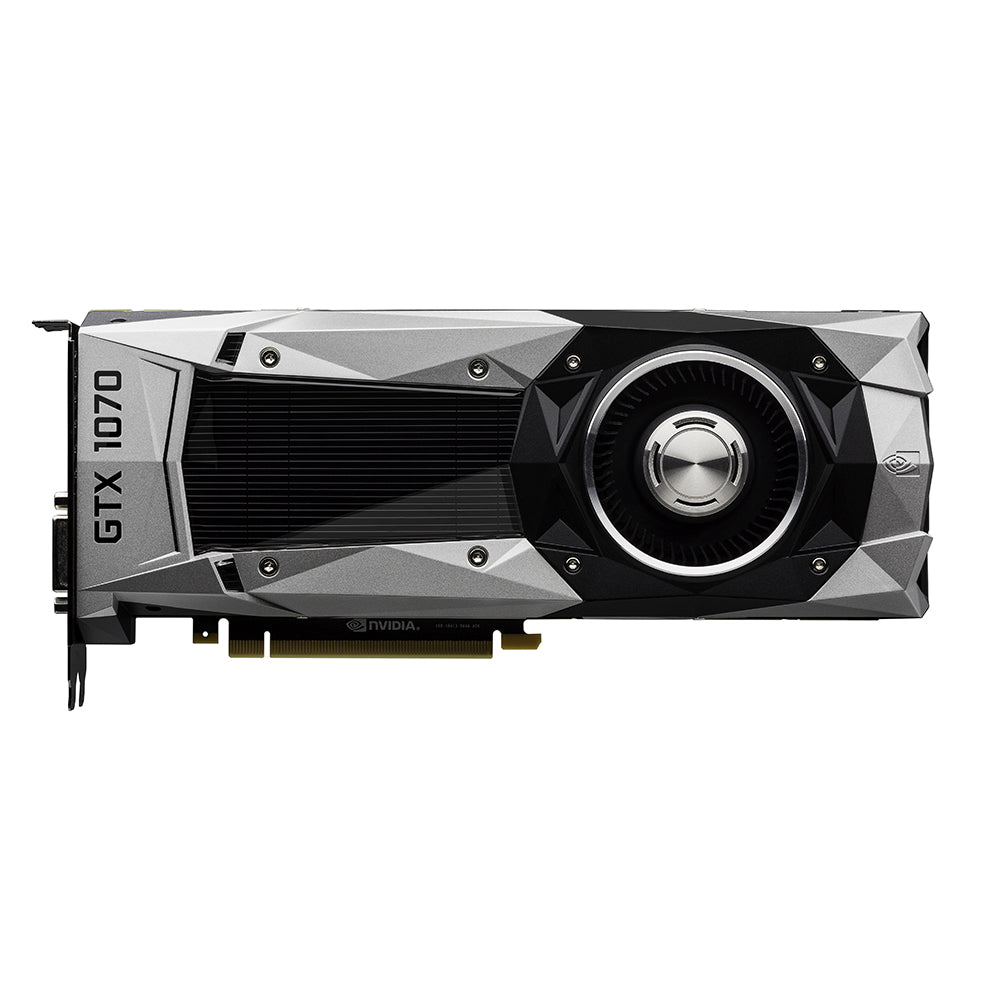

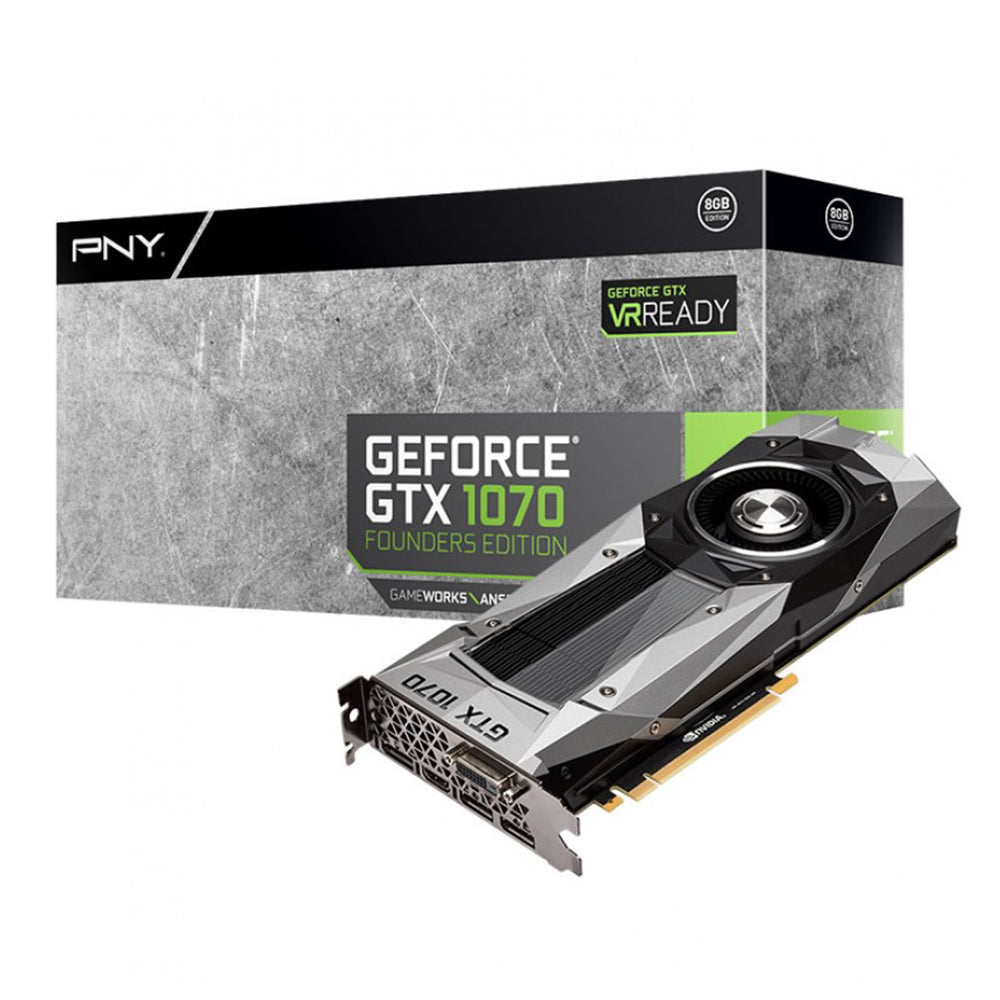

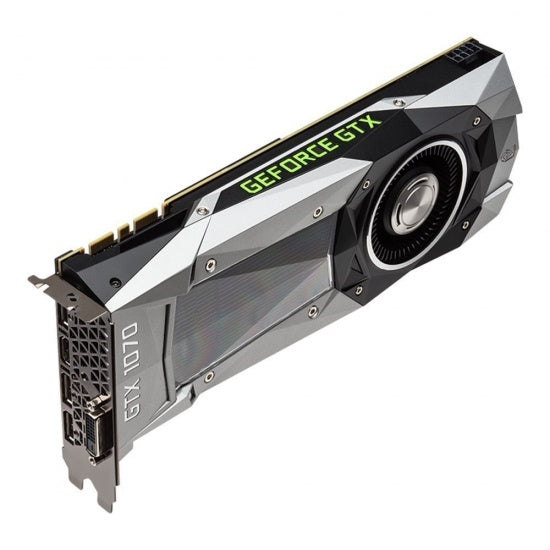

PNY Geforce GTX1070 Founders Edition
Overview
GAMING PERFECTED
Take on today’s challenging, graphics-intensive games without missing a beat. The PNY GeForce® GTX 1070 graphics card delivers the incredible speed and power of NVIDIA Pascal™ — the most advanced GPU ever created — for truly revolutionary gaming and VR performance.
This advanced graphics card is created with ultra-fast FinFET technology and supports DirectX 12 features to deliver fast, smooth, power-efficient gaming experiences. Plus, it balances sleek angles and thermals for a cooler design — both inside and out.
Get up to 3X faster performance in AAA and immersive VR Ready games than with previous-generation GPUs. And bring more realism to every game with NVIDIA GameWorks™ technologies that offer a true cinematic experience and amazing new image-capture to share your game.
KEY FEATURES
- Simultaneous Multi-Projection
- VR Ready
- NVIDIA Ansel Support
- NVIDIA SLI® w/ HB Bridge Support
- NVIDIA G-SYNC™
- NVIDIA GameStream™
- NVIDIA GPU Boost™ 3.0
- Microsoft® DirectX® 12 Support
- Vulkan API Support
- Open GL 4.5 Support
- PCI Express 3.0
- Max Digital Resolution - 7680x4320@60Hz1

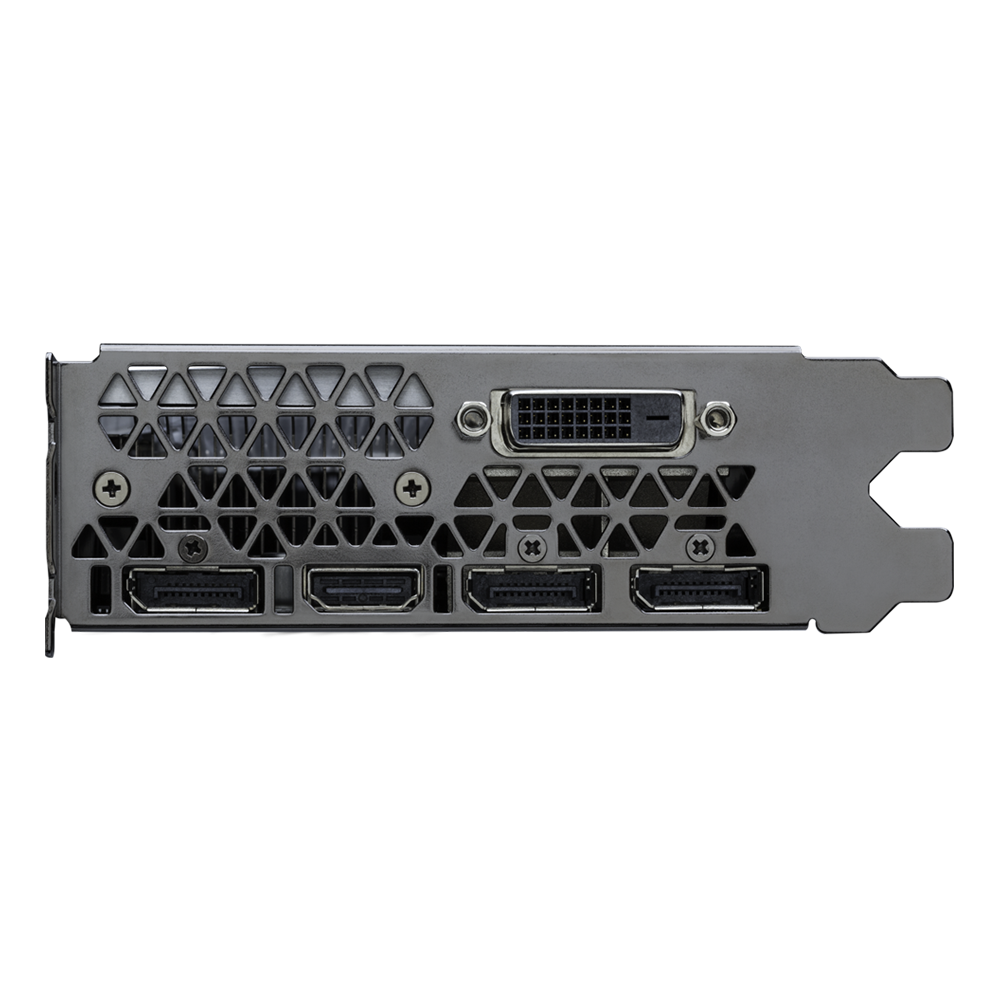

- Display Connectors
- 3x DisplayPort 1.4
- HDMI 2.0b
- DL-DVI
MINIMUM SYSTEM REQUIREMENTS
- PCI Express-compliant motherboard with one double-width ×16 graphics slot
- One 8-pin PCI Express supplementary power connector
- Minimum 500 W or greater system power supply
- 300MB of available hard-disk space
- 2GB system memory (4GB or higher recommended)
- Windows 7-10, Linux, FreeBSDx86
- DVD-ROM drive and Internet connection
Features
CUDA Cores | 1920 |
Core Speed | 1506 MHz |
Boost Clock | 1683 MHZ |
Memory Clock | 8 GBPS |
Memory Amount | 8GB GDDR5 |
Memory Interface | 256-bit |
Memory Bandwidth | 320 GBPS |
TDP | 150W |
SLI | SLI HB Bridge Supported |
Multi-Screen | Yes |
Max Resolution | 7680 × 4320 @60Hz (Digital) |
Power Input | One 8-PIN |
Bus Type | PCI-Express 3.0 x 16 |
Card Dimensions | 4.409" x 10.5" x 1.653" |
Width | Dual Slot |
Box Dimensions | 12.5" x 6.4" x 2.7" |
Virtual Reality Ready | Yes |
