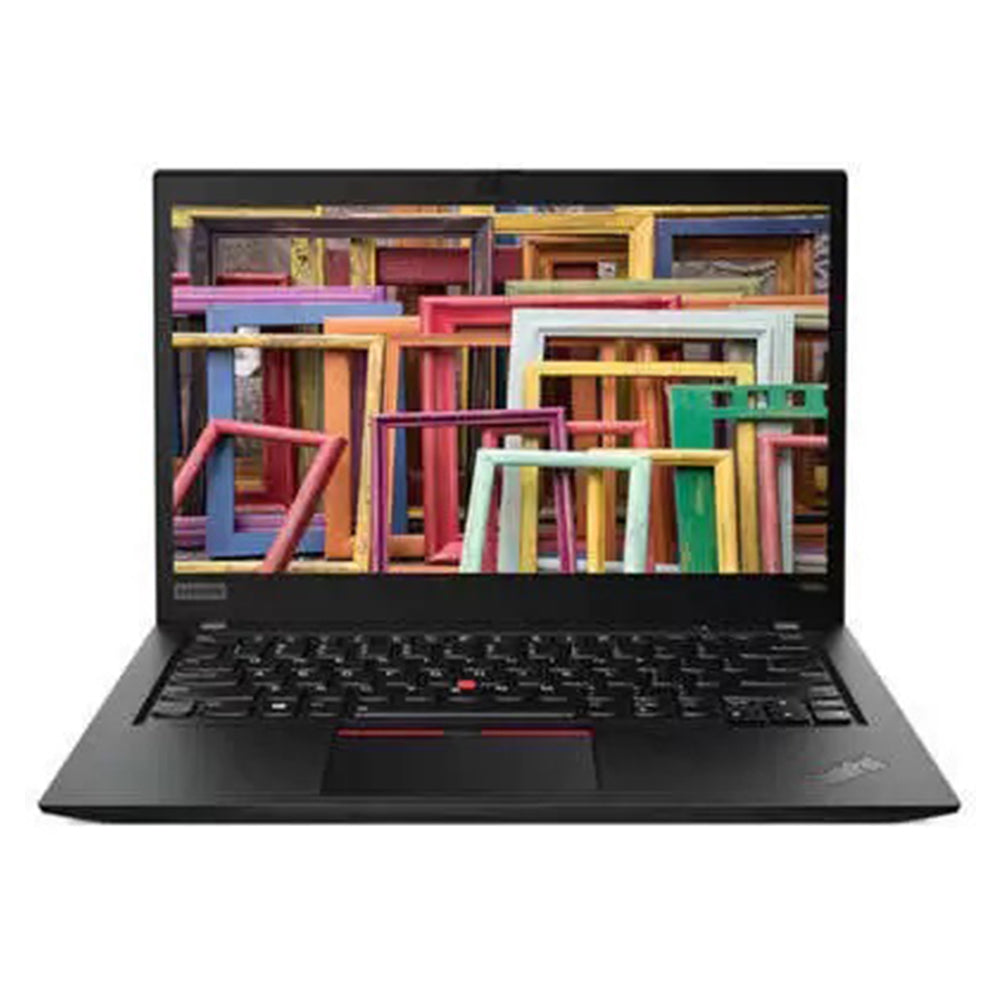

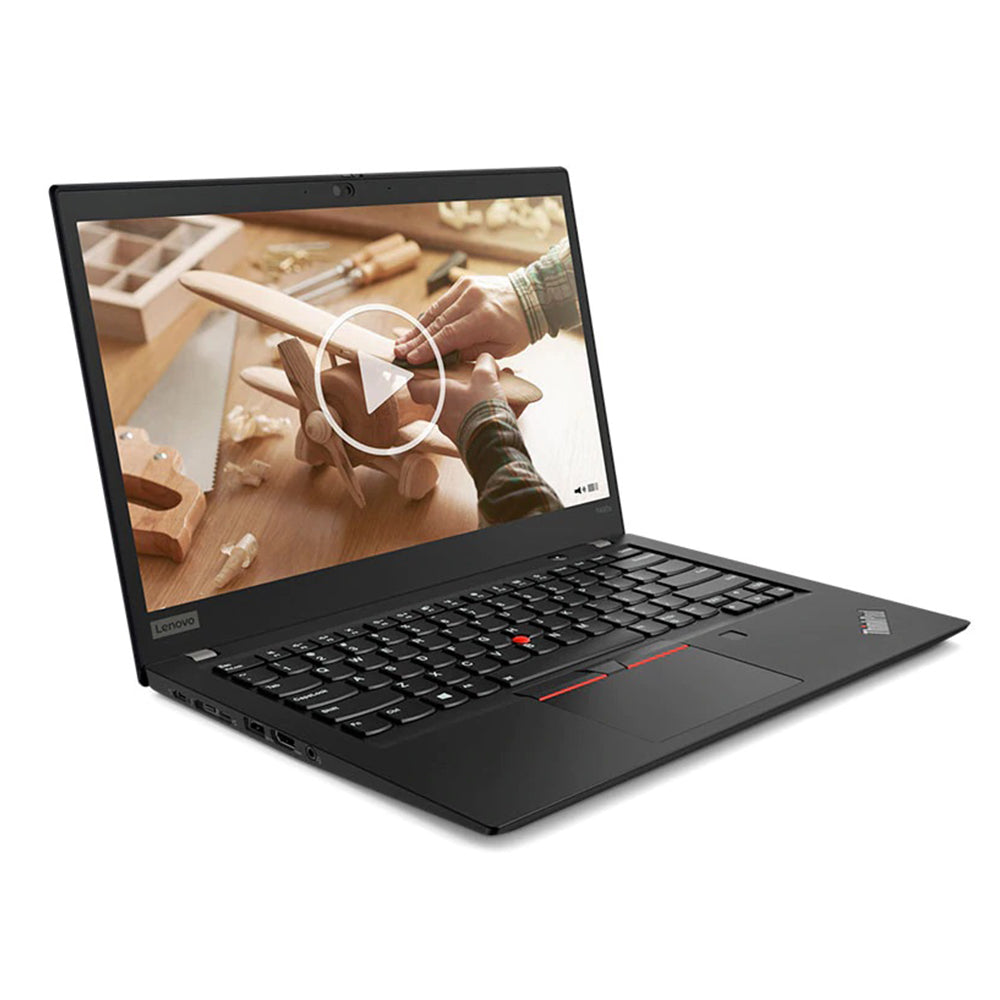

Lenovo T490s | Core i7 | 20NY0026PH
| Processor | Intel Core i7-8565U (4C / 8T, 1.8 / 4.6GHz, 8MB) |
| Display | 14.0 FHD IPS |
| Cache | 8 MB |
| Memory (Std) | 8GB Soldered DDR4-2400 /soldered to systemboard, no sockets |
| SSD | 1TB SSD M.2 2280 PCIe NVMe Opal2 |
| Optical Drive | No |
| Operating System | Windows 10 PRO |
| Graphics | INTEGRATED_GRAPHICS |
| Communcations | Intel Wireless-AC 9560, Wi-Fi 2x2 802.11ac + Bluetooth 5.0 |
| Audio | HD Audio, Realtek ALC3287 codec / stereo speakers, 1W x 2, Dolby Audio Premium / dual array far-field microphone (optional for special bid model), headphone / microphone combo jack |
| Pointing Device | TrackPoint pointing device and buttonless Mylar surface multi-touch touchpad |
| Ports | MicroSD card reader Two USB 3.1 Gen 1 (one Always On), one USB 3.1 Type-C Gen 1 (with the function of Power Delivery and DisplayPort), one USB 3.1 Type-C Gen 2 / Thunderbolt 3 (with the function of PD and DP), HDMI 1.4b, Ethernet extension connector, nano-SIM card slot (WWAN models), headphone / microphone combo jack, optional smart card reader, microSD card reader, side docking connector, security keyhole |
| Warranty | Three (3) years Premier Support |
| Battery | Integrated Li-ion 57Wh battery, supports Rapid Charge (charge up to 80% in 1hr) with 65W AC adapter |
| Weight | 1.35kg |
| Height | 16.7mm |
| Width | 329.0mm |
| Depth | 226.15mm |
| Carrying Case |
