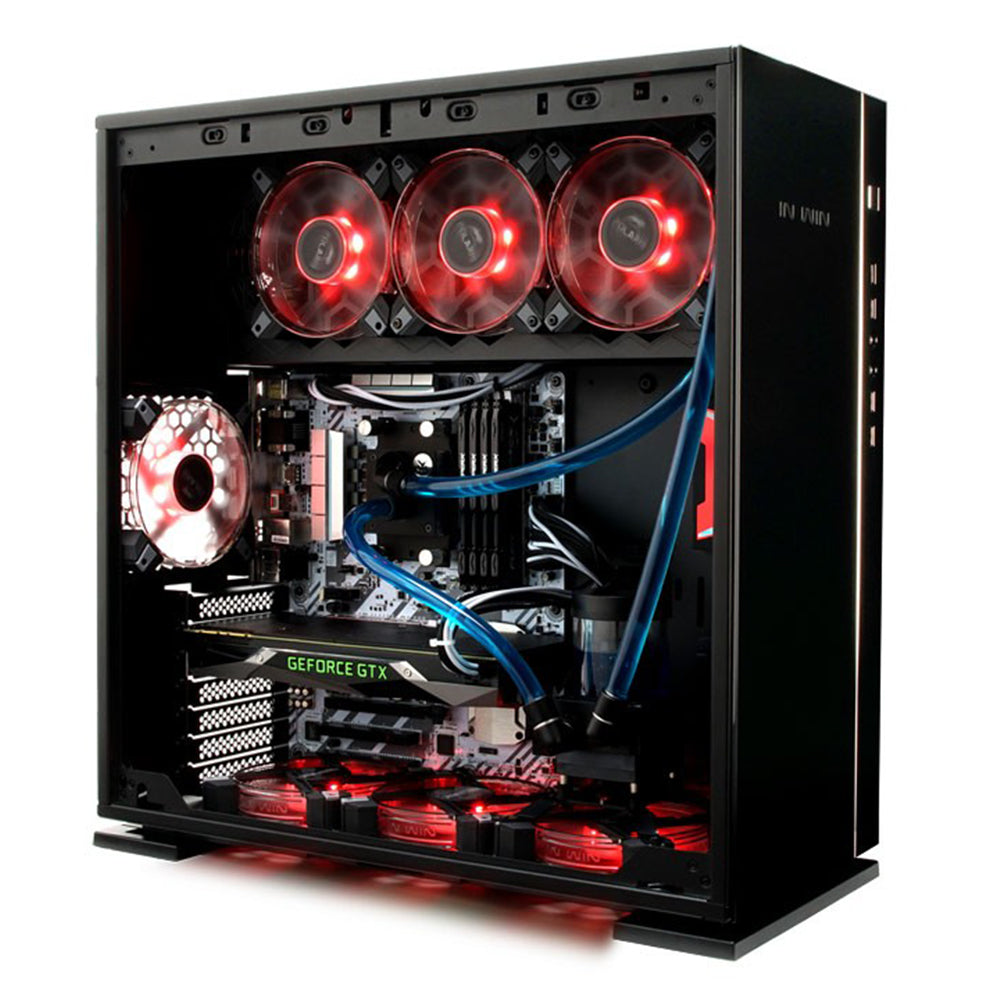

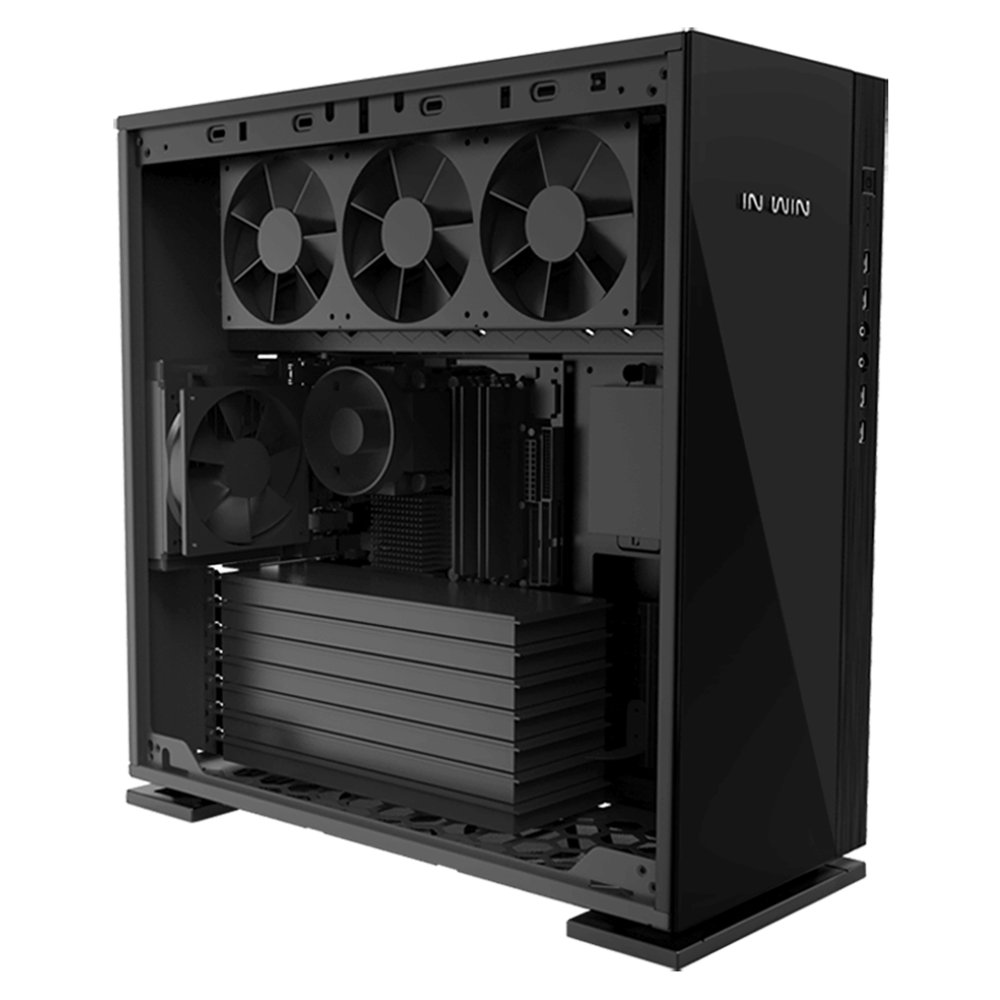

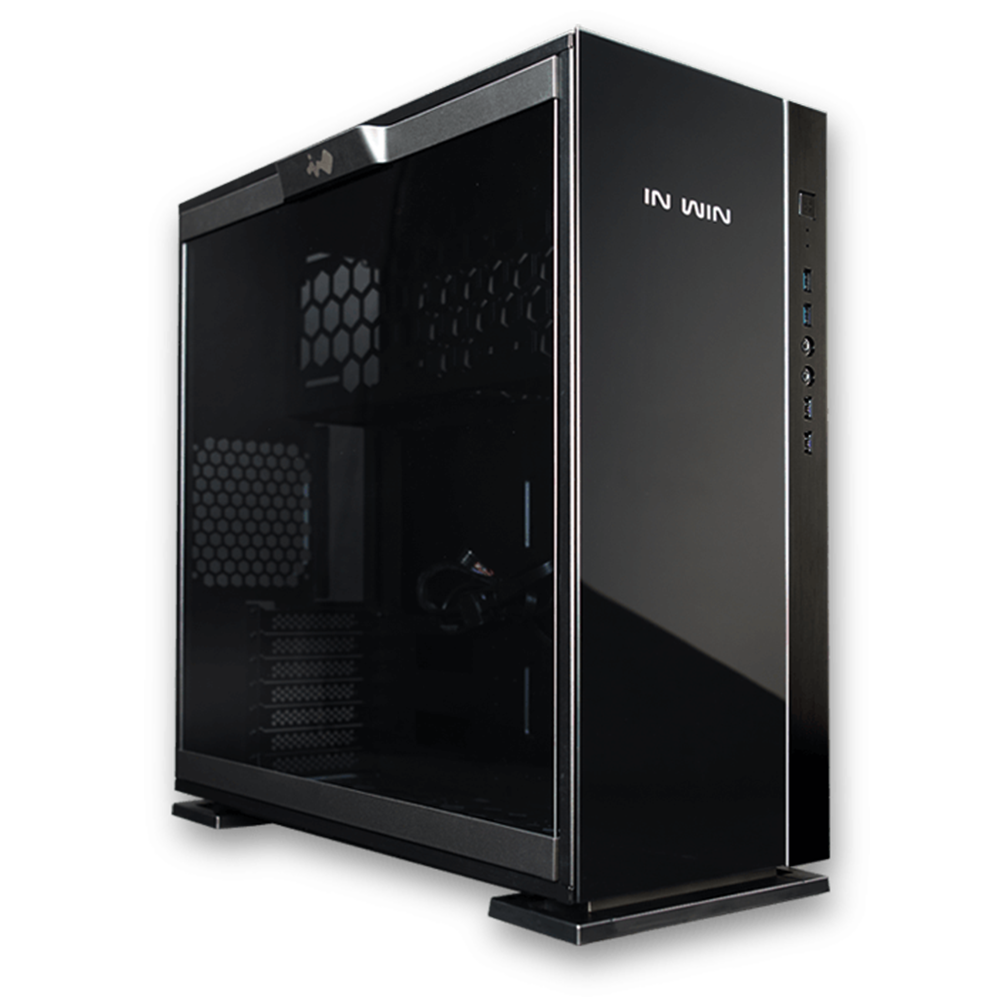

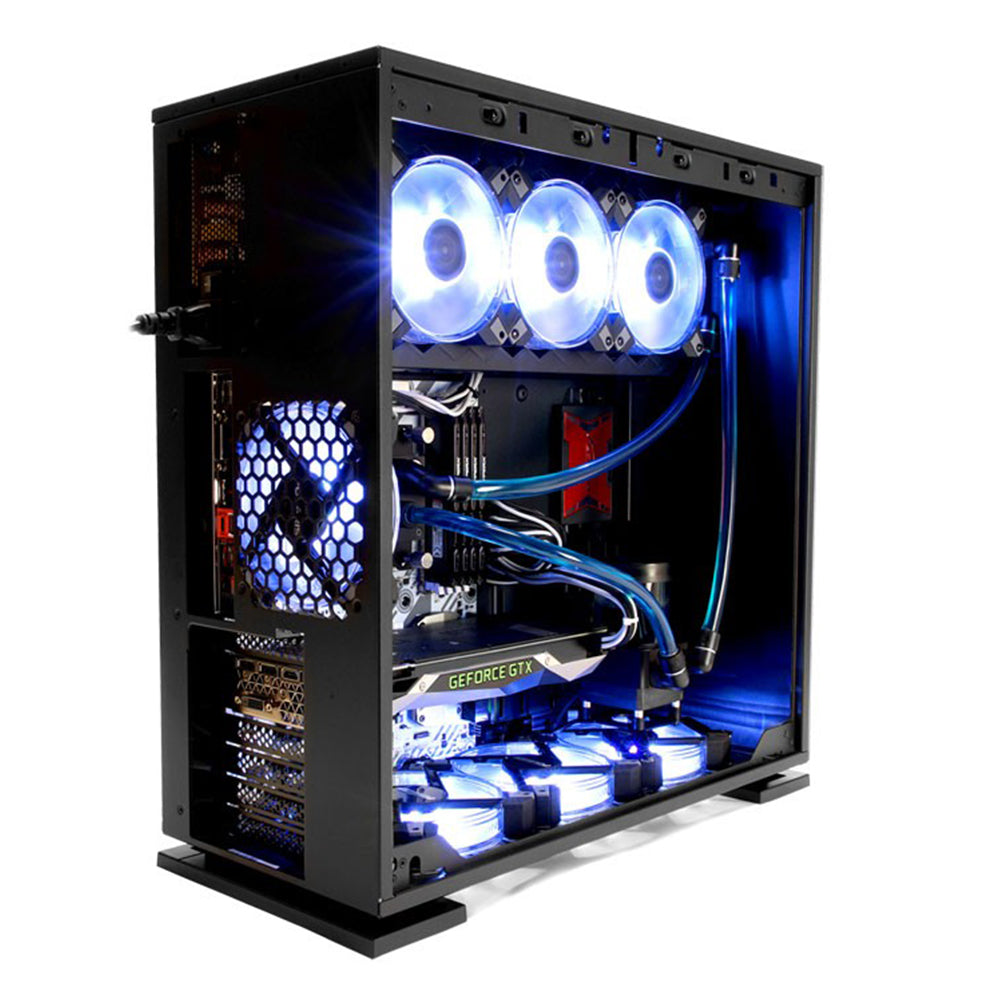

InWin 305 System Unit Chassis
|
Model
|
305
|
|
| Case Size | Mid Tower | |
| Material | SECC, Tempered Glass | |
|
M/B Form Factor
|
E-ATX | |
| ATX | ● | |
| Micro-ATX | ● | |
| Mini-ITX | ● | |
|
External Drive Bays
|
5.25" | 0 |
| 3.5" | ||
|
Internal Drive Bays
|
5.25" | |
| 3.5" | 2 | |
| 3.5"/2.5" | ||
| 2.5" | 3 | |
| Power Supply | ATX 12V / PSII | ● Length: Up to 200mm |
| USB 3.0 / 2.0 | 2/2 | |
| HD Audio | ● | |
|
Thermal Solution
|
Air Cooling | Top: 120mm Fan x 3 Rear: 120mm Fan x 1 Bottom: 120mm Fan x 3 |
| Water Cooling | 360/240/120mm Top Radiatorc 120mm Rear Radiator |
|
| CPU Heatsink | Supports up to 163mm in height | |
| I/O Expansion Slots | 7 (Length: Up to 350mm, Height: Up to 160mm) |
|
| Dimension(HxWxD) | 500 x 215 x 480mm (19.6" x 8.4" x 18.8") |
|
| Remarks | ||
