Hikvision ECO Series Digital Video Recorder (HGHI = 1mp; HQHI = 2mp; HUHI = 5mp)

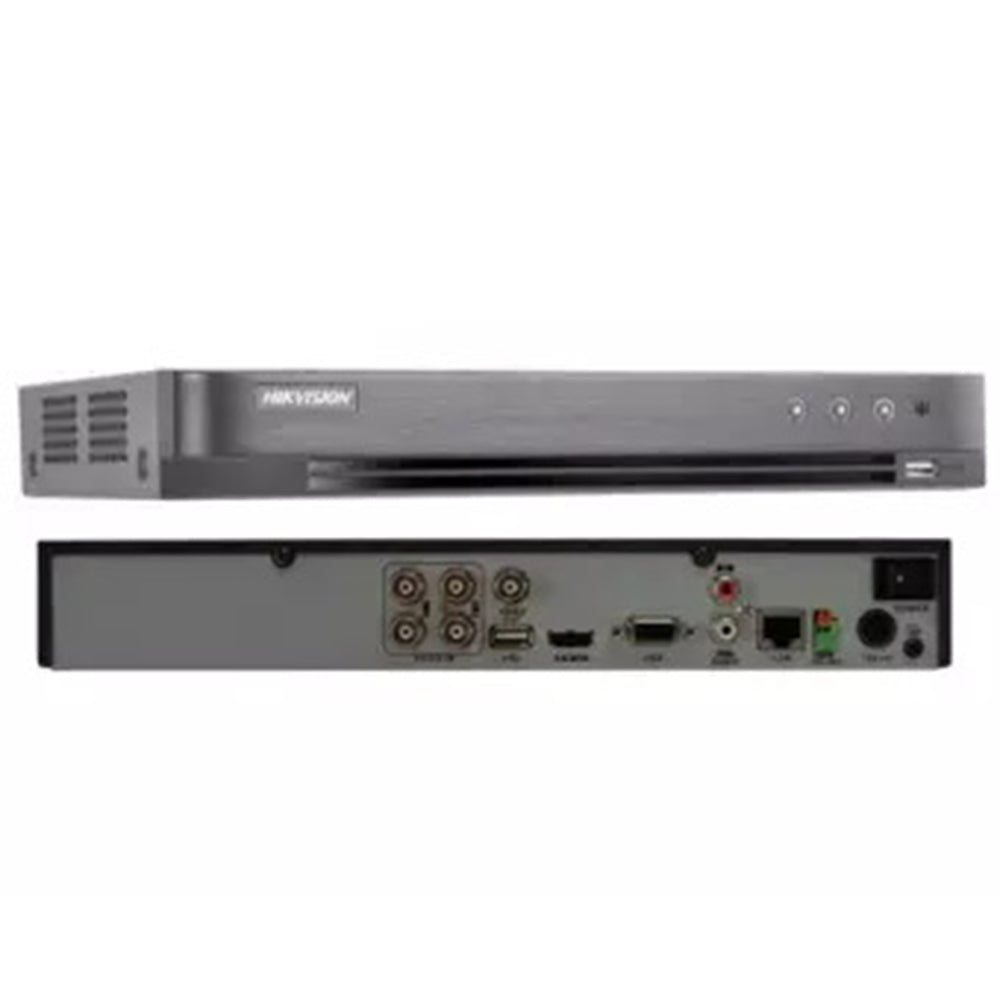

DS-7204HQHI-K1/E

• 4 Turbo HD/CVI / AHD / CVBS self-adaptive interfaces input, 4-ch HDTVI coaxial video&audio input,
• 1-ch RCA audio input, 2-ch IP video input(up to 6-ch IP), H.265/H.265+ compression, 1 SATA
• interface,CH01: 3MP @ 15fps, CH01-04:1920×1080P @15 fps, 4MP Lite@15fps/ch, support CVBS
• output, 260 1U case

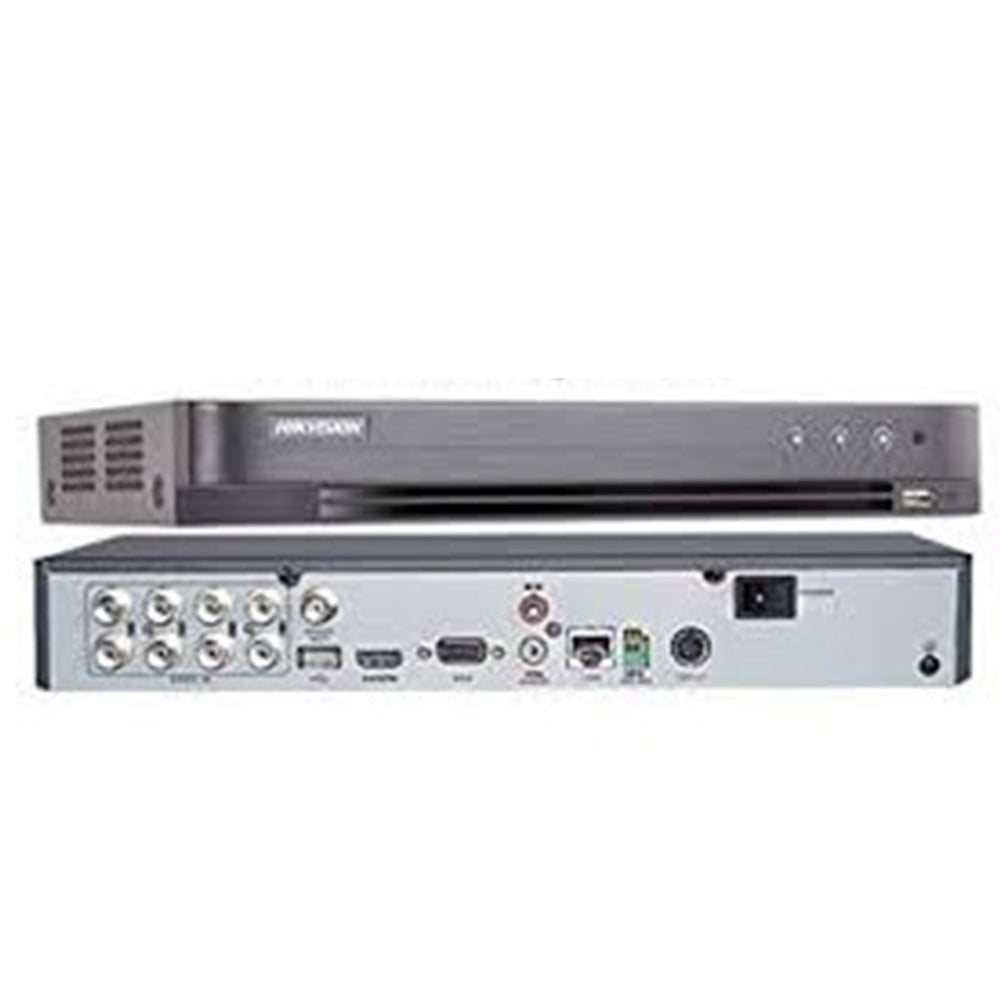

DS-7208HQHI-K1/E

• 8 Turbo HD/CVI / AHD / CVBS self-adaptive interfaces input, 8-ch HDTVI coaxial video&audio input,
• 1-ch RCA audio input, 4-ch IP video input(up to 12-ch IP), H.265/H.265+ compression, 1 SATA
• interface,CH01 & 02: 3MP @ 15fps, CH01-08:1920×1080P @15 fps, 4MP Lite@15fps/ch, 260 1U case

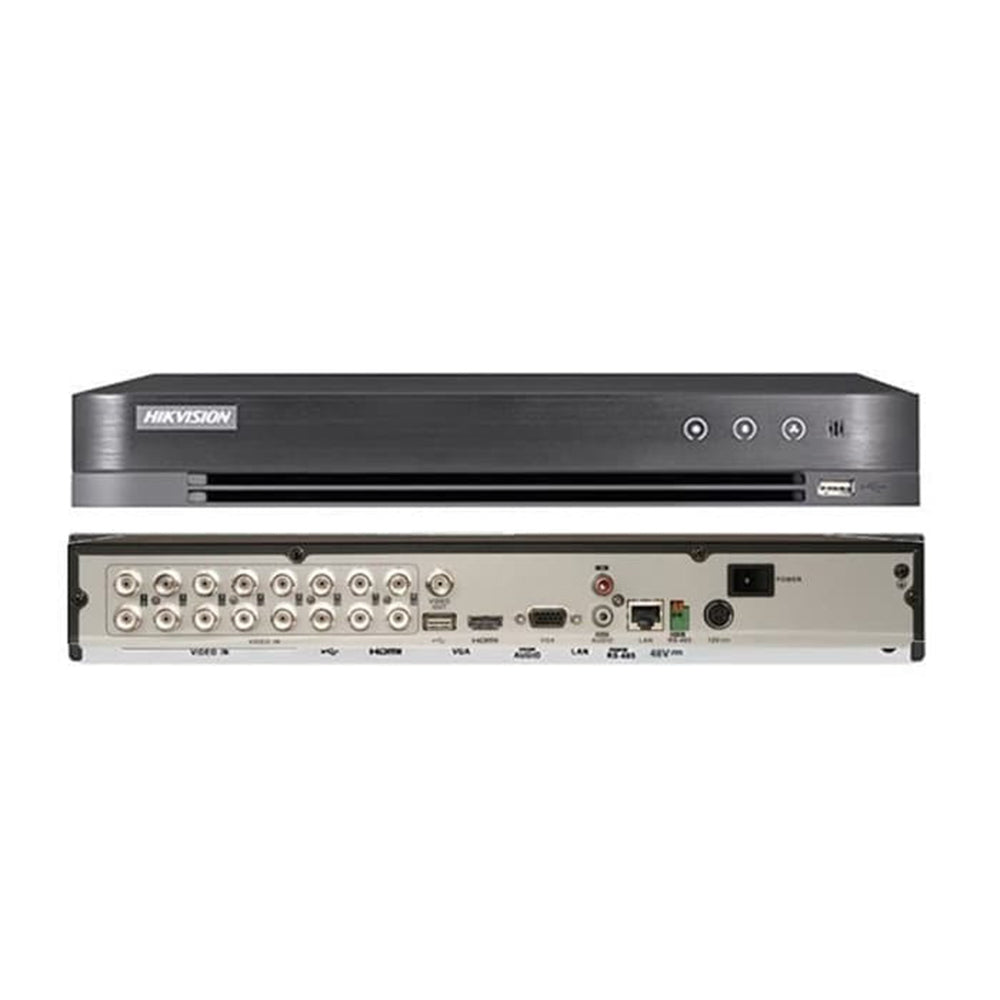

DS-7216HQHI-K1/E

• 16 Turbo HD/CVI / AHD / CVBS self-adaptive interfaces input, 16-ch HDTVI coaxial video&audio
• input, 1-ch RCA audio input, 8-ch IP video input(up to 24-ch IP), H.265/H.265+ compression, 1 SATA
• interface,CH01-04: 3MP @ 15fps, CH01-16:1920×1080P @15 fps, 4MP Lite@15fps/ch, 4K UHD
• output, 260 1U case
