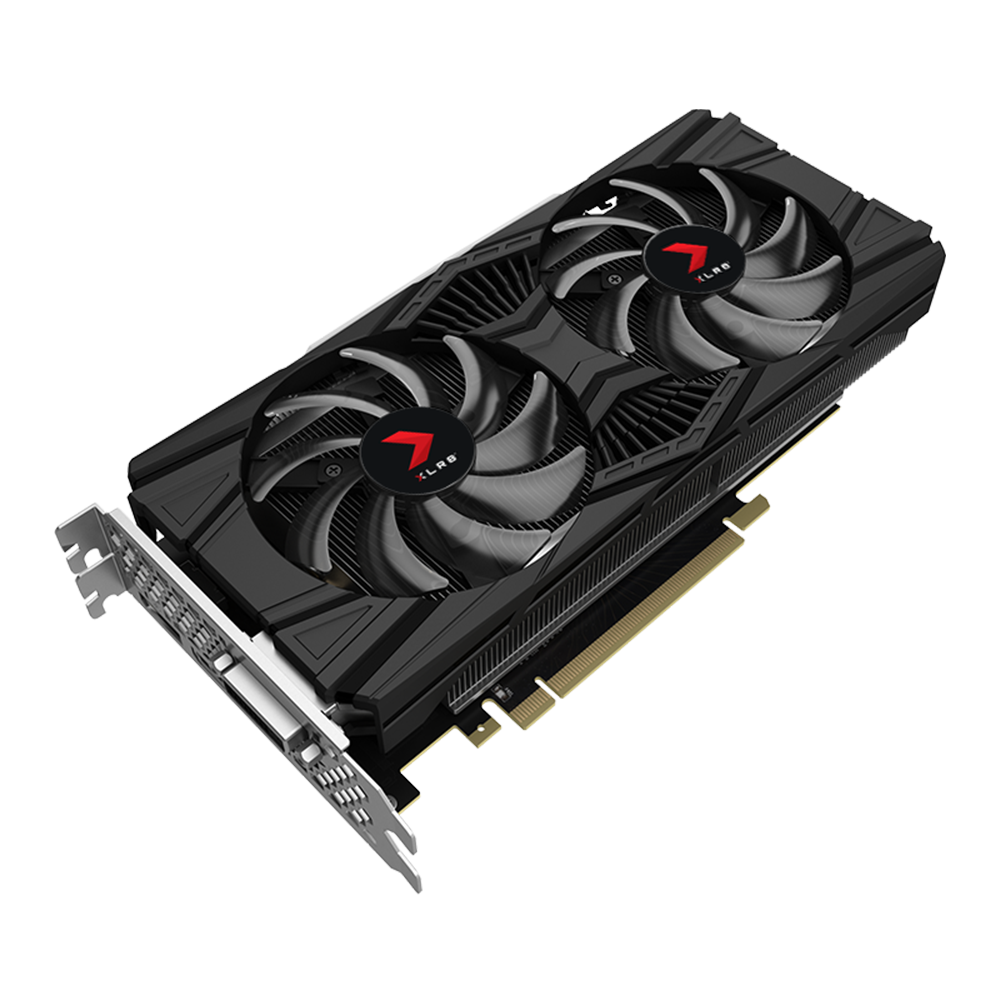

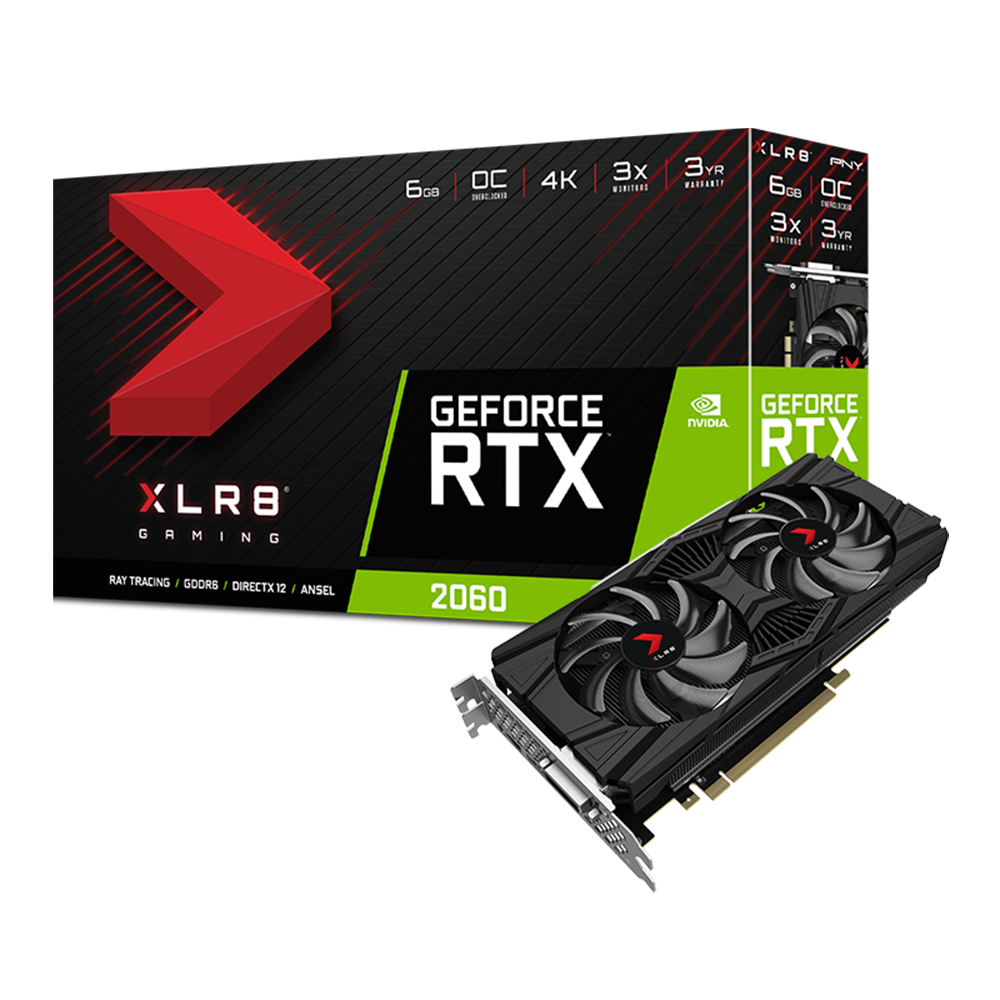

GeForce RTX™ 2060 XLR8 Gaming Overclocked Edition
Overview
GEFORCE RTX 2060, RTX. It’s On.
The GeForce RTX™ 2060 is powered by the NVIDIA Turing™ architecture, bringing incredible performance and the power of real-time ray tracing and AI to the latest games and every gamer. RTX. It’s On.
GeForce RTX graphics cards are powered by the Turing GPU architecture and the all-new RTX platform. This gives you up to 6X the performance of previous-generation graphics cards and brings the power of real-time ray tracing and AI to your favorite games.
When it comes to next-gen gaming, it’s all about realism. GeForce RTX 2060 is light years ahead of other graphics cards.
KEY FEATURES
- Ray Tracing Cores
- NVIDIA GeForce Experience™
- NVIDIA Ansel
- NVIDIA Highlights
- NVIDIA G-SYNC® Compatible
- Game Ready Drivers
- Microsoft® DirectX® 12 API, Vulkan API, OpenGL 4/5
- DisplayPort 1.4, HDMI 2.0b, DVI-D
- HDCP 2.2
- NVIDIA GPU Boost™
- VR Ready
SYSTEM REQUIREMENTS
- PCI Express-compliant motherboard with one dual-width x16 graphics slot
- one 8-pin supplementary power connectors
- 500 W or greater system power supply2
- 1.5GB available hard-disk space
- 8GB system memory (16GB or higher recommended)
- Microsoft Windows 10 (April 2018 Update or later), Windows 7 64-bit, Linux 64-bit
- Internet connection3
Product Specifications
'PNY Part Number | VCG20606DFPPB-O |
UPC Code | 751492624624 |
CUDA Cores | 1920 |
Clock Speed | 1365 MHz |
Boost Speed | 1830 MHz |
Memory Speed (Gbps) | 14 |
Memory Size | 6GB GDDR6 |
Memory Interface | 192-bit |
Memory Bandwidth (GB/sec) | 448 |
TDP | 190 W |
NVLink | Not Supported |
Outputs | DisplayPort 1.4, HDMI 2.0b, DVI-D |
Multi-Screen | Yes |
Resolution | 7680 × 4320 @60Hz (Digital)1 |
Power Input | One 8-pin |
Bus Type | PCI-Express 3.0 ×16 |
Card Dimensions | 1.57” × 9.25” × 4.41”; Dual-Slot |
Box Dimensions | 12.39” × 2.26” × 7.13” |
