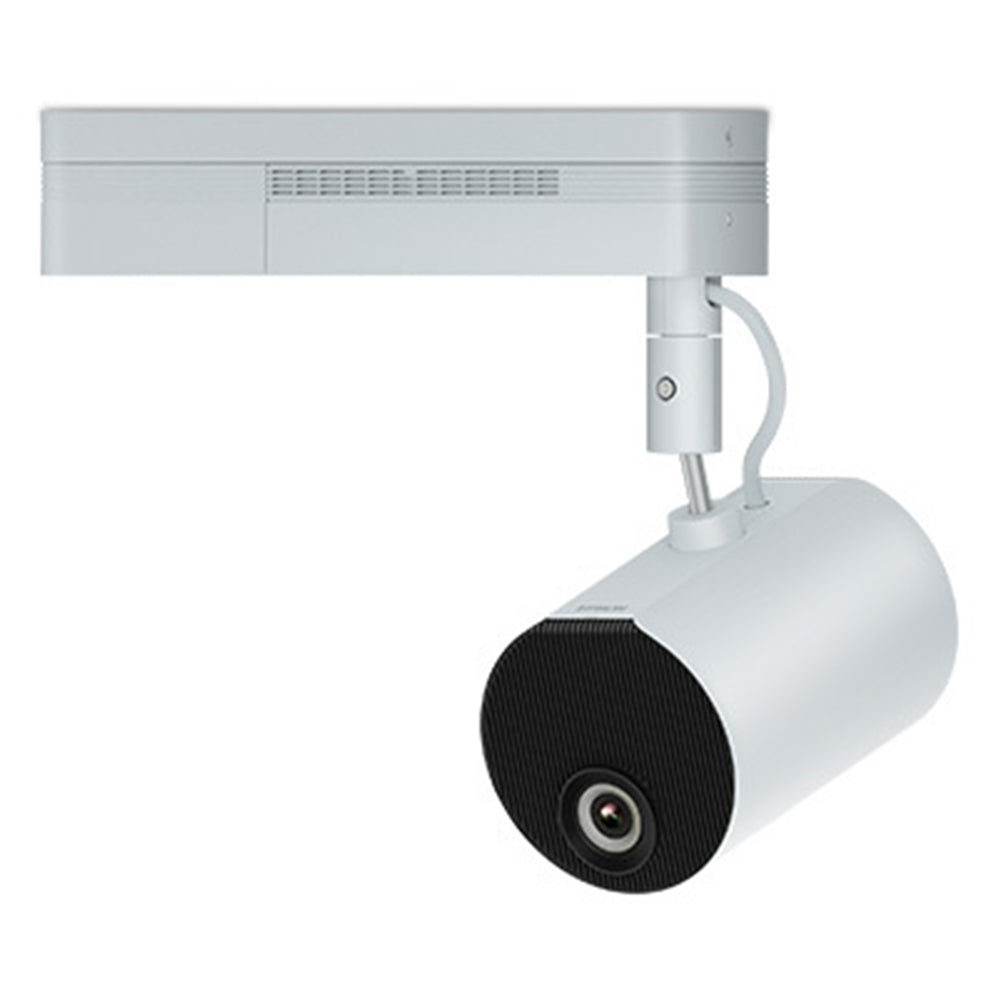

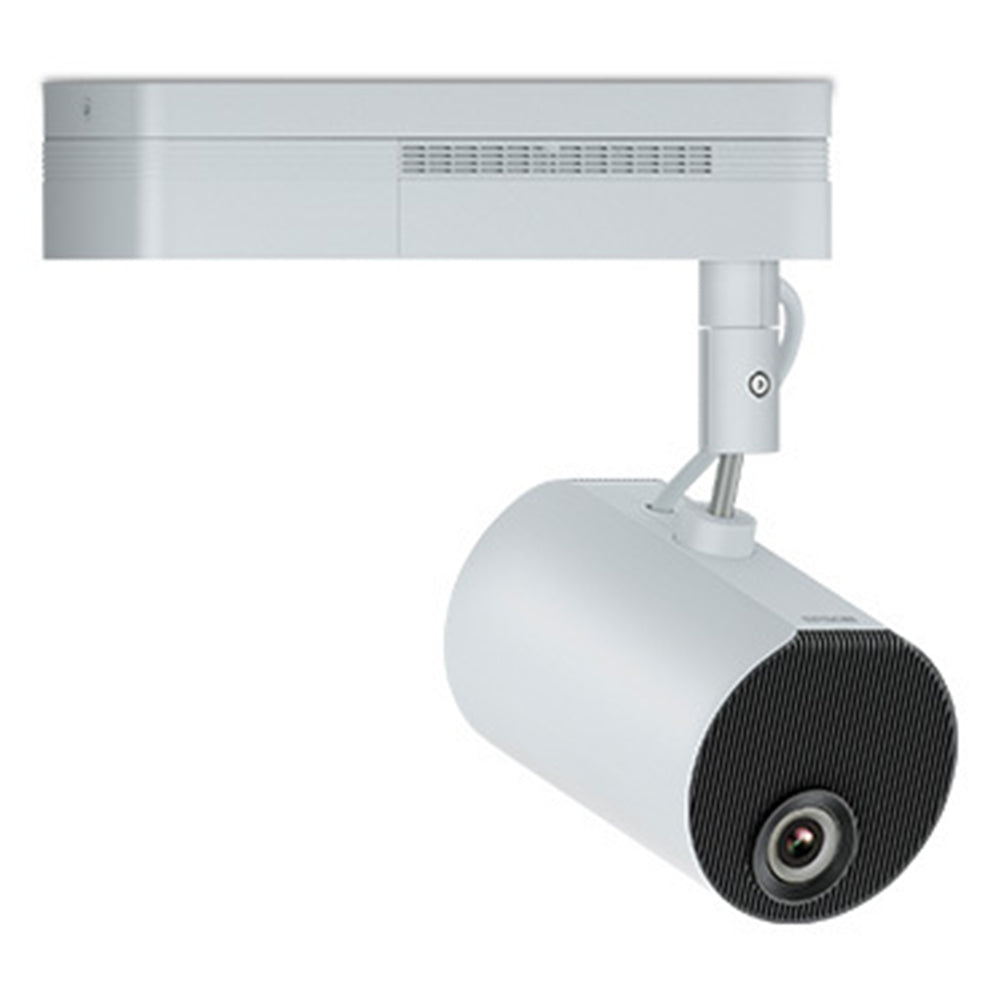

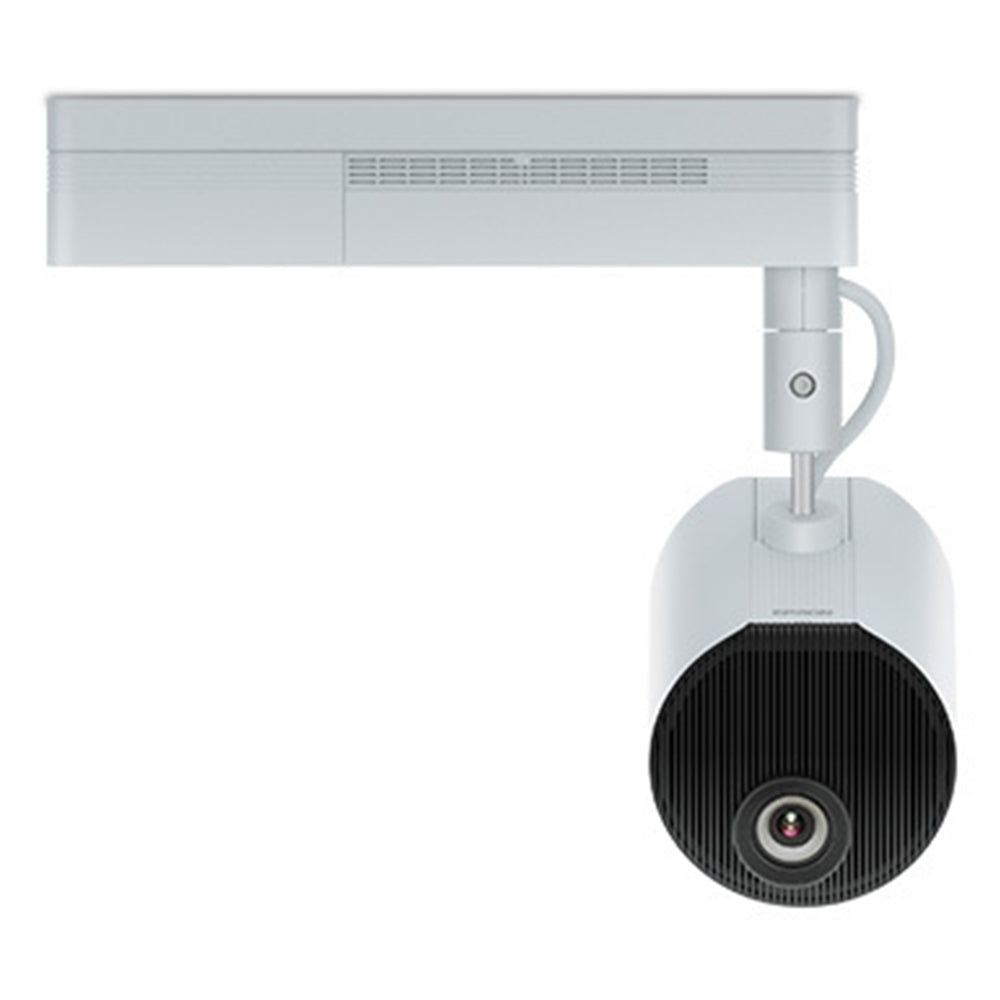

Epson LightScene EV-100 Accent Lighting 3LCD Laser Projector

  • ₱135,000.00
    Unit price per

The dynamic laser projector for digital art and signage.

Create stunning visual displays and immersive environments with the LightScene EV-100, the cutting-edge digital signage solution from Epson. A convergence of lighting and display technology, LightScene laser projectors captivate audiences by simultaneously illuminating and projecting on virtually any surface or material, unleashing dynamic, experiential content for digital art, commercial signage and décor applications. Designed to blend in discreetly to any setting — from retail, hospitality and event spaces to showrooms and museums — LightScene EV-100 offers a sleek, white spotlight design, with an array of configuration, mounting and programming options.


  • Laser projector for digital art and signage
  • Seamlessly blends into virtually any environment
  • Up to 20,000 hours of virtually maintenance-free operation1
  • 360-degree mounting: floors, walls or ceilings
  • Remote management and control tools
  • Best New Award Overall

    Integrated lighting and digital display — project dynamic, experiential content to engage audiences in retail, hospitality and event spaces, showrooms and museums

    Create head-turning digital signage — illuminate and project on virtually any surface or material, for digital art, commercial signage and décor applications

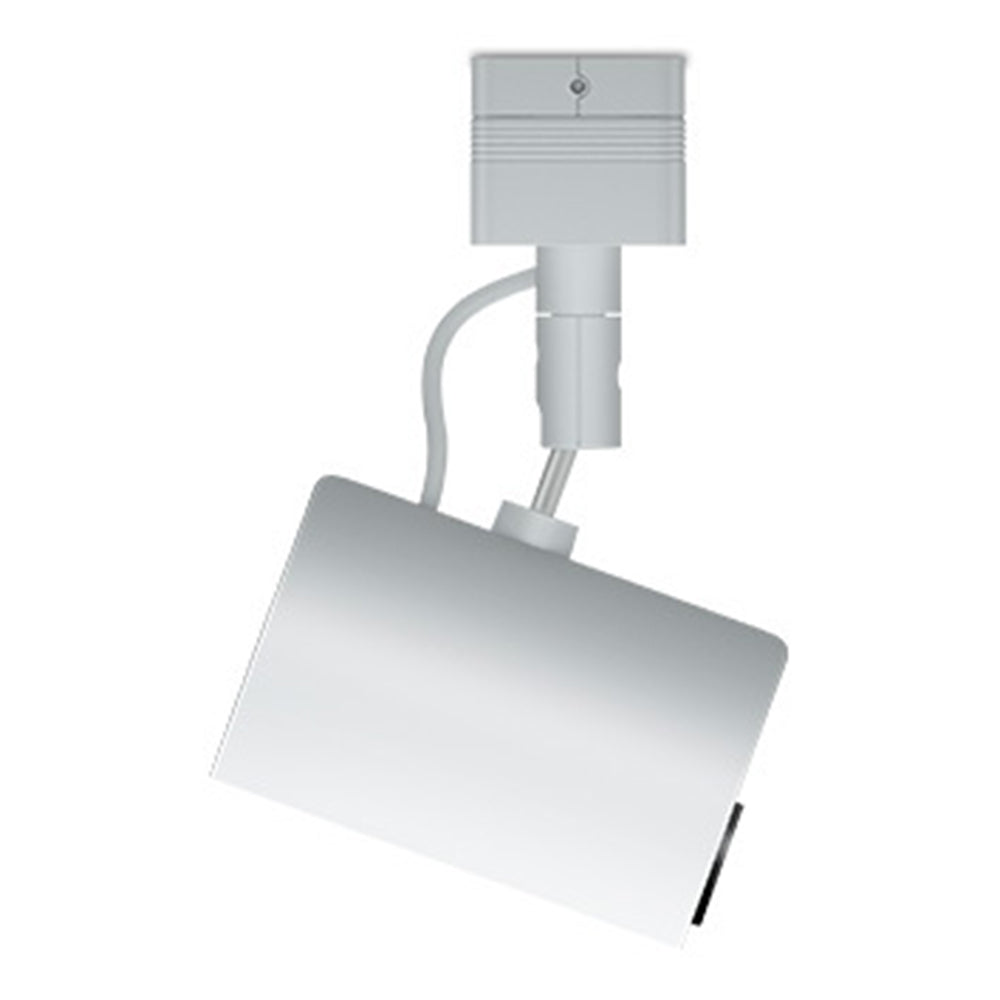

    Blends in discreetly — sleek, white spotlight design easily blends into its surroundings, offering vertical and horizontal rotation, with flexible mounting on tracks, floors, walls or ceilings

    Breakthrough laser technology — provides up to 20,000 hours of virtually maintenance-free operation1, plus a sealed optical engine, for amazing image quality matched by outstanding performance

    Robust management and control tools — via Epson’s Web-based application or over the network with Crestron®, Art-Net and more

    Scalable, for an array of applications — install multiple LightScene projectors and utilize Edge Blending technology for versatile, breathtaking displays

    Easily programmable — includes templates, effects, color filters and customizable options; playlist and playback function allows for seamless content management for single or multiple LightScene projectors

    Flexible positioning — 1.58x powered optical zoom, plus powered focus, allows the projector to be installed in both large and small spaces

    Expansive connectivity — HDMI®, wired and wireless LAN, and SD card slot2 for direct content storage when needed

    Bright visual display system — 2,000 lumens equal color and white brightness for vibrant, rich color3

    Eco Features
    • RoHS compliant
    • Recyclable product

    Better Products for a Better FutureTM
    For more information on Epson's environmental programmes, visit

    What's In The Box:


    Power Cable: 3m
    Remote Control: Yes, with 2x AA Battery
    Direct Mount Unit Set: Attached
    Cable Cover: Yes
    HDMI Cable Clamp: x2


    Projection Technology:

    Projection Technology:RGB liquid crystal shutter projection system

    Projectors Facets:

    Resolution, Projectors Facets:WXGAContrast Ratio, Projectors Facets:Over 2,500,000:1Brightness Range Lumens, Projectors Facets:2000Laser / Lamp, Projectors Facets:LaserFeatures, Projectors Facets:Wifi
    Edge Blending
    Quick Corner


    Network:Wired LAN: RJ45 x 1 (100Mbps)

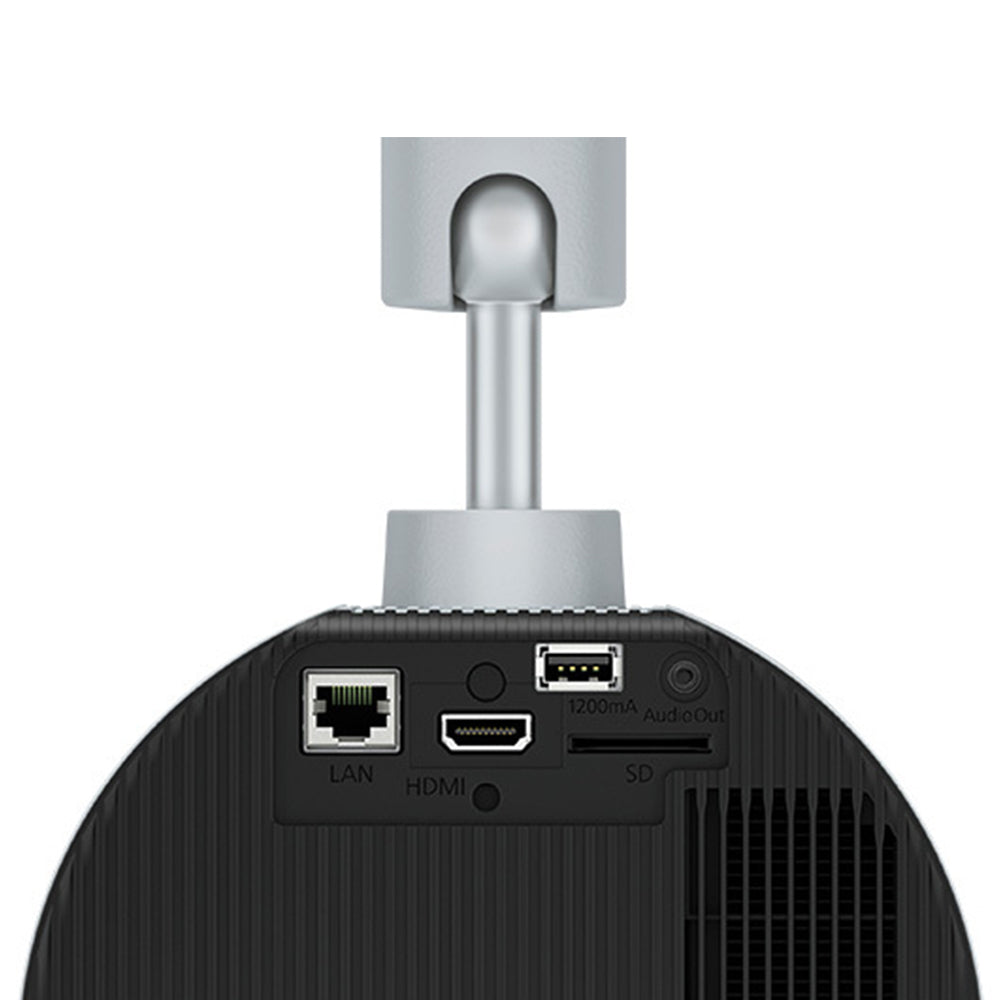

    Wireless: Built-inMemory I/O:SD Card: 1 (SDHC, up to 32GB, more than Class 10)Digital Input:HDMI: 1Audio Output:Stereo Mini Jack: 1USB Input:USB Type A: 1 (For 1200mA power supply)
    USB Type B: 1 (For firmware update)

    Wireless Specifications (Wireless LAN: Built-in):

    Supported Speed for Each Mode:IEEE 802.11b (2.4GHz): 11 Mbps*
    IEEE 802.11g (2.4GHz): 54 Mbps*
    IEEE 802.11n (2.4GHz): 130 Mbps*Wireless LAN Security:Quick Mode: WPA2-PSK
    Advanced Mode: WPA/WPA2-PSK, WPA/WPA2-EAP
    Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast, LEAPSupported Connection Mode:Infrastructure, Access Point

    Geometric Correction:

    Vertical/Horizontal Keystone:±45° / ±40°Quick Corner:Yes

    Operating Temperature:

    Operating Temperature:5 °C to 40 °C (41 °F to 104 °F)
    (20% - 80% humidity, No condensation)

    Operating Altitude:

    Operating Altitude:0 m to 3048 m (0 ft to 10000 ft)
    (over 1500 m / 4921 ft : with High altitude mode)

    Start-Up Period:

    Start-Up Period:Less than 9 seconds
    Warm-up period: 30 seconds

    Cool Down Period:

    Cool Down Period:Instant off

    Direct Power On/Off:

    Direct Power On/Off:Yes / Yes

    Dimension Excluding Feet (W x H x D):

    Dimension Excluding Feet (W x H x D):Projection unit: Φ 175 x D260
    Power supply unit: 361 x 65 x 110 mm (without Cable Cover)


    Weight:Approx. 15.2 lbs. / 6.9kg (Main Unit and Direct Mount unit)

    Fan Noise:

    Fan Noise (Normal / Eco):34 / 22 dB

    Power Consumption (220 - 240V):

    Stand By (Network On / Off):2.0W / 0.30WLaser diode on (normal / quiet):170W / 118W


    White Light Output (Normal / Quiet / extended):2000lm / 1000lm / 1000lmColour Light Output:2000lmContrast Ratio:Over 2,500,000:1Colour Mode:Dynamic

    Specifications of Main Parts:

    LCD:Size: 0.59 inch (D8, C2 fine)
    Native resolution: WXGAProjection Lens:Type: Optical Zoom (Powered) / Focus (Powered)
    F-number: 1.51-1.92
    Focal Length: 18.2mm-28.4mm
    Zoom Ratio: 1 - 2.21 (Total)
    Zoom Ratio: 1 - 1.58 (Optical Zoom)
    Zoom Ratio: 1 - 1.40 (Digital Zoom)
    Throw Ratio: 1.38 - 2.19 (Wide to Tele)
    Type: Laser Diode
    Life (normal/quiet/extended): 20000hrs / 20000hrs / 30000hrsScreen Size (projected distance):30" to 150" (0.88 to 4.51 m) (Wide Zoom)
    30" to 150" (1.41 to 7.16 m) (Tele Zoom)
    60" screen 1.79m (Standard size)

    Power Supply Voltage:

    Power Supply Voltage:100 - 240 V AC +/- 10%, 50/60 Hz

    Contents Player:

    Playlist:YesTimetable (scheduled playlist):YesSD viewer:YesPlaylist Contents:Motion JPEG Movie (AVI), and Photo (JPEG, PNG, GIF, BMP)


    Options:(Floor Stand) White: ELPMB55W
    (Floor Stand) Black: ELPMB55B
