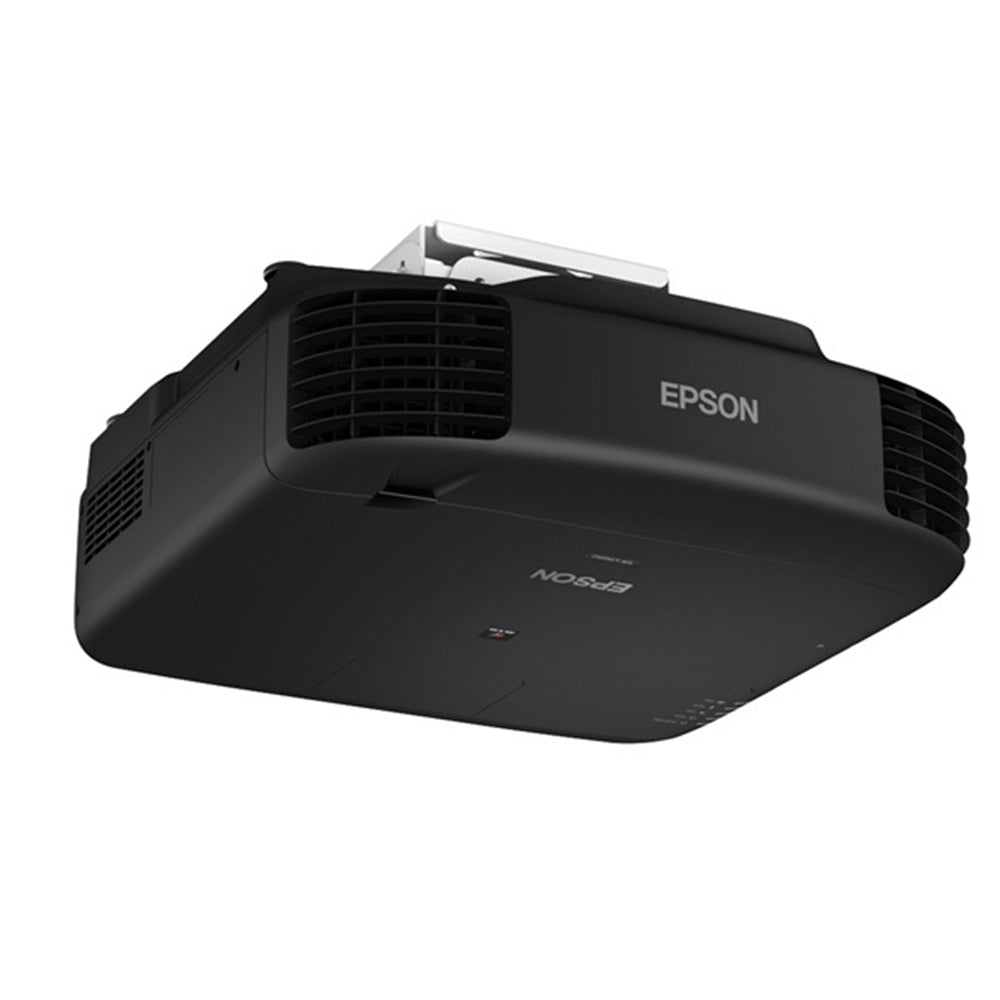

Epson EB-L1505UHNL Laser WUXGA 3LCD Projector without Lens

  • ₱1,007,835.00
    Unit price per


The Epson EB-L1505UHNL projector is designed to deliver unyielding laser performance, from any position to most surfaces, up to 20,000*3 long lasting hours maintenance-free.

  • White and Colour Brightness at 12,000lm
  • WUXGA (1920 x 1200)
  • Edge-blending to create large panoramic images
  • Curve and corner wall projection
  • HDBaseT

Unparalleled Performance
Revolutionary laser light source
Blue light from the laser is projected through a beam splitter, which divides the light into two beams. One beam is reflected by a phosphor wheel, changing it into yellow, while the other beam remains blue. The two beams are then recombined into white light and separated into red, green and blue through dichroic mirrors. Each of the three colours passes through LCD panels, producing three individual images, which are transmitted through a prism and combined into the final full-colour image.

Inorganic LCD panels and phosphor wheel for outstanding reliability
Made of inorganic material, Epson’s newly developed phosphor wheel offers superior light and heat resistance to deliver excellent reliability. By combining this with our inorganic LCD panels, we create laser projectors that project bright, vibrant images for extremely long periods.

Worry-free projection
With multiple laser diodes to rely on, the screen won’t go black even if one diode goes out. This eliminates the worry of the projector light burning out during mission-critical presentations.

20,000 hours of maintenance-free use
Engineered with inorganic LCD panels and an inorganic phosphor wheel. The newly designed laser light source delivers 20,000 hours*3 of maintenance-free use. And with the advanced electrostatic filter having an equally long-lasting life, you enjoy peace of mind in using these highly reliable laser projectors.

* Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m³ of particulate matter. Time varies depending on usage conditions and environments.

Well-balanced Whites
White light is created through combining the blue and yellow light beams. The advanced optical engine in the EB-L1505UHNL precisely adjusts the blue and yellow light to create brilliant white highlights, bringing a refreshing vibrancy to your images.

Fine-tuning Brightness
The EB-L1505UHNL provides precise brightness adjustment in increments of 1%. This combined with the Constant Brightness mode maintains brightness at a given value to match the venue or subject to deliver astonishing picture quality.

Confident Colours, Greater Details
WUXGA - Beyond Full HD Resolution
With WUXGA resolution (1,920 x 1,200 pixels), you enjoy a sharp, clear display of Full HD video (1,920 x 1,080 pixels) images down to the smallest details even on large-screen projections for an incredible dynamic viewing experience.

High-definition Images with 4K Enhancement Technology
4K enhancement technology shifts each pixel diagonally by 0.5 pixels to double the resolution to 3840 x 2160, surpassing Full HD image quality to give you unbelievable sharpness, clarity and detail on all your presentations.

Super-resolution Technology
Epson’s super-resolution technology delivers razor-sharp images even when projecting low-resolution content onto large screens. And with image data processed frame by frame, even rapid motion remains crisp.

Colour Adjustment
With the colour adjustment function, you can easily adjust the hue, saturation and brightness for each component of RGBCMY to match your preferences.

Auto Colour Calibration with Built-in Camera
The built-in camera detects screens that have become unevenly coloured over time, allowing the projector to automatically correct colour. It also detects subtle colour inconsistencies between multiple projectors. What’s more, this function can be programmed to check colour manually or automatically at regular intervals to deliver stable image quality with minimum maintenance.

Frame Interpolation
Enjoy clearer, sharper playback even on fast-moving subjects with Epson’s Frame Interpolation Technology. This unique function effectively eliminates motion blurring by inserting intermediate frames between images to create smoother motion transition.

Adaptive Projections
Powered Lens with Stepping Motor
The powered lens with stepping motor offers limitless possibilities in projector placement. Covering a wide range of angles, the motorised lens shift gives you a great deal of flexibility when installing the projector. The newly adopted stepping motor lets you make highly precise adjustments when employing edge blending, stacking and other techniques. Adjustments can also be made via remote control or over a network, enhancing usability even for ceiling-mounted projectors.

Lens-position Memory
With storage for up to 10 settings in the projector memory, including shift positions, focus and projection sizes, you can easily and quickly adjust the projector according to the aspect ratio of content simply by using either the remote controller or command control.

Extensive Lens Options
The Epson EB-L1505UHNL offers an extensive line-up of optional lenses to fit any venue or subject.

Zero Offset, Ultra-short Throw Lens
A revolutionary invention of Epson, this powerful lens is especially useful for environments with extremely limited lens-to-screen distances. The short throw ratio of 0.35 with zero-offset and the projector’s front-mounted exhaust system means you can project onto 100-inch screens even from as near as 74 cm away. When combined with lens shift (+25% vertically, ±15% horizontally), these features simplify usage where space is at a premium.

Multi-direction Projection
EB-L1505UHNL can be rotated 360° in any direction — horizontally, vertically and rotationally — without any loss in image brightness. This makes it ideal for a wide range of applications, such as projecting onto ceilings and floors.

Projection on Wide Curved and Corner Spaces
Fit your projection images nicely even on non-flat surfaces. Create stunning projection images on wide curved surfaces and corner walls, ideal for advertisements and marketing promotions.

Borderless Multi Projection
Offering a variety of functions for multi-projector installations, the EB-L1505UHNL lets you adjust brightness, colour and the position of overlapping areas for seamless, beautiful displays. There is also an Auto Scaling function for easy multi-projector displays and an Advanced Edge Blending function for more precise edge-blending adjustment.

Colour Matching/Brightness Level
Enjoy uniform colour and brightness even when using multiple projectors.

Advanced Edge Blending
Precisely adjust edge blending to combine multiple edges for a seamless, unified look. This function allows you to fine-tune the start position and edge width of the blend as well as the area of the black level in the blend. It also prevents the main subject from being overlapped. As a tip, you can reduce the size of the overlapping areas to decrease the time it takes to combine multiple images.

Point Correction
Easily correct single-projector distortion or multi-projector misalignment directly on the screen. Quickly fine-tune the images by adjusting point by point from right to left, top to bottom, using a projected maximum 17 x 17 matrix.

Auto Scaling
This revolutionary function simplifies the complicated scaling of images from multiple projectors so you can do it easily. Just select the screen layout from the pre-set menu and the projector automatically sets the slice area, scaling and edge-blend position.

Black Level
Experience uniform black levels in overlapping areas of images even when using multiple projectors.

Wide Range of Connectivity
The Epson EB-L1505UHNL is compatible with a wide range of external devices, and additional ports now include DVI-D, HDMI, HDBaseT and SDI. Ideal for large venues, HDBaseT can transmit Full HD video, audio and Ethernet at low cost through cat 5e/6 cables up to 100 metres.

Ease of Maintenance
Epson Projector Management
With Epson’s network monitoring and control software, you can see from a single PC which projectors are available and whether they are running efficiently – even across the biggest network. You can configure your projectors and access their serial numbers remotely, as well as receive instant email alerts for pre-defined critical indicators such as non-functioning devices or overheating lamps.

Now you can send messages or announcements as JPEG files simultaneously to any number of projectors on a network. This makes the EB-L1505UHNL projector very useful for immediate communication needs or even emergencies.

Web Control
By connecting your projector to a network, you can adjust your projector installation entries from a PC or smart device.

Transfer OSD Information
Reduce installation and setup time when using multiple projectors by transferring OSD settings — such as brightness and colour settings as well as user logos — to multiple machines via USB or over a network.

Remote Camera Access
The camera capture function allows administrators to preview errors on-screen remotely in real time simply by linking up to the same network used by the projector. This translates to faster support and minimal projector downtime.

Temperature Log
The temperature log records unusual temperature fluctuations to provide administrators with information when troubleshooting. Recording is automatically triggered by changes in projector temperature and is measured at 15-minute intervals for up to a total of 24 hours in a group. Each log can hold up to a maximum of 7 groups.

Power Supply Log
Prevent unexpected shutdowns with detailed records of up to 60 voltage logs. This function helps administrator to identify the cause and time of the sudden shutdown due to momentary voltage drop.

What's In The Box:

Power Cable
HDMI Cable Clamp
Remote Control with 2 x AA Battery
Cable Cover
User’s Manual CDROM

Projectors Facets:

Resolution, Projectors Facets:WUXGAContrast Ratio, Projectors Facets:Over 2,500,000:1Brightness Range Lumens, Projectors Facets:10001Laser / Lamp, Projectors Facets:LaserFeatures, Projectors Facets:Wifi
Quick Corner
Edge Blending
Lens Interchangeable
Corner wall
4k enhancement

Projection Technology:

Projection Technology:RGB liquid crystal shutter projection system (3LCD)

Specifications of Main Parts:

LCD:Size: 1.03” (D10)
Native Resolution: WUXGA (1920 x 1200)Lightsource:Type: Laser Diode
Life (Normal / Extended): 20,000 / 30,000 hours

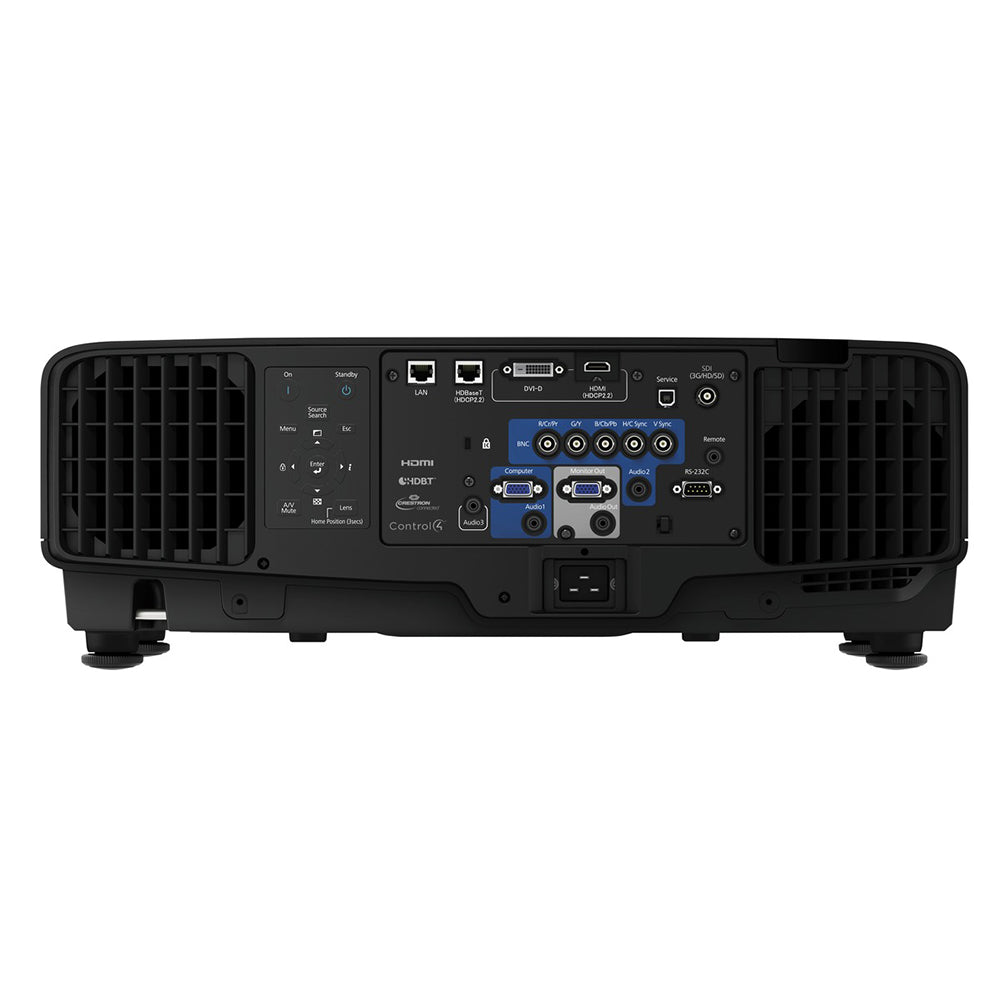

Network:Wired LAN: RJ45 x 1
Wireless: OptionalAnalog Input:D-Sub 15 pin: 1 (Blue)
5BNC: 1Digital Input:DVI-D: 1
HDBaseT: RJ45 x 1
SDI: 1xOutput Terminal:D-Sub 15Pin: 1Audio Input:Stereo Mini Jack: 3Audio Output:Stereo Mini Jack: 1Control I/O:RS-232C: D-Sub 9Pin x 1
Remote Control Input: Stereo Mini Jack x 1Others:USB Type A: 1 (for Wireless LAN, Firmware Update, Copy OSD Settings)
USB Type B: 1 (for Firmware Update, Copy OSD Settings)

Contrast Ratio:

Contrast Ratio:Over 2,500,000:1

Wireless Specifications (Wireless LAN: Built-in):

Supported Speed for Each Mode:IEEE 802.11b: 11Mbps*2
IEEE 802.11g: 54Mbps*2
IEEE 802.11n: 130Mbps*2Wireless LAN Security:Quick Mode: OPEN, WPA2-PSK

Screen Size (Projected Distance):

Zoom : Wide:60” - 500” [1.99 - 17.17 m]Zoom : Tele:60” - 500” [3.26 - 27.77 m]

Geometric Correction:

Vertical/Horizontal Keystone:±45° / ±30° (Zoom: Tele) (with Standard Lens)Curve Surface:YesCorner Wall:YesPoint Correction:YesQuick Corner:YesArc:YesGeometry Correction Memory:Yes

Operating Temperature:

Operating Temperature:0 - 50 °C <32 - 122 °F> (Below 1,500m / 4,921ft)
0 - 45 °C <32 - 113 °F> [Above 1,500m / 4,921ft - 3,048m / 10,000ft (with high altitude mode)]

Operating Altitude:

Operating Altitude:0 - 3,048 m <0 - 10,000 ft> (over 1,500m / 4,921ft : with high altitude mode)

Start-Up Period:

Start-Up Period:Less than 7 seconds, Warm-up Period: 30 seconds

Cool Down Period:

Cool Down Period:Instant Off

Direct Power On/Off:

Direct Power On/Off:Yes

Dimension Excluding Feet (W x H x D):

Dimension Excluding Feet (W x H x D):586 x 185 x 492 mm

Power Supply Voltage:

Power Supply Voltage:100 - 240 V AC ±10%, 50/60 Hz


Weight:Including Standard Lens: Approx. 23.7 kg
Excluding Standard Lens: Approx. 21.9 kg

Air Filter:

Type:High Efficiency FilterMaintenance Cycle:20,000 / 30,000 hours*3

Fan Noise:

Fan Noise (Normal / Eco):37dB / 30dB

Power Consumption (220 - 240V):

Laser Diode (Normal/Eco):908W / 597WNetworked Standby / Energy Saving:2.0W / 0.3 W


White Light Output (Normal/Eco):12,000lm / 8,400lmColour Light Output:12,000lm
