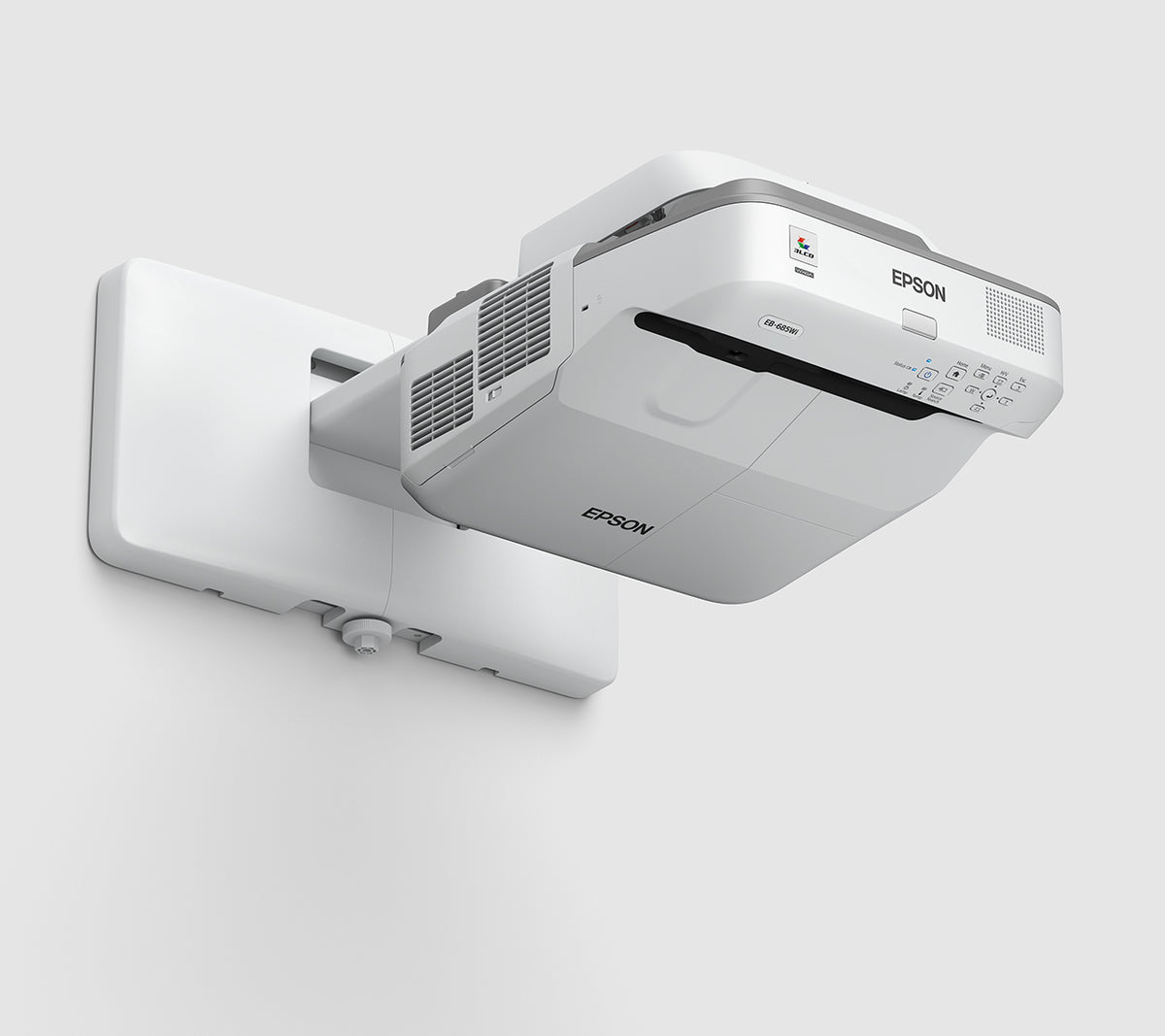

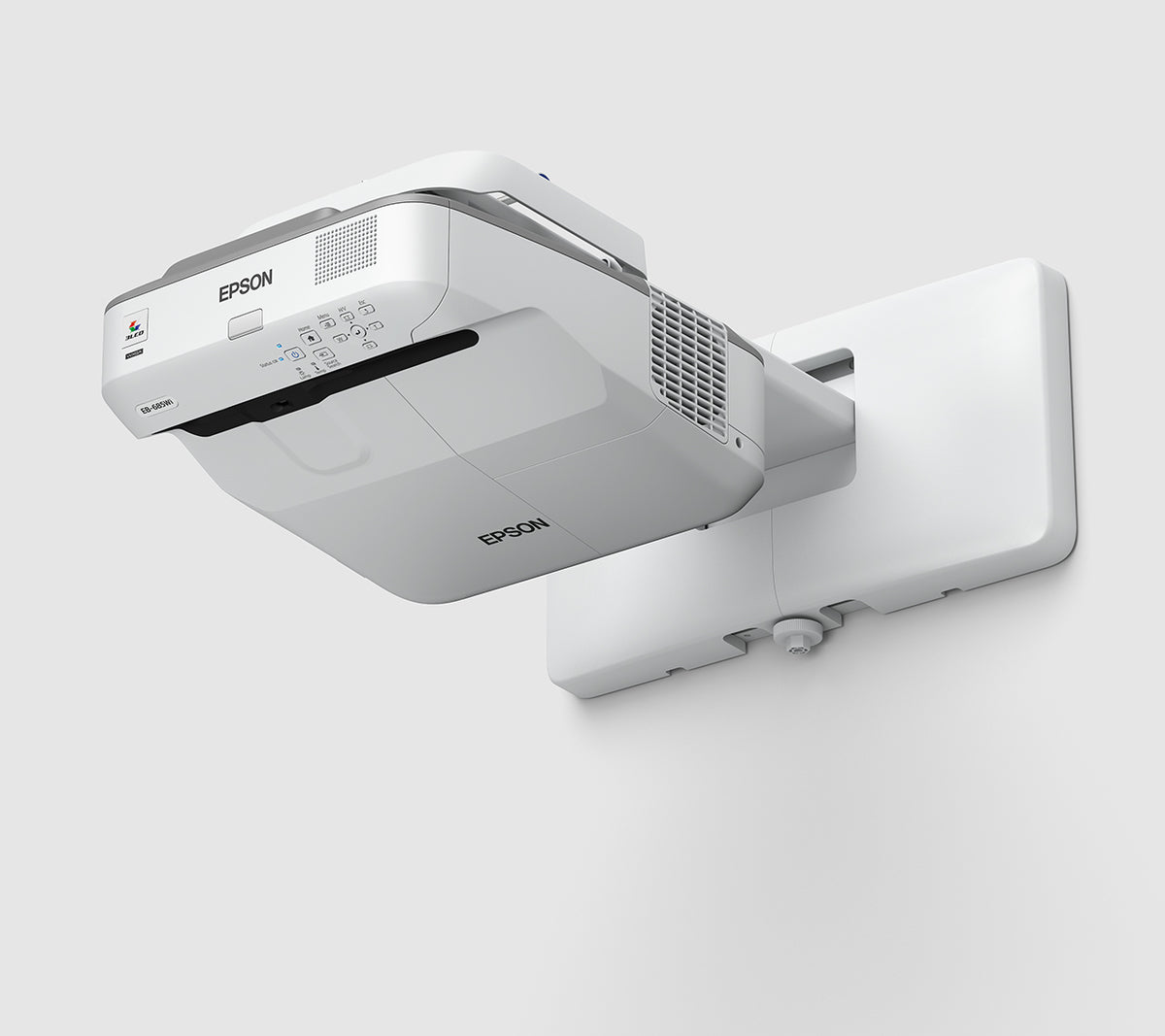

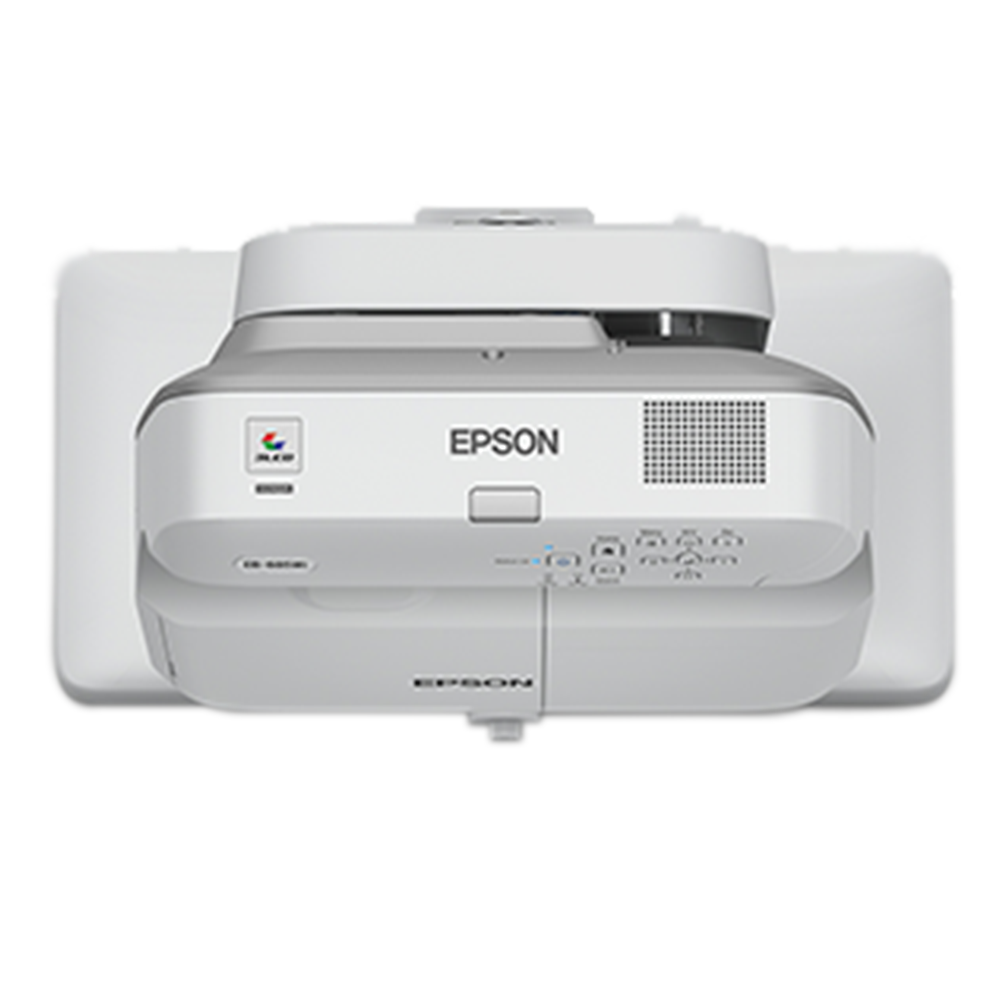

Epson EB-685Wi Ultra-Short Throw Interactive WXGA 3LCD Projector
Unit price/ per
INTERACT SEAMLESSLY ACROSS PANORAMIC IMAGES
Take your audience on a breathtaking journey around the world with the EB-685W ultra-short throw projector. Project longer than before with an astounding 10,000 hours of lamp life in eco-mode. Create panoramic projections and enjoy seamless interactions with the interactive pens while you scroll, zoom, and draw across dual projections.
- WXGA Resolution
- White and Colour Light Output at 3,500 lumens
- Dual Screen Interactivity
- Ultra Short Throw 80" 47cm
- 10,000 Hours Lamp Life in Eco Mode
- Multi-PC Projection
- 3 x HDMI
Image that Illuminates
High Brightness Even in Eco-mode
Reduce energy consumption in ECO mode with minimal impact on image brightness. When ECO mode is turned on, brightness will only be reduced to 2,900 lumens. That means you can still enjoy bright projection even as you save on energy costs.
Save energy consumption and do your part for the environment with the eco-friendly auto-brightness adjustment. The luminance sensor detects the brightness level of the environment and adjusts the projector’s brightness automatically, giving you power and cost savings. This function can be turned on/ off according to your preference.
Panoramic Interactive Experience
Dual Interactive Pens
The two new interactive pens are designed for high-speed writing, accurate response and long battery life. The high response speed and accuracy make drawing as instant and smooth as writing with a real marker on whiteboard. The pens can also function like a computer mouse to select, drag and double-click objects. Both interactive pens are able to draw at the same time throughout the whole screen with its own selected colour. Fingers can select a third colour or the eraser function to work on the screen together with the pens. The pens also come with a side button for users to instantly activate various assigned functions to facilitate the most convenient annotation experience.
PC-less Interactive Functionality
With this original PC-free interactive feature by Epson, you can write and draw on the projector’s in-built digital whiteboard or any image projected from other non-PC sources such as document camera, blue-ray player, video conference system, tablets and smart phones. You can also control any photo slide show loaded from a USB memory key in PC-free mode.
Dual Screen Seamless Interactivity
To deliver the most immersive interactive experience, two projectors can be installed side by side to create an ultra-wide interactive panoramic screen of up to 177 inches diagonal. Write or move objects seamlessly across the dual screen with your interactive pens. With the extended interactive space, more meeting information can now be displayed for cross-referencing and you will never have to worry about limited drawing space anymore.
Enhanced Audience Collaboration
Ultra-short Throw Advantage
With ultra-short throw, light from this interactive projector is less distracting as it barely touches the presenter, ensuring a more comfortable experience compared to conventional models. As light is not blocked by the presenter, less shadow is formed on the screen, allowing the audience to clearly see the information projected at all times. The ultra-short throw setup also ensures stable performance of the two interactive pens and provides consistent colour uniformity over the entire screen. These advantages keep the presenter more comfortable and enable clear, smooth presentations.
With ultra-short throw, it is now possible to project a large screen within the narrow space of retail windows. You can now create captivating window displays with the help of large projections to increase the visibility of store merchandise. The ultra-short throw projectors can also be flexibly mounted onto a table to create an engaging interactive tabletop for meetings and discussions.
Wide Range of Connectivity
Advanced connectivity features mean convenient and hassle-free projections of your presentations. Featuring wide-ranging interfaces, this projector not only corresponds with multiple conventional analogue sources, it is also compatible with HDMI and supports CEC. And with three HDMI input terminals, of which one is MHL-enabled for mirroring of Android mobile devices, you can connect to various devices and share contents from different sources easily. Simply connect your MHL-compatible device with the MHL cable to fully enjoy your contents on the big screen. What’s more, when connected, you can charge your Android mobile device and operate it using the projector’s remote control.
iProjection App for Mobile Devices
The iProjection app enables both iOS and Android devices to easily connect to the projector. You can use iProjection to wirelessly project various documents, photos and web pages, and draw on the device screen and share on projection. To connect, search for the projector in your local network or simply scan a QR code displayed on the projector screen. Remote control function is also built into iProjection so you can use the app to control projector functions. In addition, iProjection now supports screen mirroring (without audio) from devices running on Android 5.0 and above.
* In iProjection, projector profile search, multi-screen display, distribution function, audio transfer, movie file transfer, interrupt connection disabling and encryption data transfer capabilities are not supported.
** Wireless LAN USB dongle ELPAP10 is sold separately to enable projector’s wireless connectivity to PCs, devices and wireless.
Split the projector screen into two to project images from two different sources simultaneously. With the maximum 100-inch large screen size, you can project images from two different sources side-by-side clearly. For example, you may show your presentation or document camera image on one side and write on the digital whiteboard on the another. With this function, there is no need to purchase two separate displays.
Multi PC Projection
Project from your laptop wirelessly using Epson EasyMP Multi PC Projection 2.0 software. Up to 50 laptops and mobile devices can connect to a single projector via this software. A laptop or device of the presenter can be assigned as the moderator and send a projected image with questions to all connected participant devices. After the participants write down their answers on the image and project them, the moderator can view thumbnail previews of the answers and select up to four of them to be projected on the screen simultaneously for sharing and comparison.
Convenient and Ergonomic Features
View and access your most frequently used functions immediately from the home screen. See all input sources at one glance and switch between them easily. For devices to easily connect wirelessly, the projector’s wireless network information and QR code are also shown on the home screen.
Auto Power On
With the auto power on function, projection starts automatically once a projection signal is detected via VGA cable.
Improved Control Toolbar on the Projector Screen
Conveniently access commonly used functions from the control toolbar projected on screen. Buttons available include Home, Print, Save, Image Share, Input, Zoom, A/V mute, Freeze, Volume, Split Screen, Timer, Document Camera and Power Off.
Enhanced Whiteboard Feature
Drawings and images on the projector’s digital whiteboard can be saved into a USB memory drive or printed via a network printer.
On-screen Control of Epson Document Camera
With greater compatibility to Epson document cameras*, you can adjust document camera functions like zoom, auto focus, image capture, rotation, video recording, etc. from the on-screen document camera control toolbar. These controls are enabled by just a HDMI connection. Now, you can easily control the document camera to achieve your ideal image without moving away from the presentation screen.
* Only applicable for ELPDC21/ELPDC13/ELPDC07 document cameras.
Longer Lamp Life
With a long lamp life of 10,000 hours in ECO mode, the frequency of lamp replacements is reduced, saving you time and lowering the total cost of ownership.
- Uses just 0.37W of power in standby mode
- Projector optics employ lead-free lenses
- Unpainted plastic housing reduces the environment impact
- The flame retardants used in the plastic housing do not contain chlorine or bromine
What's In The Box:
Power Cable: 4.5m
USB Cable: 5m
Remote Control with Battery Attached
Interactive Pens: 2 Pens with AA Battery Pen Tray
Light Curtain Unit Bracket
Pen Tip (Soft): 4
Pen Tip (Hard): 2
Pen Tip Holder
Password Protect Sticker
Spare Lamp: ELPLP91
Air Filter: ELPAF49
Wireless LAN Unit: ELPAP10
Remote Control Cable Set: ELPKC28 (10m x 2) (for synchronization of Interactive IR)
Setting Plate: ELPMB46 / ELPMB43 / ELPMB28
Table Mount Bracket: ELPMB29
Easy Interactive Pen 1 (Orange): ELPPN05A
Easy Interactive Pen 2 (Blue): ELPPN05B
Replacement Hard Pen Tips: ELPPS03 for ELPPN05 (Hard)
Replacement Soft Pen Tips: ELPPS04 for ELPPN05 (Soft)
White Light Output (Normal/Eco):3,500lm / 2,900lmColour Light Output:3,500lm
Network:Wired LAN: RJ45 x 1 (100Mbps)
Wireless: Optional (ELPAP10)Analog Input:D-Sub 15Pin: 2 (Blue)
Composite: RCA x 1 (Yellow)Digital Input:HDMI: 3 (HDMI1 in common with MHL)Output Terminal:D-Sub 15Pin: 1 (Black) In common with Computer2Audio Input:Stereo Mini Jack:3Audio Output:Stereo Mini Jack: 1Control I/O:RS-232C: D-Sub 9pin x 1
Interactive Sync Stereo Mini Jack IN x 1, OUT x 1Others:USB Type A: 1 (for USB Memory, USB Document Camera, Firmware Update, Copy OSD Settings)
USB Type B: 1 (for USB Display, Mouse, K/B, Control, Firmware Update, Interactive, Copy OSD Settings)
Microphone Input: 1
Wireless Specifications (Wireless LAN: Built-in):
Supported Speed for Each Mode:IEEE 802.11b: 11 Mbps*3
IEEE 802.11g: 54 Mbps*3
IEEE 802.11n: 130 Mbps*3Wireless LAN Security:WPA/WPA2-Personal (with optional ELPAP10)
Screen Size (Projected Distance):
Screen Size (Projected Distance):60” - 100” [35.4 - 60.1 cm] 74.3” screen 44.3cm
Operating Temperature:5 - 40 °C <41 - 104 °F> (0m / 0ft - 2,286m / 7,500ft)
5 - 35 °C <41 - 95 °F> (over 2,286m / 7,500ft) (20% - 80% humidity, No Condensation)Multi-projection Use:5 - 35 °C <41 - 95 °F> (0m / 0ft - 2,286m / 7,500ft)
5 - 30 °C <41 - 86 °F> (over 2,286m / 7,500ft) (20% - 80% humidity, No Condensation)
Operating Altitude:0-3,000m <0-9,843 ft> ( over 1,500m / 4,921 ft: with High altitude mode)
Start-Up Period:About 8 seconds, Warm-up Period: 30 seconds
Cool Down Period:
Cool Down Period:Instant Off
Sound Output:16W Mono
Dimension Excluding Feet (W x H x D):
Dimension Excluding Feet (W x H x D):367 x 149 mm x 400
Type:Electrostatic FilterMaintenance Cycle*4:5,000 hours (Power Consumption: Normal) 10,000 hours (Power Consumption: Eco)
Fan Noise (Normal / Eco / Eco2):35dB / 30dB / 29dB
Power Supply Voltage:100 - 240 V AC ±10%, 50/60 Hz
Vertical/Horizontal:Vertical / Horizontal (Zoom : Tele): ±3° / ±3°Quick Corner:Yes
Direct Power On / Off:
Direct Power On / Off:Yes
Specifications of Main Parts:
LCD:Size: 0.59” (D9 C2fine)
Native Resolution: WXGALamp:Type: 250W UHE
Life (Normal / Eco / Eco2)*1: 5,000 hours / 10,000 hours / 9,000 hours
Technology:InfraredInput Devices:Interactive Pen Digital Pen (Easy Interactive Pen 1, 2)Connection To Computer:USB, NetworkCalibration:Auto / Manual (25points)Interactive Pen Functions:Hover, Right Click, Auto Adjust Pen Area
