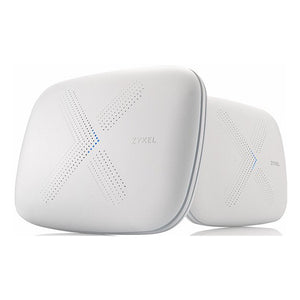

Zyxel AC3000 Tri-Band WiFi System (Multy Plus)
System Specifications
Speed Rating (per unit)
AC3000 (1733+867+400 Mbps)
Coverage
Up to 5000 sq. ft./464 m2*
Wireless Standard
IEEE 802.11 b/g/n 2.4 GHz - 256QAM support
IEEE 802.11 a/n/ac 5 GHz Wave 2, 5GHz - 256QAM support
Wireless Speed
Transmit & Receive
- 1733 Mbps** for 5 GHz (dedicated backhaul)
- 867 Mbps** for 5 GHz
- 400 Mbps** for 2.4 GHz
Web Browser
Advanced wired & wireless setup and management
Diagnose & speed tests
Access control
Visitor network & captive portal setup
App
Easy installation & management - Multy app
Easy to setup
- Support myZyxelCloud SSO (Single-Sign-On) system
- Quick Bluetooth setup
- Support wireless site survey to identify optimum installation locations between node to node
- Support combining/separating 2.4GHz and 5GHz WiFi network from each other in WiFi system
Support Internet access control
- Block or allow specific group based on time schedule
- Flexible override Internet access for specific device group
Support visitor WiFi setting
- Share network name and password via QR code for your visitors
- Monitor of active concurrent visitor devices connected
Diagnose network via speed test
Push notification
- New firmware available
- Speed test result
- New device connected
Remote management
Automatic updates for new features
Support iOS 9/Android 5.0 or later
Support language: EN/ZH/DE/ES/FR/IT/PT
Hardware Specifications
Memory
4 GB eMMC and 512 MB RAM
WAN
One 10/100/1000 Mbps Ethernet RJ-45 port with auto MDI/ MDIX support
LAN
Three 10/100/1000 Mbps Ethernet RJ-45 ports with auto MDI/ MDIX support
Antenna
9 Internal Antennas
USB
One USB2.0 port
LED indicator
Status indication/ Auto dimming
Buttons
Reset
Power
12 V DC, 3 A
Power consumption
25 watt max
Physical Specs (per unit)
Item dimensions
(W x D x H)
236 x 178 x 51.5 mm (9.3" x 7.0" x 2.0")
Item weight
740 g (1.63 lb.)
Packing dimensions
(W x D x H)
250 x 128 X 339 mm (9.8" x 5.0" x 13.3")
Packing weight
1884 g (4.15 lb.)
Environmental Specifications
Operating Environment
Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 10% to 90% (Non-condensing)
Storage Environment
Temperature: -30°C to 70°C (-22°F to 158°F)
Humidity: 10% to 95% (Non-condensing)
Certifications
Safety
CE-LVD, BSMI
EMC
CE, FCC, BSMI, NCC
Package Contents
Multy Plus
Power adapter
Ethernet cable
Quick start guide
Mounting kits
