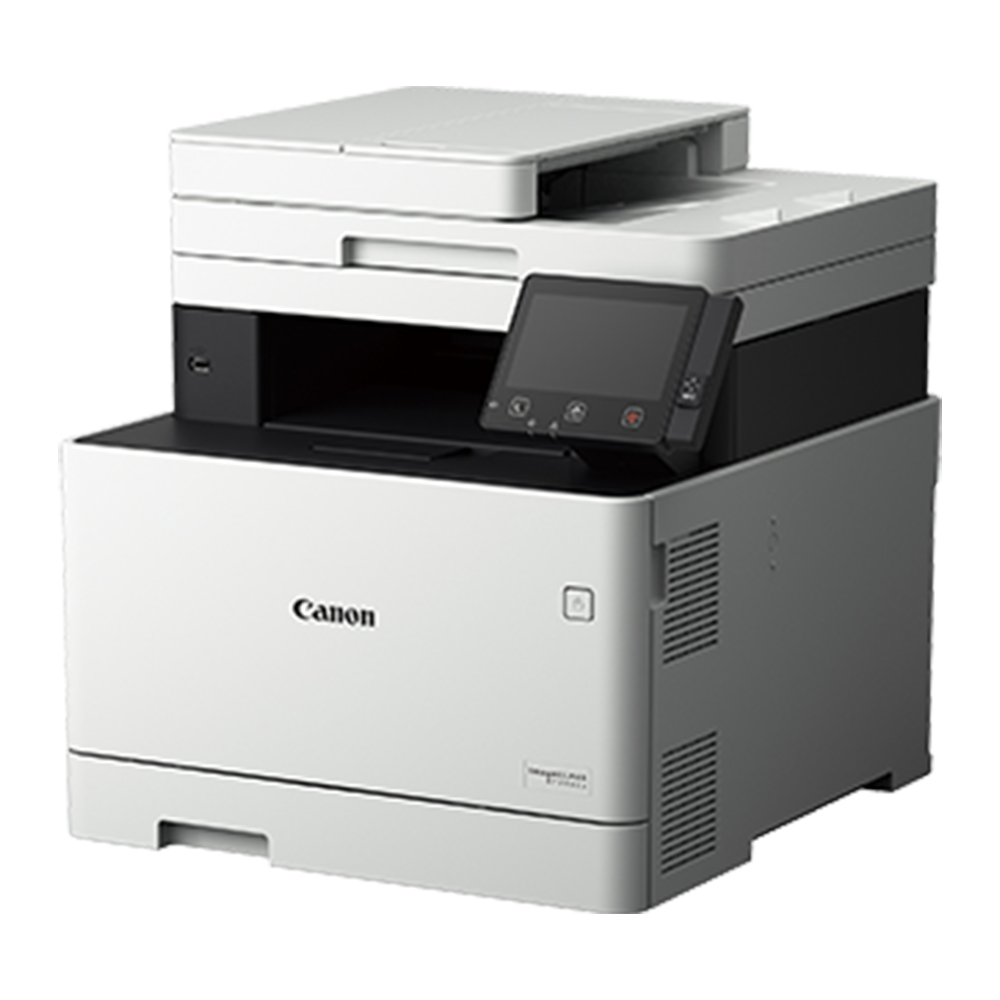

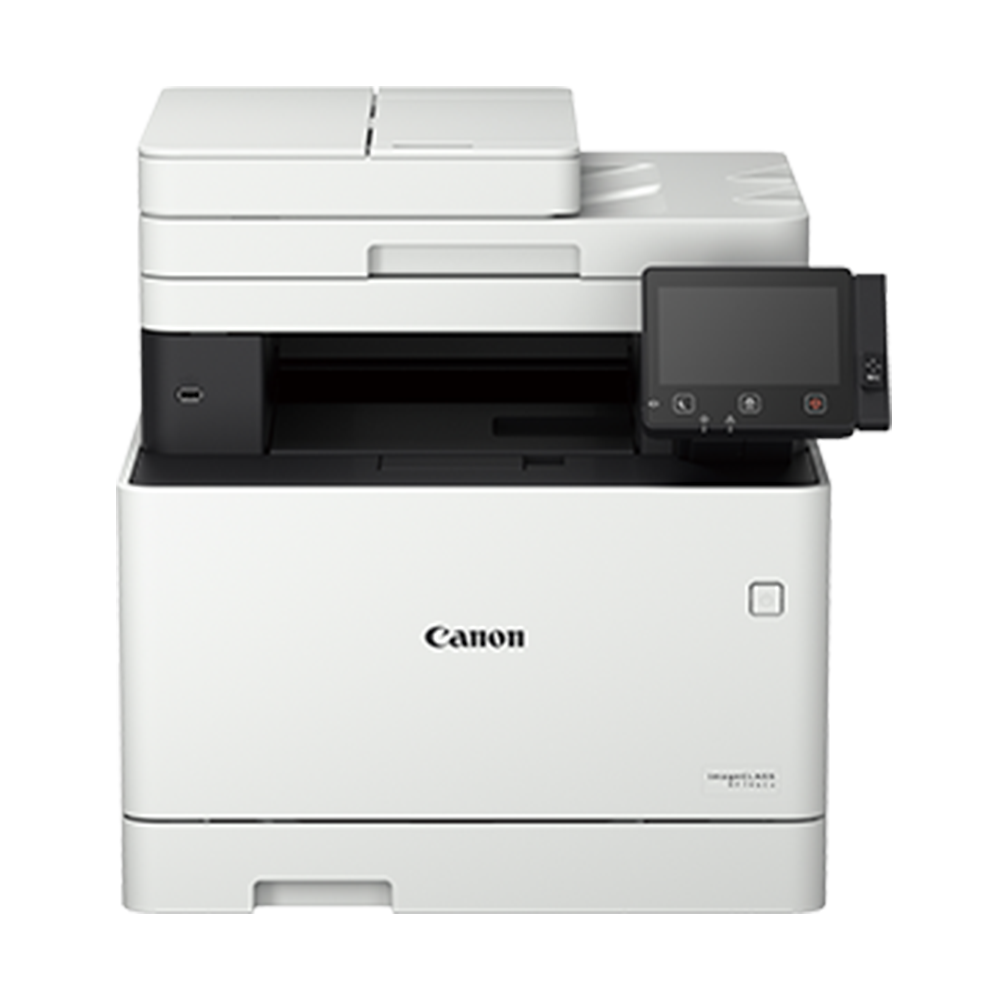

Canon imageCLASS MF746Cx Coloured MFP Laser Printer and Scanner
Designed for office efficiency, the MF746Cx delivers with speed, great print quality and intuitive features.
- Print, Scan, Copy, Fax
- Print Speed (A4): Up to 27ppm (mono/colour)
- Print resolution: Up to 1,200 (equivalent) x 1,200dpi (equivalent)
- Gigabit Ethernet, WiFi, Direct Connection, NFC
- Recommended Monthly Print Volume: 750 - 4,000 pages
| Printing Method | Colour Laser Beam Printing |
| Print Speed | |
| A4 | 27 / 27 ppm (Mono / Colour) |
| Letter | 28 / 28 ppm (Mono / Colour) |
| 2-Sided | 21 / 21 ppm (Mono / Colour) |
| Print Resolution | 600 x 600 dpi |
| Print Quality with Image Refinement Technology | 1,200 × 1,200 dpi (eq.) |
| Warm up Time (From Power On) | 13 sec or less |
| First Print Out Time (FPOT) | |
| A4 | Approx. 7.7 / 8.6 sec (Mono / Colour) |
| Letter | Approx 7.5 / 8.5 sec (Mono / Colour) |
| Recovery Time (From Sleep Mode) | 6.1 sec or less |
| Print Language | UFR II, PCL 6, Adobe® PostScript® 3™ |
| Auto Duplex Print | Standard |
| Available Paper Size for Auto Duplex Print | A4, B5, Letter, Legal, Executive, Foolscap, Indian Legal |
| Print Margins | 5mm - top, bottom, left and right (Envelope: 10mm) |
| Print Features | Poster, Booklet, Watermark, Page Composer, Toner Saver |
| Supported File Format for USB Direct Print | JPEG, TIFF, PDF |
Copy
| Copy Speed A4 | |
| A4 | 27 / 27 ppm (Mono / Colour) |
| Letter | 28 / 28 ppm (Mono / Colour) |
| Copy Resolution | 600 x 600dpi |
| First Copy Out Time (FCOT) | |
| A4 | Approx. 9.8 / 11.3 sec (Mono / Colour) |
| Letter | Approx. 9.5 / 11.1 sec (Mono / Colour) |
| Maximum Number of Copies | Up to 999 copies |
| Reduce/Enlargement | 25 - 400% in 1% increments |
| Copy Features | Frame Erase, Collate, 2 on 1, 4 on 1, ID Card Copy, Passport Copy |
Scan
| Scan Resolution | |
| Optical | Platen glass: up to 600 x 600dpi Feeder: up to 300 x 300dpi |
| Driver Enhanced | Up to 9,600 x 9,600 dpi |
| Scan Type | Colour Contact Image Sensor |
| Maximum Scan Size | |
| Platen Glass | Up to 216 x 297mm |
| Feeder | Up to 216 x 355.6mm |
| Scan Speed*1 | 1-Sided: 26.1 ipm (mono), 13.3 ipm (colour) 2-Sided: 51.2 ipm (mono), 26.1 ipm (colour) |
| Colour Depth | 24-bit |
| Pull Scan | Yes, USB and Network |
| Push Scan (Scan To PC) with MF Scan Utility | Yes, USB and Network |
| Scan To USB (via USB Host 2.0) | Yes |
| Scan To Cloud | MF Scan Utility |
| Scan Driver Compatibility | TWAIN, WIA |
Send
| SEND Method | SMB, Email, FTP, iFAX Simple |
| Colour Mode | Full Color, Grayscale, Monochrome |
| Scan Resolution | 300 x 600pi |
| File Format | JPEG, TIFF, PDF, Compact PDF, PDF (OCR) |
Fax
| Modem Speed | Up to 33.6 Kbps |
| Fax Resolution | Up to 408 x 392 dpi |
| Compression Method | MH, MR, MMR, JBIG |
| Memory Capacity*2 | Up to 512 pages |
| Favourite Dials (in address book) | 19 dials |
| Speed Dial (Coded dials) | Up to 281 dials |
| Group dials / Destinations | Max. 299 dials / Max. 299 destinations |
| Duplex Fax (Transmission) | Yes |
| Sequential Broadcast | Max. 310 destinations |
| Receive Mode | Fax Only, Manual, Answering, Fax/Tel Auto Switch |
| Memory Backup | Permanent fax memory backup (Backup with flash memory) |
| Fax Features | Fax Forwarding, Dual Access, Remote Reception, PC Fax (Transmission only), DRPD, ECM, Auto Redial, Fax Activity Reports, Fax Activity Result Reports, Fax Activity Management Reports |
| Transmission Time | Approx. 2.6 sec |
Paper Handling
| Auto Document Feeder (ADF) | DADF: 50 sheets (80g/m2) |
| Available Paper Size for DADF | A4, B5, A5, Letter, Legal, Statement (Min. 139.7 x 128.0mm to Max. 216.0 x 355.6mm) |
| Paper Input (based on 80g/m2) |
|
| Standard Cassette | 250 sheets |
| Multi-Purpose Tray | 50 sheets |
| Optional Paper Feeder | 550 sheets |
| Maximum Paper Input Capacity | 850 sheets |
| Paper Output | 150 sheets |
| Paper Sizes | |
| Cassette | A4, B5, A5, Letter, Legal, Statement, Executive, Government Letter, Government Legal, Foolscap, Indian Legal Custom (Min. 98.0 x 148.0mm to Max. 216.0 x 355.6mm) |
| Multi-Purpose Tray | A4, B5, A5, Letter, Legal, Statement, Executive, Government Letter, Government Legal, Foolscap, Indian Legal, Index Card Envelope: COM10, Monarch, C5, DL Custom (Min. 76.2 x 127.0mm to Max. 216.0 x 355.6mm) |
| Optional Paper Feeder | A4, B5, A5, Letter, Legal, Statement, Executive, Government Letter, Government Legal, Foolscap, Indian Legal Custom (Min. 98.0 x 148.0mm to Max. 216.0 x 355.6mm) |
| Paper Types | Plain, Thick, Coated, Recycled, Colour, Label, Postcard, Envelope |
| Paper Weight | |
| ADF | 50 to 105g/m2 |
| Cassette / Optional Paper Feeder |
60 to 200g/m2 |
| Multi-Purpose Tray | 60 to 200g/m2 |
Connectivity & Software
| Standard Interfaces | |
| Wired | USB 2.0 High Speed, 10Base-T/100Base-TX/1000Base-T |
| Wireless | Wi-Fi 802.11b/g/n (Infrastructure mode, WPS easy Setup, Direct Connection) |
| Near Field Communication (NFC) | Yes (Passive) |
| Network Protocol | |
| LPD, RAW, WSD-Print (IPv4,IPv6) | |
| Scan | Email, SMB, WSD-Scan(IPv4, IPv6), FTP |
| TCP/IP Application Services | Bonjour(mDNS), HTTP, HTTPS, POP before SMTP (IPv4,IPv6), DHCP, ARP+PING, Auto IP, WINS (IPv4), DHCPv6 (IPv6) |
| Management | SNMPv1, SNMPv3 (IPv4,IPv6) |
| Network Security | |
| Wired | IP/Mac address filtering, HTTPS, SNMPv3, IEEE802.1x, IPSEC |
| Wireless | WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES) |
| One-Push Wireless Configuration | Wi-Fi Protected Setup (WPS) |
| Other Features | Department ID, Secure Print, Application Library |
| Mobile Solution | Canon PRINT Business, Canon Print Service, Google Cloud Print™, Apple® AirPrint®, Mopria® Print Service |
| Address Book | LDAP |
| Compatible Operating Systems*3 | Windows® 10, Windows® 8.1, Windows® 7, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, Windows Server® 2008 Mac® OS X 10.9.5 & up*4, Linux*4 |
| Software Included | Printer driver, Fax driver, Scanner driver, MF Scan Utility, Toner Status |
General
| Device Memory | 1 GB |
| LCD Display | WVGA Colour LCD 5.0" Touch Screen Display |
| Dimensions (W x D x H) | 471 x 469 x 460mm |
| Weight | 24.5kg |
| Power Consumption | |
| Maximum | 1,370W or less |
| Average (During Copy) | Approx. 530W |
| Average (During Standby) | Approx. 18.0W |
| Average (During Sleep) | Approx. 0.7W (USB/ LAN / Wi-Fi) |
| Noise Levels*5 | |
| During Operation | Sound Pressure Level: 49dB Sound Power Level: 70.5dB |
| During Standby | Sound Pressure Level: 26dB Sound Power Level: 43dB |
| Operating Environment | |
| Temperature | 10 - 30°C |
| Humidity | 20% - 80% RH (no condensation) |
| Power Requirements | AC 220-240 V (±10%), 50/60 Hz (±2Hz） |
| Toner Cartridge*6 | |
| Standard | Cartridge 055 BK: 2,300 pages (bundled: 2,300 pages) Cartridge 055 C/M/Y: 2,100 pages (bundled: 1,200 pages) |
| High | Cartridge 055H BK: 7,600 pages Cartridge 055H C/M/Y: 5,900 pages |
| Monthly Duty Cycle*7 | 50,000 pages |
Optional Accessories
| Paper Feeder | Cassette Feeding Unit-AF1 (550 sheets) |
| Barcode Printing | Barcode Printing Kit-E1 |
| Attachment kit for NT-Ware Mi-Card | Mi-Card Attachment Kit-B1 |
