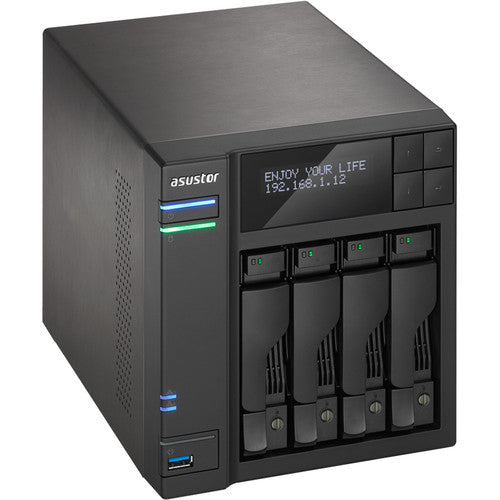

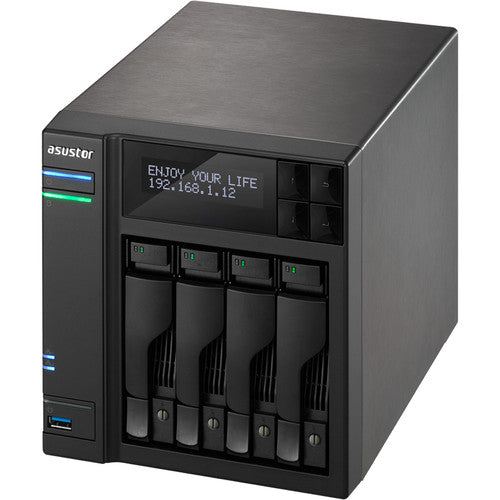

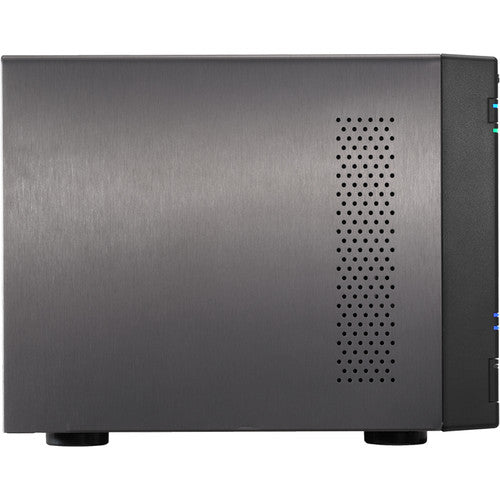

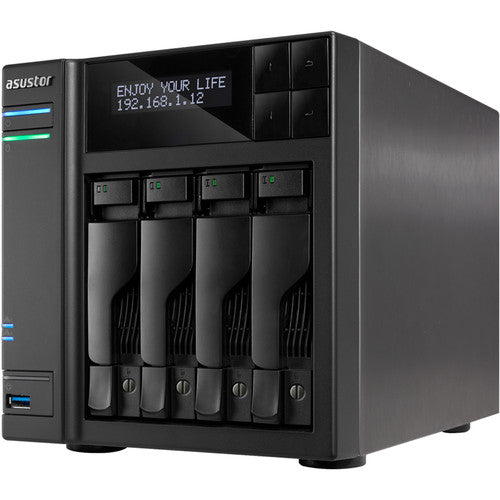

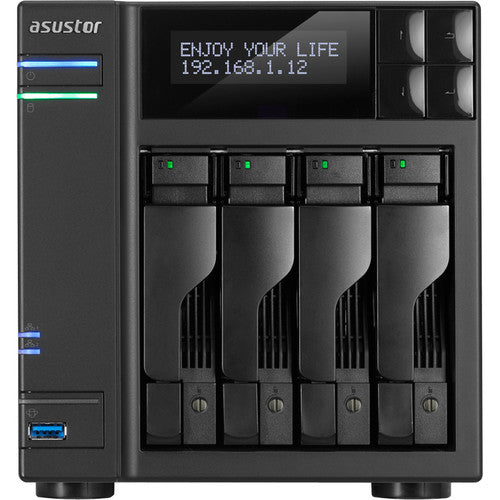

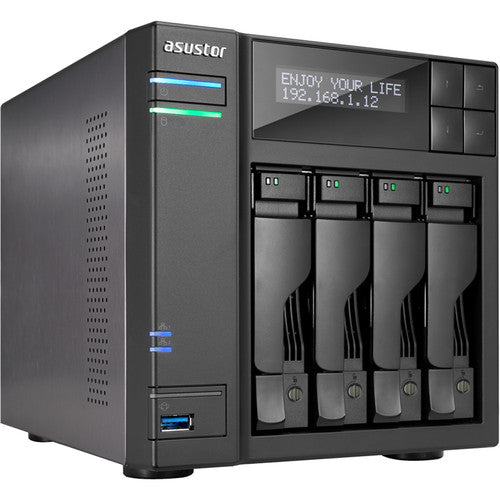

Asustor AS7004T-i5 4-Bay Prosumer SMB NAS Enclosure
Asustor AS7004T-I5 Specs
General
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet |
| Total Storage Capacity | 0 GB |
| Max Supported Capacity | 40 TB |
| Installed Devices / Modules Qty | 0 (installed) / 4 (max) |
| Width | 6.7 in |
| Depth | 9.1 in |
| Height | 7.3 in |
| Weight | 8.6 lbs |
| Built-In Devices | Status LCD, LED panel |
Processor / Memory
| Processors Installed | 1 x Intel Core i5 3 GHz |
| Number of Cores | Quad-Core |
| Max Supported Qty | 1 |
| RAM | 8 GB (installed) / 16 GB (supported) - DDR3 |
Storage Controller
| Type | RAID |
| Interface Type | SATA 6Gb/s / eSATA |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD |
Networking
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Network / Transport Protocol | TCP/IP, iSCSI, DDNS, SFTP |
| Remote Management Protocol | HTTP, HTTPS, SSH |
| Network Services Compatibility | Microsoft Active Directory (AD), DDNS, Microsoft CIFS, Network File System (NFS), FTP, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV) |
| Features | Firewall protection, load balancing, VLAN support, wake on LAN (WOL), E-mail alert, IPv6 support, iTunes server, Jumbo Frames support, SMS alert, BitTorrent Client, UPnP Media Server, IPv4 support, cloud backup, Link Aggregation |
| Encryption Algorithm | SSL, TLS, 256-bit AES, AES-NI |
| Compliant Standards | IEEE 802.3ad (LACP), UPnP |
Expansion / Connectivity
| Expansion Bays | 4 (total) / 4 (free) x hot-swap - 2.5" / 3.5" |

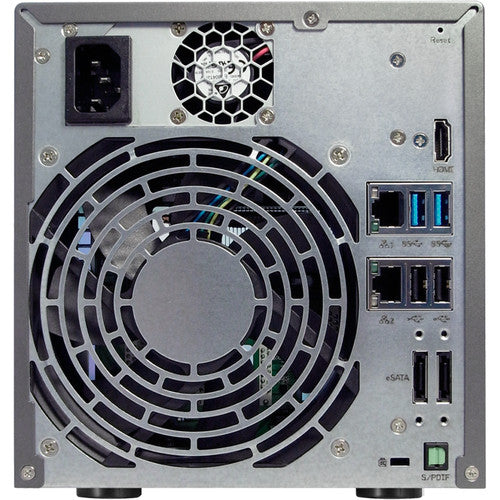

| Interfaces | 3 x USB 3.0 - Type A 2 x USB 2.0 - Type A 2 x eSATA 2 x Ethernet 1000Base-T - RJ-45 1 x HDMI output 1 x SPDIF out |
Miscellaneous
| Cables Included | 2 x network cable |
| Features | Built-in cooling fan, UPS support, Citrix Ready, VMware Ready, S.M.A.R.T. support |
| Compliant Standards | VCCI, C-Tick, BSMI, FCC |
Power
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V |
| Power Consumption Operational | 39.1 Watt |
| Power Provided | 250 Watt |
Software / System Requirements
| Storage Operating System | ASUSTOR Data Master (ADM) 2.7 |
| Software Included | Drivers & Utilities |
| OS Required | UNIX, Linux, Microsoft Windows XP, Microsoft Windows Server 2003, Microsoft Windows 7, Microsoft Windows Vista, Apple MacOS X 10.6 or later, Microsoft Windows Server 2008, Windows 8, Microsoft Windows Server 2012, Windows 10 |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
Environmental Parameters
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 5 - 95% |
| Sound Emission | 20.7 dB |
Packaging Info
| Package Weight | 10.95 lb |
| Box Dimensions (LxWxH) | 12.8 x 11.9 x 9.4" |
