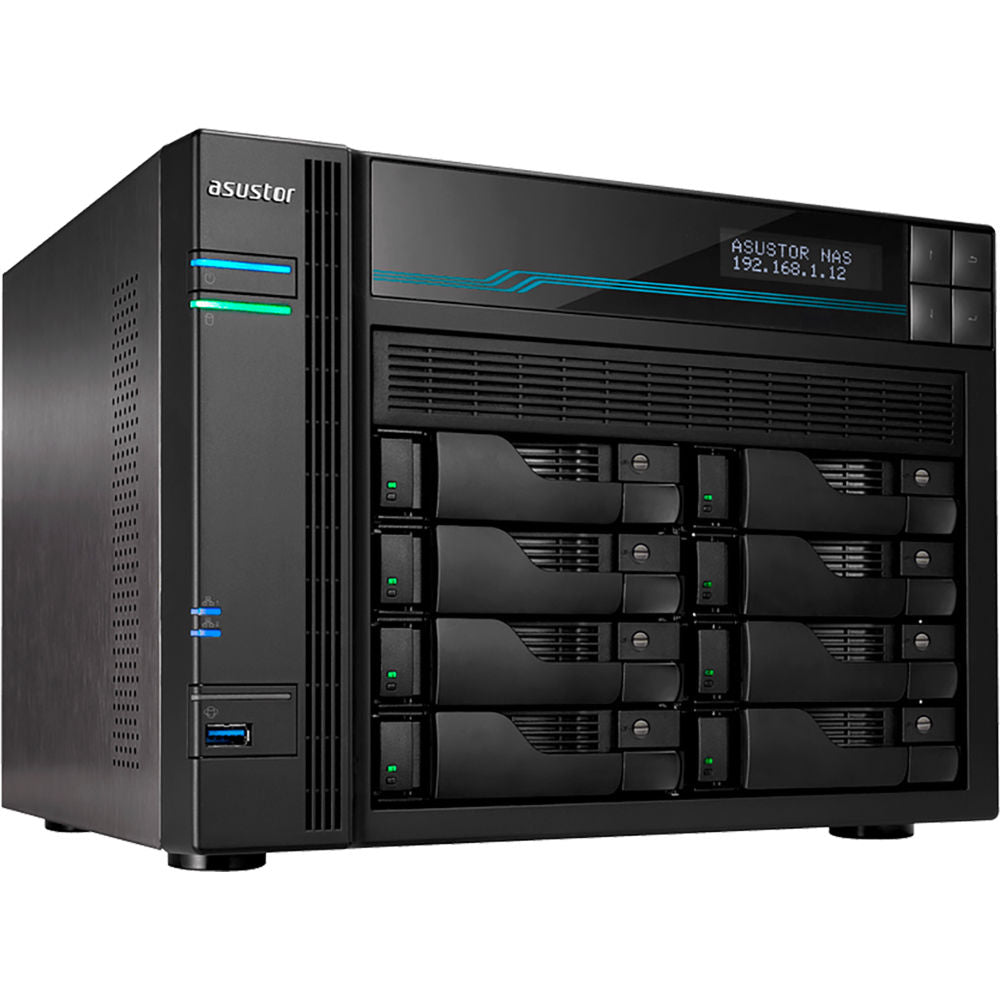

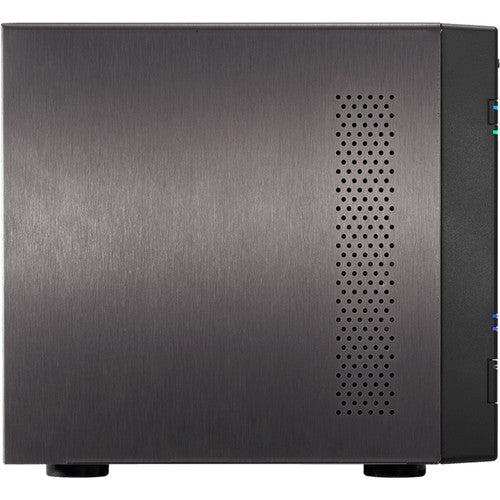

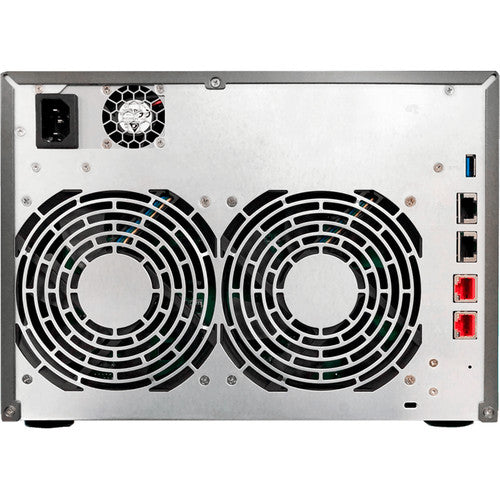

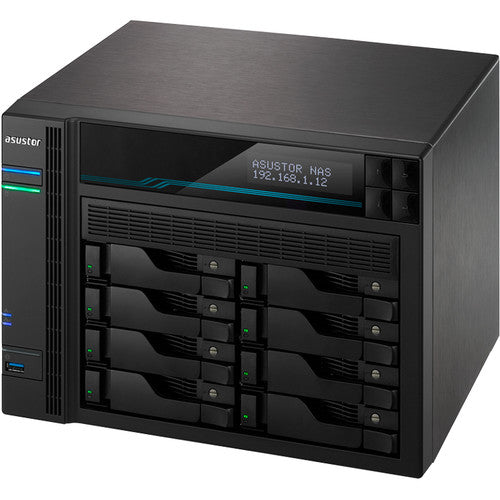

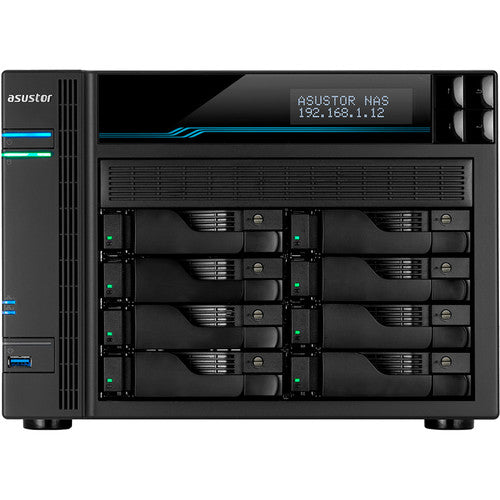

Asustor AS6508T Lockerstor 8 8-Bay NAS Server Enclosure
Asustor Lockerstor 8 Specs
General
Number of Bays | 8 x 2.5"/3.5" 2 x M.2 (2280) |
Media Card Slots | None |
Maximum Filled Capacity | 256 TB (with Expansion) |
Connections | 2 x USB Type-A (USB 3.1 / USB 3.2 Gen 1 (5 Gb/s)) 2 x RJ45 (10GbE) 2 x RJ45 (5GbE) |
Compatible Drive Interface | SATA III, NVMe |
Form Factor | Desktop |
RAID Modes | RAID 0, 1, 10, 5, 6, JBOD, Single |
Link Aggregation and Failover Support | Yes |
Wake on LAN | Yes |
Drives
Type | None |
Computing
Processor | Intel ATOM C3538 Quad-Core |
Clock Speed | Base: 2.1 GHz |
Total Installed Memory | 8 GB DDR4 |
User-Replaceable Memory | 1 x 8 GB |
Total Memory Slots | 2 x SO-DIMM |
Maximum Memory Capacity | 32 GB |
Networking
Supported Protocols | AFP CIFS/SMB FTP HTTP HTTPS NFS Proxy Rsync SFTP SMB 3.0 SNMP SSH Syslog TFTP WebDAV iSCSI |
iSCSI LUN | 256 |
iSCSI Target | 256 |
Max Cameras Supported | 4 |
Max Concurrent Connections | 512 |
Max Folders | 512 |
Max Groups | 512 |
Max User Accounts | 4096 |
Software
Installed Operating System | ADM 3.4 |
OS Compatibility | Windows XP or Later Windows Server 2003 or Later macOS 10.6 or Later UNIX Linux |
File System Formats Supported | Internal: Btrfs, EXT4 External: Btrfs, EXT3, EXT4, FAT32, HFS+, NTFS, exFAT |
Supported Browsers | Chrome, Edge, Firefox, Internet Explorer, Safari |
Supported Languages | Czech Danish Dutch English Finnish French German Hungarian Italian Japanese Korean Norwegian Polish Portuguese Russian Simplified Chinese Spanish Traditional Chinese Turkish |
Electrical
Power Consumption | 66.9 W |
Power Source | AC Adapter |
PSU Wattage | 1 x 250 W |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Security
Encryption | 256-Bit AES |
Security Features | None |
Environmental
Operating Temperature | 32 to 104°F / 0 to 40°C |
Operating Humidity | 5 to 95% |
Certifications | BSMI, C-Tick, CE, FCC, VCCI, as per Manufacturer |
Physical
Cooling | 2 x PWM 120 mm Fans |
Noise Level | 22 dBA |
Status Monitoring | LCD Screen |
Dimensions | 11.54 x 8.48 x 9.06" / 293 x 215.5 x 230 mm |
Weight | 13.67 lb / 6.2 kg |
Packaging Info
Package Weight | 18.905 lb |
Box Dimensions (LxWxH) | 15.7 x 15.5 x 13.7" |
