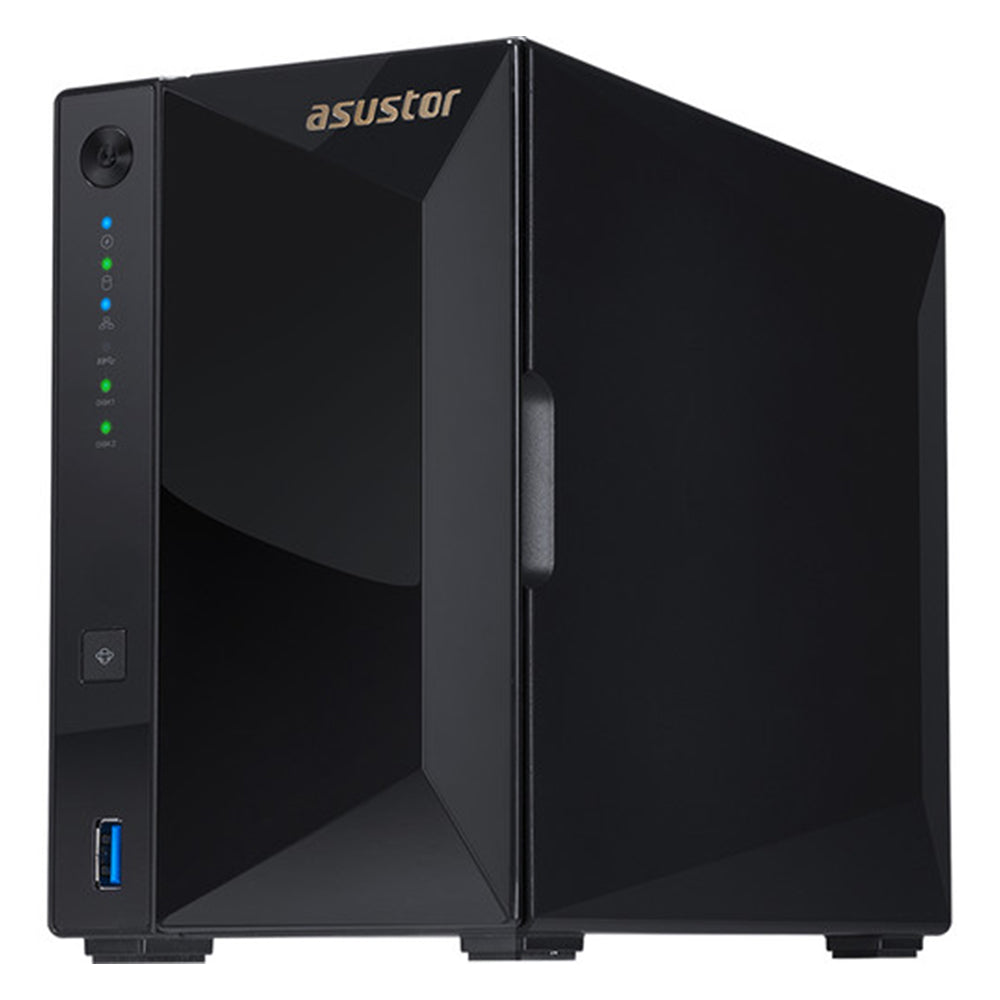

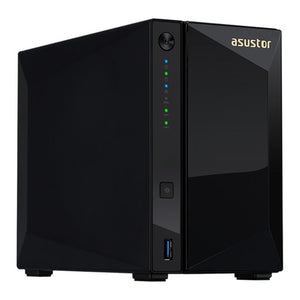

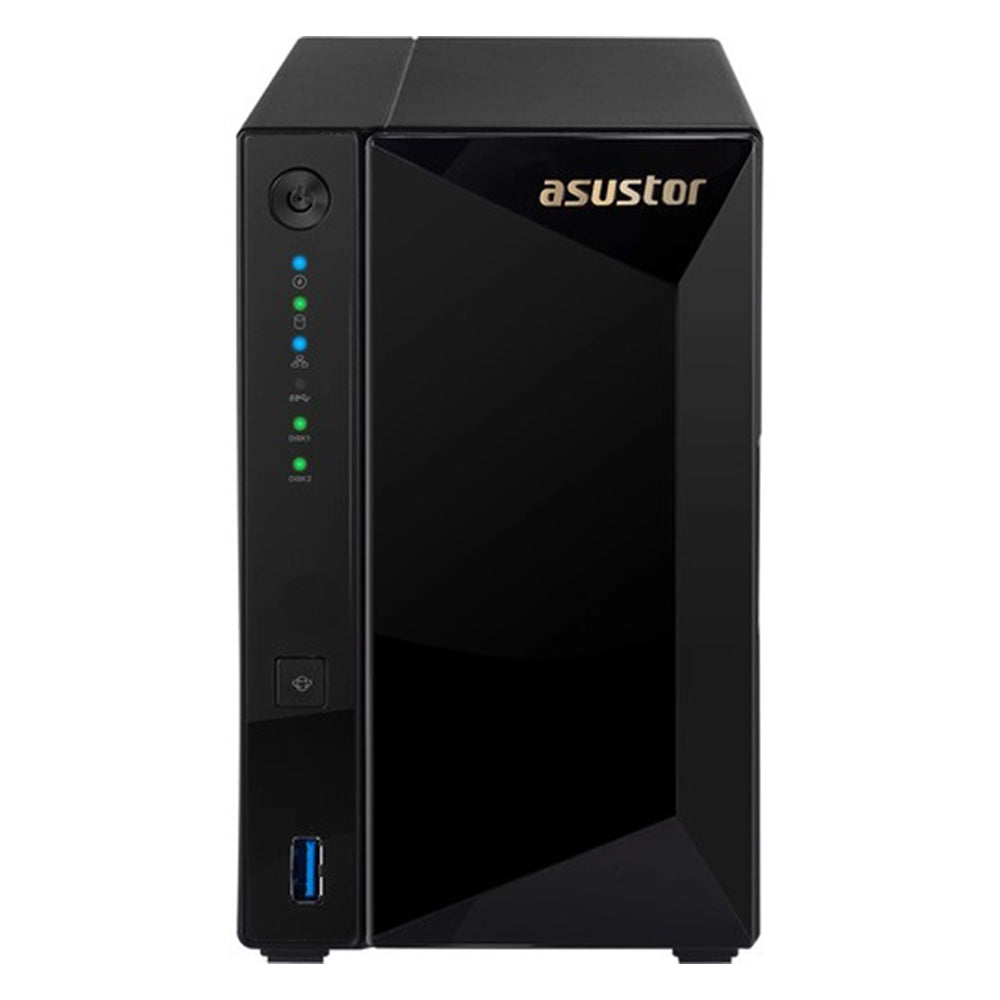

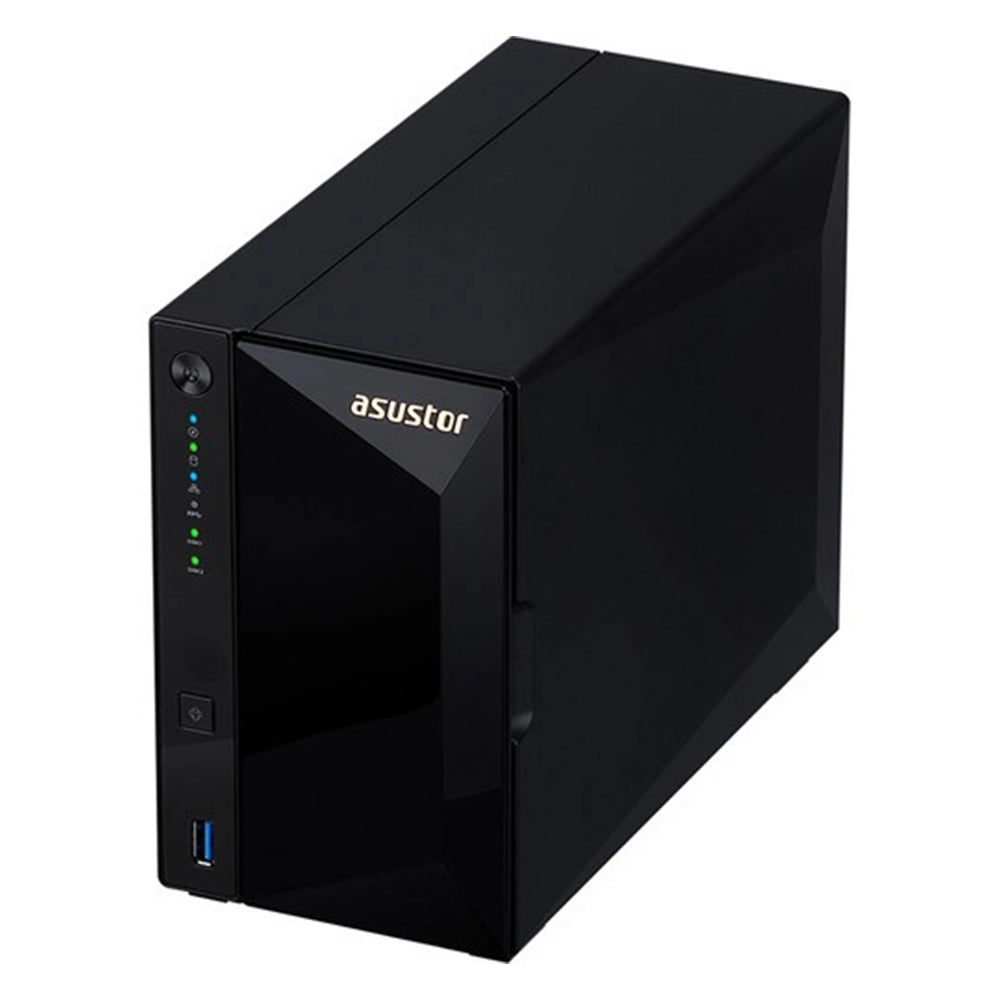

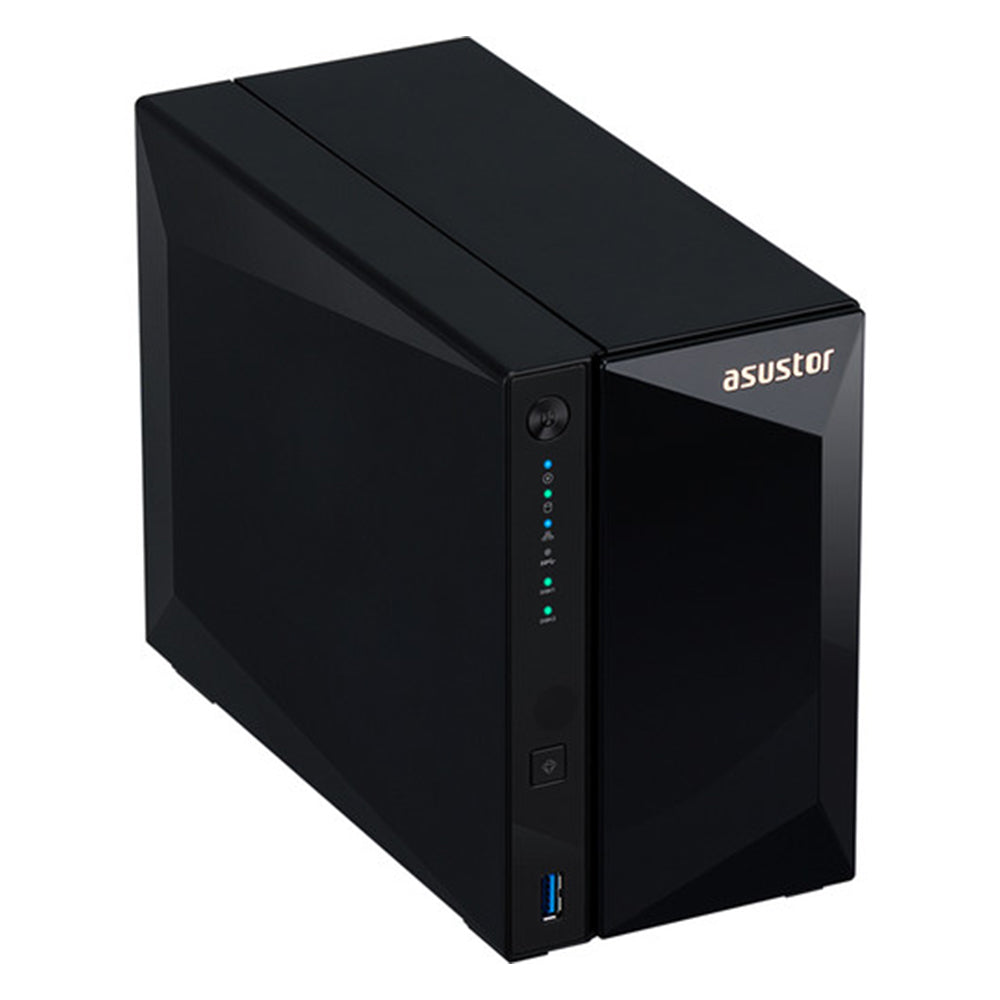

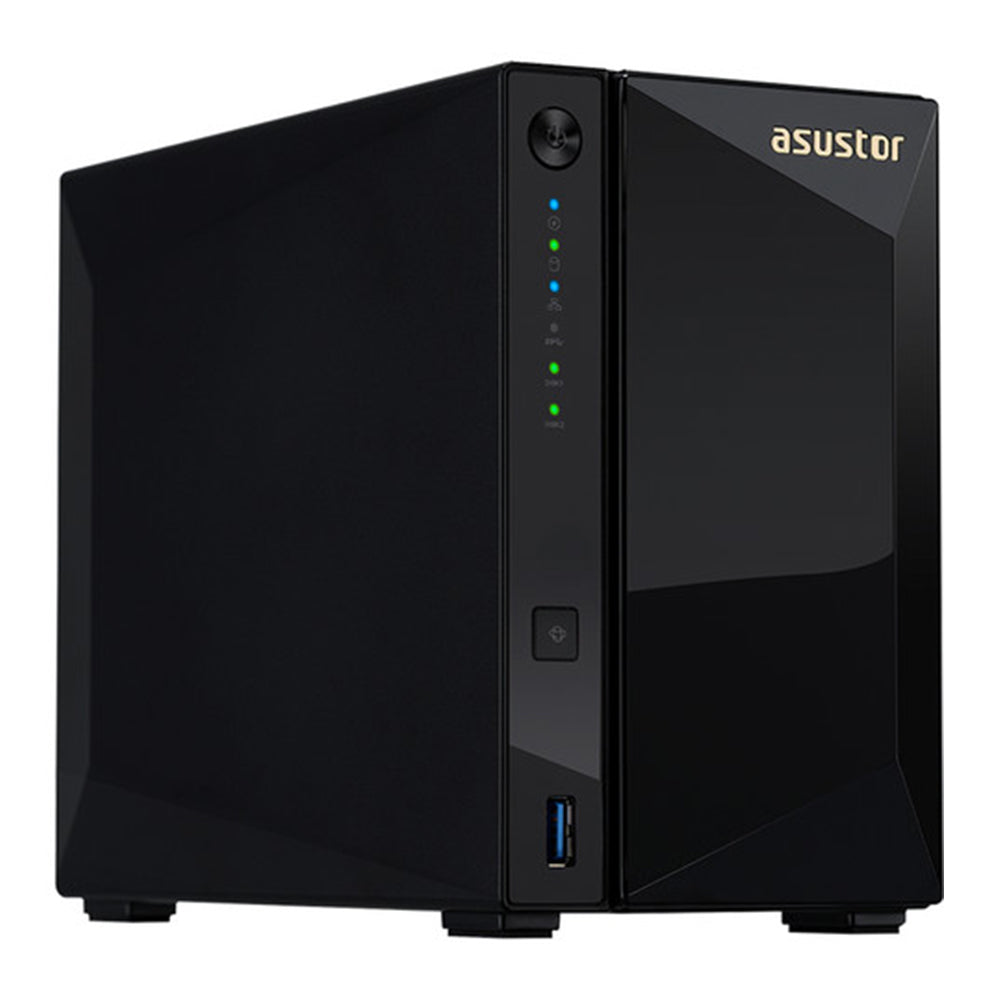

Asustor AS4002T 2-Bay NAS Enclosure
Asustor AS10 Specs
General
| Number of Bays | 2 x 3.5" |
| Media Card Slots | None |
| Maximum Filled Capacity | 32 TB 160 TB (with Expansion) |
| Connections | 2 x USB Type-A (USB 3.1 / USB 3.2 Gen 1 (5 Gb/s)) 1 x RJ45 |
| Compatible Drive Interface | SATA II, SATA III |
| Form Factor | Desktop |
| RAID Modes | RAID 0, 1, JBOD |
Drives
| Type | None |
Computing
| Processor | Marvell ARMADA-385 Dual-Core |
| Clock Speed | Base: 1.6 GHz |
| Total Installed Memory | 512 MB DDR3 |
Networking
| Supported Protocols | AFP CIFS/SMB FTP HTTP HTTPS NFS Proxy Rsync SFTP SMB 3.0 SNMP SSH Syslog TFTP WebDAV iSCSI |
| iSCSI LUN | 64 |
| iSCSI Target | 64 |
| Max Concurrent Connections | 128 |
| Max Folders | 256 |
| Max Groups | 256 |
Software
| Installed Operating System | ADM |
| OS Compatibility | Windows XP Windows Vista Windows 7 Windows 8 Windows 10 Windows Server 2003 Windows Server 2008 Windows Server 2012 macOS 10.6 or Later UNIX Linux |
| File System Formats Supported | Internal: Btrfs, EXT4 External: Btrfs, EXT3, EXT4, FAT32, HFS+, NTFS, exFAT |
| Supported Browsers | Chrome, Edge, Firefox, Internet Explorer, Safari |
| Supported Languages | Czech Danish Dutch English Finnish French German Hungarian Japanese Norwegian Polish Portuguese Russian Simplified Chinese Spanish Traditional Chinese Turkish |
Electrical
| Power Consumption | 14.1 W (Typical) 6.9 W (Idle) |
| Power Source | AC Adapter |
| PSU Wattage | 1 x 65 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Security
| Encryption | 256-Bit AES |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 5 to 95% |
Physical

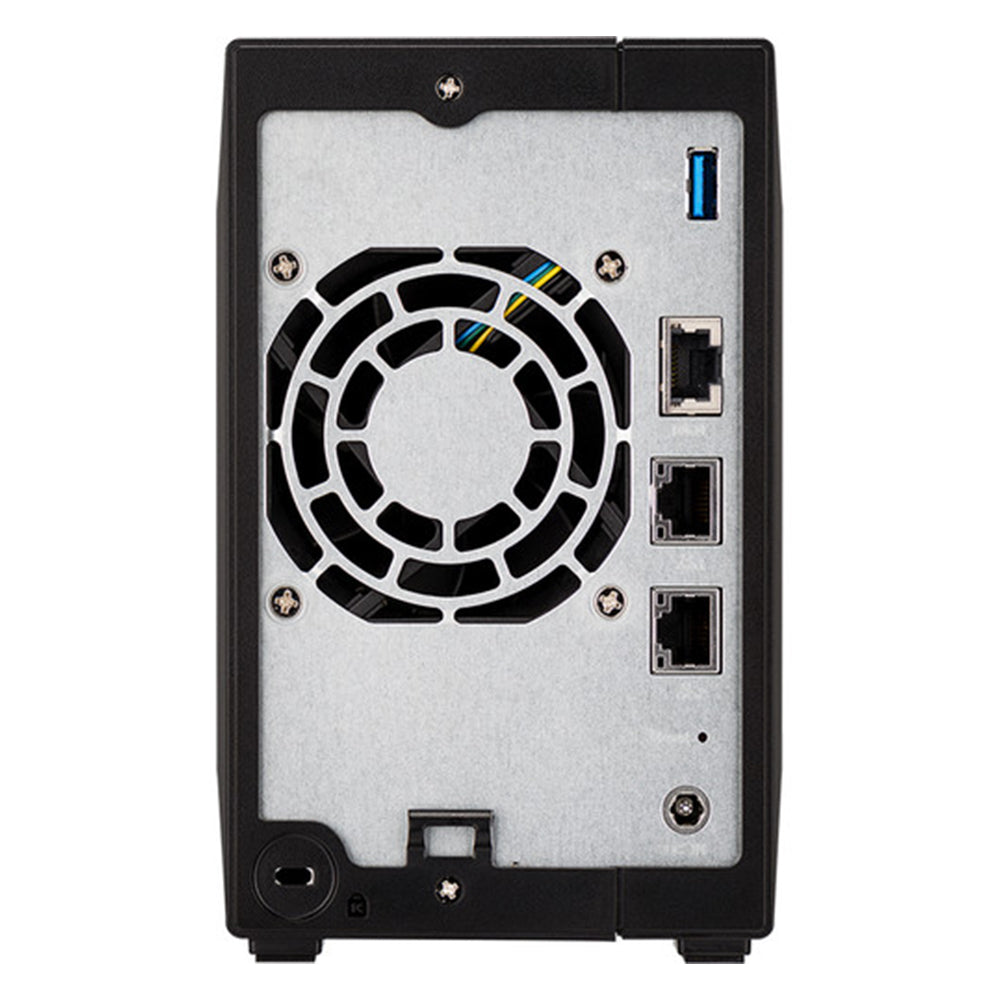

| Cooling | 1 x 70 mm Fan |
| Noise Level | 19 to 32 dBA |
| Dimensions | 4.02 x 6.5 x 8.58" / 102 x 165 x 218 mm |
| Weight | 2.18 lb / 0.99 kg |
Packaging Info
| Package Weight | 4.545 lb |
| Box Dimensions (LxWxH) | 12.8 x 9.4 x 5.7" |
