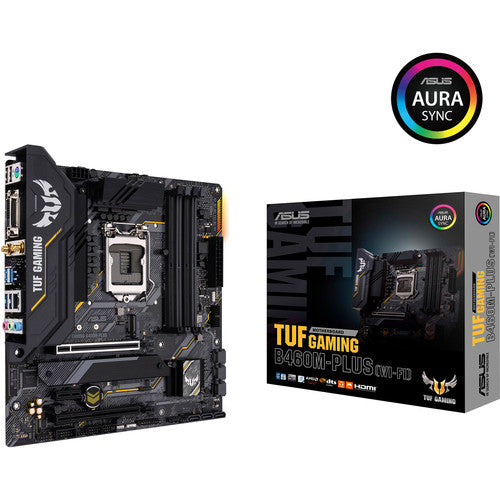

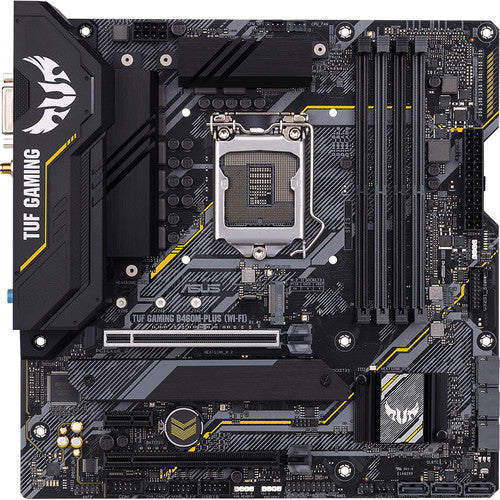

ASUS TUF GAMING B460M-PLUS Wi-Fi LGA 1200 Micro-ATX Motherboard

  • ₱8,180.00
    Unit price per


ASUS Gaming B460M-Plus Specs

CPU
Chipset Intel B460
CPU Socket LGA 1200
Back Panel I/O
USB 4 x USB 3.1 / USB 3.2 Gen 1 Type-A
2 x USB 2.0 Type-A
Display 1 x DisplayPort
1 x HDMI
1 x DVI-D
Audio 3 x 3.5 mm
Ethernet / Controller 1 x Intel I219-V Gigabit
PS/2 1 x Combo
Wi-Fi Antenna 2 x Connector
Memory
Memory Slots 4 x 288-Pin
Memory Support DDR4 2133, 2400, 2666, 2800, 2933 MHz
Maximum Capacity 128 GB
Channel Architecture Dual Channel
ECC Support Non-ECC Unbuffered
Storage Expansion
SATA 6 x SATA III
M.2 1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA (Unspecified))
1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4)
Optane Memory Support Yes
RAID Support RAID 0, 1, 5, 10
Internal I/O
Expansion Slots 1 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (x4 mode)
1 x PCIe 3.0 x1
USB 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support 2-Way AMD CrossFireX
Air Cooling 1 x 4-Pin CPU
3 x 4-Pin System
Power Connectors 1 x 24-Pin Mainboard
1 x 8-Pin ATX
LED Header 2 x RGB
Diagnostics Clear CMOS
Legacy 1 x Serial
BIOS
ROM 128 Mb
Front Panel I/O
I/O Connection Headers AAFP
Audio
Audio Codec Realtek ALC S1200A (7.1-Channel)
Wireless
Bluetooth 5.1
Wi-Fi Wi-Fi 6 (802.11ax)
Software
Supported Operating Systems Windows 10 (64-Bit)
Physical
Form Factor Micro-ATX
Dimensions 9.6 x 9.6" / 24.4 x 24.4 cm
Packaging Info
Package Weight 2.965 lb
Box Dimensions (LxWxH) 10.9 x 10.5 x 2.7"
