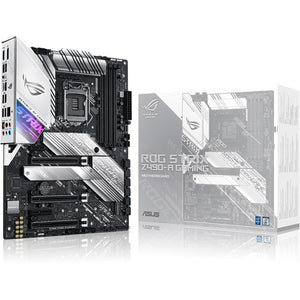

ASUS Republic of Gamers Strix Z490-A Gaming LGA 1200 ATX Motherboard

ASUS Republic of Gamers Strix Z490-A Gaming LGA 1200 ATX Motherboard

  • ₱14,710.00
    Unit price per


ASUS Z490-A Gaming Specs

CPU
Chipset Intel Z490
CPU Socket LGA 1200
Back Panel I/O
USB 1 x USB 3.1 / USB 3.2 Gen 2 Type-C
1 x USB 3.1 / USB 3.2 Gen 2 Type-A
4 x USB 3.1 / USB 3.2 Gen 1 Type-A
2 x USB 2.0 Type-A
Display 1 x DisplayPort 1.4
1 x HDMI 1.4b
Audio 5 x 3.5 mm
1 x S/PDIF
Ethernet / Controller 1 x Intel I225-V 2.5Gigabit
Buttons BIOS Flashback
Memory
Memory Slots 4 x 288-Pin
Memory Support DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4500, 4600 MHz
Maximum Capacity 128 GB
Channel Architecture Dual Channel
ECC Support Non-ECC Unbuffered
Storage Expansion
SATA 6 x SATA III
M.2 1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III)
1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4)
Optane Memory Support Yes
RAID Support RAID 0, 1, 5, 10
Internal I/O
Expansion Slots 3 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 3.0 x4 (x2 mode)
1 x PCIe 3.0 x1
USB 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support 2-Way AMD CrossFireX
Air Cooling 1 x 4-Pin M.2
1 x 4-Pin CPU
1 x 4-Pin Assistant
2 x 4-Pin System
1 x Thermal Sensor
Liquid Cooling 1 x 4-Pin Pump
Power Connectors 1 x 24-Pin Mainboard
1 x 8-Pin ATX
1 x 4-Pin ATX
Security Chassis Intrusion
LED Header 3 x RGB
Diagnostics Clear CMOS
Add-On 1 x Thunderbolt Card Header
BIOS
ROM 192 Mb
Front Panel I/O
I/O Connection Headers AAFP, USB 3.1 / USB 3.2 Gen 1
Audio
Audio Codec SupremeFX S1220A (8-Channel)
Wireless
Module Support 1 E Key M.2
Software
Supported Operating Systems Windows 10 (64-Bit)
Physical
Form Factor ATX
Dimensions 12 x 9.6" / 30.48 x 24.38 cm
Packaging Info
Package Weight 3.915 lb
Box Dimensions (LxWxH) 13.4 x 10.7 x 2.7"
