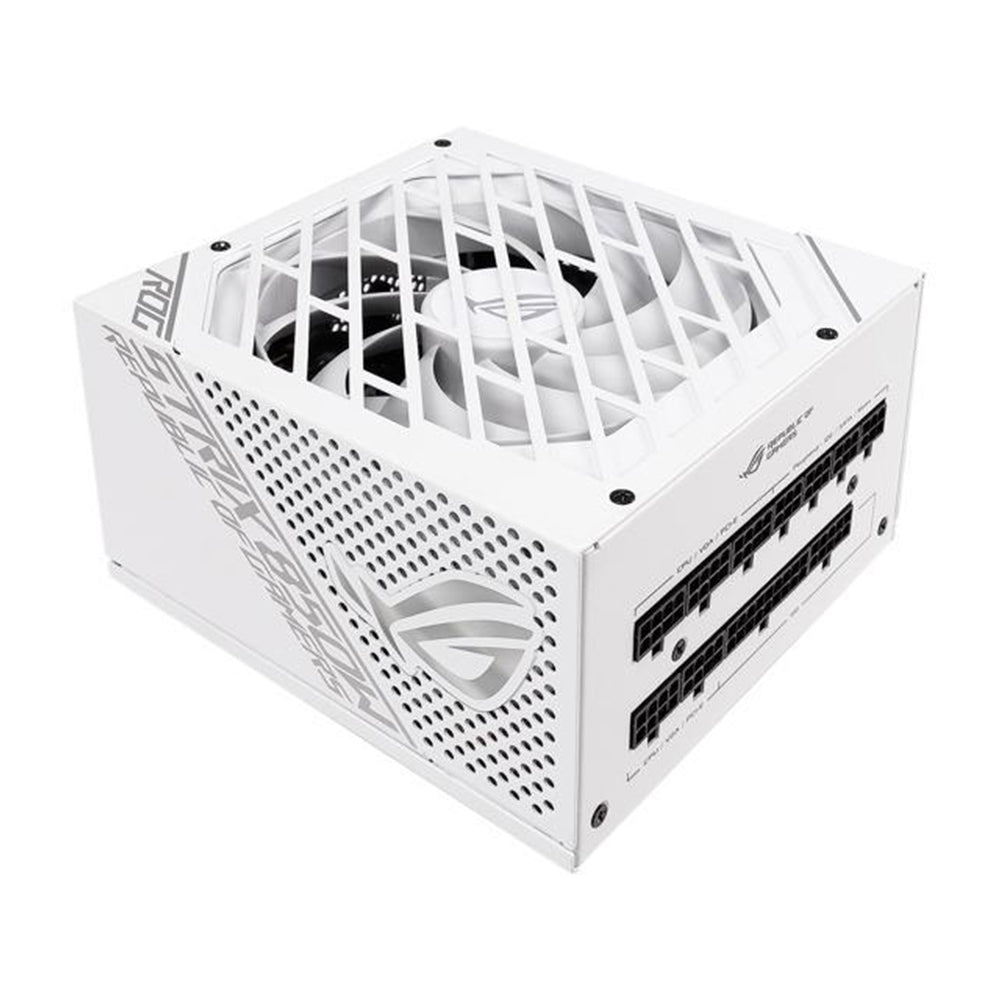

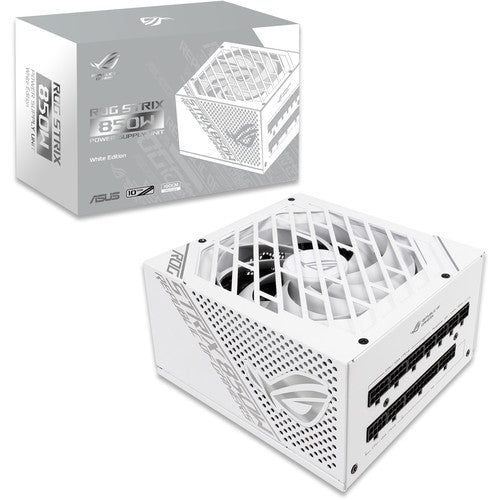

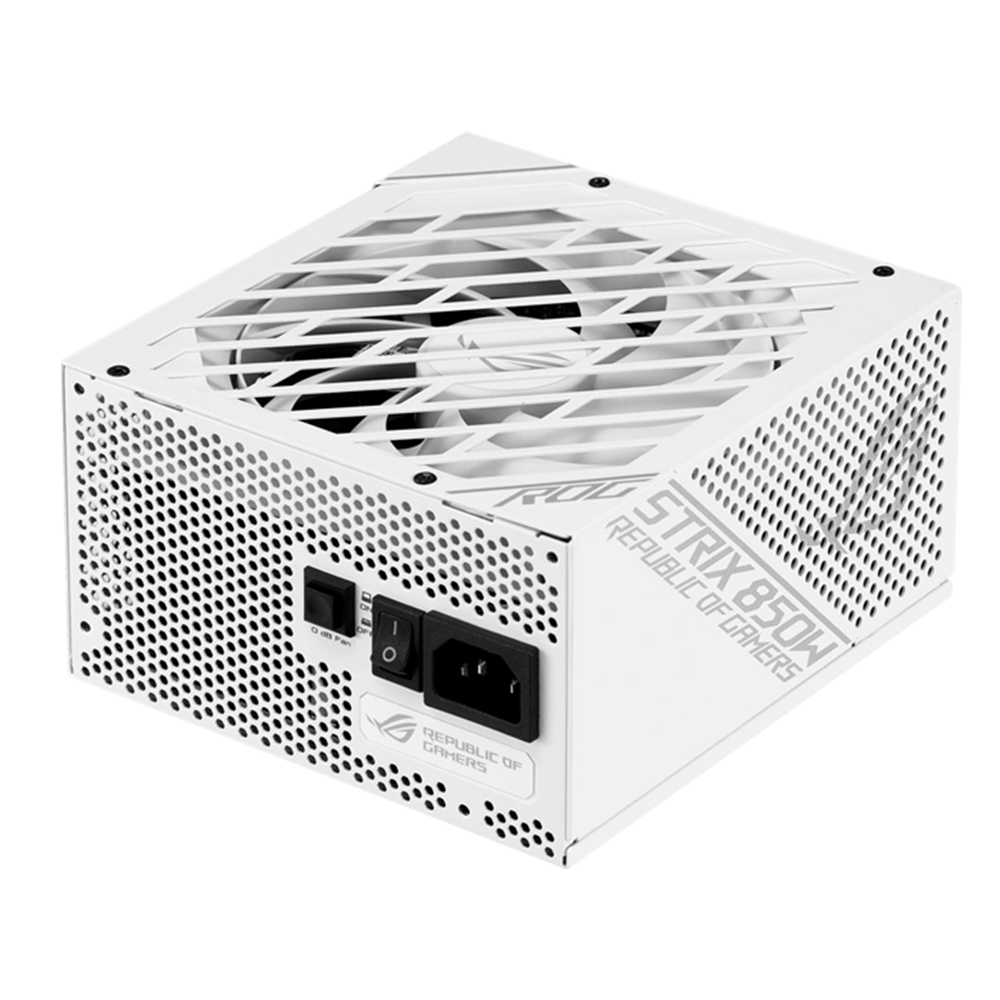

ASUS Republic of Gamers Strix 850G 850W 80 PLUS Gold Modular Power Supply (White)
ASUS 850G Specs
Connectivity
| Total Connectors | 1 x 20+4-Pin ATX Motherboard 2 x 4+4-Pin EPS CPU 6 x 6+2-Pin PCIe 8 x 15-Pin SATA 6 x 4-Pin Peripheral / Molex |
| Cable Design | Modular |
| ATX Connector Distance | 24" / 610 mm |
| EPS Connector Distances | 39.4" / 1000 mm |
Electrical
| Total Wattage | 850 W |
| Number of +12 V Rails | 1 |
| Combined Power for +12 V | 840 W |
| Max Load for +12 V | 70 A |
| Combined Power for +3.3/+5 V | 100 W |
| Max Load for +3.3 V | 20 A |
| Max Load for +5 V | 20 A |
| Max Power for +5 Vsb | 15 W |
| Max Load for +5 Vsb | 3 A |
| Max Power for -12 V | 3.6 W |
| Max Load for -12 V | 0.3 A |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
General
| Efficiency Rating | 80 PLUS Gold |
Cooling
| Fan Size | 135 mm |
| Bearing Type | Ball |
Physical
| Form Factor | ATX |
| Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection |
| Certifications | RoHS, as per Manufacturer |
| Dimensions | 0.63 x 0.34 x 0.59" / 16 x 8.6 x 15 mm |
| Weight | 0 lb / 1.83 g |
