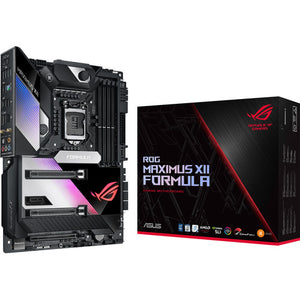

ASUS Republic of Gamers Maximus XII Formula LGA 1200 ATX Motherboard

ASUS Republic of Gamers Maximus XII Formula LGA 1200 ATX Motherboard

  • ₱29,415.00
    Unit price per


ASUS Maximus XII Formula Specs

CPU
Chipset Intel Z490
CPU Socket LGA 1200
Back Panel I/O
USB 3 x USB 3.1 / USB 3.2 Gen 2 Type-A
1 x USB 3.1 / USB 3.2 Gen 2 Type-C
6 x USB 3.1 / USB 3.2 Gen 1 Type-A
Thunderbolt None
Display None
Audio 5 x 3.5 mm
1 x S/PDIF
Ethernet / Controller 1 x Intel I225-V 2.5Gigabit
1 x Aquantia AQC107 10GbE
PS/2 1 x Combo
Wi-Fi Antenna 2 x Connector
Buttons BIOS Flashback, Clear CMOS
Memory
Memory Slots 4 x 288-Pin
Memory Support DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4500, 4600, 4700, 4800 MHz
Maximum Capacity 128 GB
Channel Architecture Dual Channel
ECC Support Non-ECC Unbuffered
Storage Expansion
SATA 6 x SATA III
M.2 1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III)
2 x M Key 2242, 2260, 2280 (PCIe 3.0 x4)
U.2 None
Optane Memory Support Yes
RAID Support RAID 0, 1, 5, 10
Internal I/O
Expansion Slots 2 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (x4 mode)
1 x PCIe 3.0 x1
USB 2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support 2-Way NVIDIA SLI
3-Way AMD CrossFireX
Air Cooling 1 x 4-Pin CPU
1 x 4-Pin Assistant
3 x 4-Pin System
1 x 2-Pin W_IN
2 x 2-Pin W_OUT
3 x 3-Pin W_FLOW
1 x Thermal Sensor
Liquid Cooling 2 x 4-Pin Pump
1 x Radiator Fan
Power Connectors 1 x 24-Pin Mainboard
1 x 8-Pin ATX
1 x 4-Pin ATX
LED Header 4 x RGB
Audio 1 x Speaker
Diagnostics Flash BIOS, ReTry, Start
Add-On 1 x Thunderbolt Card Header
BIOS
ROM 256 Mb
Front Panel I/O
I/O Connection Headers AAFP, USB 3.1 / USB 3.2 Gen 1
Audio
Audio Codec SupremeFX S1220 (7.1-Channel)
Wireless
Bluetooth 5.1
Wi-Fi Wi-Fi 6 (802.11ax) (MU-MIMO)
Module Support 1 E Key M.2
Software
Supported Operating Systems Windows 10 (64-Bit)
Physical
Form Factor ATX
Dimensions 12.01 x 9.61" / 30.5 x 24.4 cm
Packaging Info
Package Weight 7.32 lb
Box Dimensions (LxWxH) 14.7 x 12.2 x 4.4"
