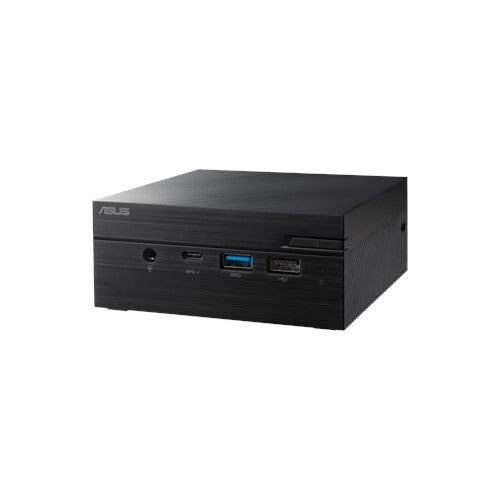

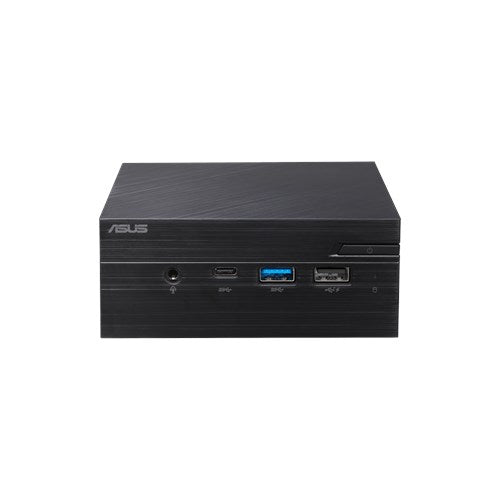

ASUS PN60 (Intel i7)

  • ₱50,190.00
    Unit price per

Model and
Spec Summary
(Core-i7 8th Gen/ 8GB/ 1TB 2.5" HDD 7200RPM/ Wired KBMS/ VESA/ 802.11ac/ Win10 PRO/ ASUS Control Center/ VGA Port)
Model Name PN60-B7233ZV
Part # 90MS01D1-M02330
CPU Generation & Platform 8th Gen (Kaby Lake-R Series)
CPU Intel®  Core™ i7-8550U
(8M, 4 Core, 1.80GHz up to 4.00GHz)
Chipset Integrated
Memory 8GB DDR4 2400MHz SO-DIMM (8GB x 1pc)
(4GB up to 32GB)
SO-DIMM Slot 2 x SO-DIMM slots
1TB 7200RPM 2.5" HDD SATA 6Gb/s
*supports NVMe and Intel® Optane™ memory (up to 16GB 2280)
Supports up to 1 x 2.5" storage HDD (up to 1TB) + 1 x M.2 2242/2280 SSD PCIe/SATA (up to 256GB)*
*Optional storage must confirmed SKU before configuring
Graphics Integrated - Intel® UHD Graphics 620
LAN Intel® 10/100/1000Mbps
Wireless Intel® 8265 802.11ac, 2x2
Bluetooth V4.2
Codec REALTEK® ALC3236-VB2 Codec, 2 Channel
Internal Speaker N/A
VESA Mounting Kit YES
Card Reader N/A
(I/O Ports)
Front 1 x USB 3.1 Gen1 Type-C (support Battery Charger 1.2)
1 x USB 3.1 Gen1 Type-A
1 x USB 2.0 Type-A
1 x Audio (Line out/ Mic in/ Headphone out)
Side 1 x Kensington slot
Rear 1 x USB 3.1 Gen1 Type-C (support DisplayPort 1.2)
2 x USB 3.1 Gen1 Type-A
1 x HDMI 1.4
1 x VGA Port (COM/DP1.2/HDMI 2.0/Intel® LAN port option)*
1 x Intel®LAN RJ45 Port
1 x DC-in
*default VGA port; optional ports must confirmed SKU before configuring
Support Ultra HD 4K YES
Dual or Multiple LCD Support up to 2 LCD Support
*via HDMI and Configurable ports; or HDMI and USB 3.1 Gen1 Type-C
(CTO from factory)
(fTPM 2.0 or TPM 2.0 chip)
Color Black
OS Win 10 PRO M12
Dimensions (WxDxH) 115 x 115 x 49 mm (0.62L)
Power Supply 65W Power Adapter
Peripherals & Accessories
Wired Keyboard + Mouse
1 x VESA Mount Kit
1 x AC Adapter
1 x Quick Start Guide w/ ACC Activation Key
1 x Warranty Card
1 x Quick Start Guide
Warranty 3-years, carry-in
