ASUS PB60G (Nvidia® Quadro® P620 - Core i7 - 9th Gen)
|
Model and Spec Summary |
PB60G (Core-i7 9th Gen/ 16GB/ 1TB 2.5" HDD 7200RPM + 256GB M.2 SSD/ Nvidia® Quadro® P620/ Wired KBMS/ VESA/ 802.11ac/ Win10 PRO/ ASUS Control Center/ DisplayPort) |
|
| Model Name | PB60G-B7266ZD | |
| Part # | 90MS01L1-M02660 | |
| CPU Generation & Platform | 9th Gen (Coffee Lake-R) | |
| CPU | Intel® Core™ i7-9700T (12M, 8 Core, 2.00GHz up to 4.30GHz) |
|
| Chipset | Intel® B360 | |
| Memory |
16GB DDR4 2400MHz SO-DIMM (8GB x 2pcs) (4GB up to 32GB) |
|
| SO-DIMM Slot | 2 x SO-DIMM slots | |
|
Storage
|
1TB 7200RPM 2.5" HDD SATA 6Gb/s + 256GB M.2 2280 SSD (SATA) *supports NVMe SSD and Intel® Optane™ memory |
|
|
Supports up to 1 x 2.5" HDD (up to 1TB) + 1 x M.2 2280 SSD PCIe G3X4/ SATA (up to 256GB)* *Optional storage must confirmed SKU before configuring |
||
| Graphics |
Nvidia® Quadro® P620 2GB GDDR5 128-bit via Graphics Module |
|
|
Networking
|
LAN | Intel® 10/100/1000 Mbps |
| Wireless | Intel® 9560 802.11ac, 2x2 Bluetooth V5.0 |
|
|
Audio
|
Codec | REALTEK® ALC3236 Codec, 2 Channel |
| Internal Speaker | OPTIONAL (1W speaker) |
|
| VESA Mounting Kit | YES | |
| Card Reader | N/A | |
|
Interface
(I/O Ports) |
Front |
1 x USB 3.1 Gen1 Type-C 2 x USB 3.1 Gen2 Type-A 2 x USB 3.1 Gen1 Type-A (1 x Quick Charge) 1 x Audio Jack 1 x Mic in Jack |
| Side | N/A | |

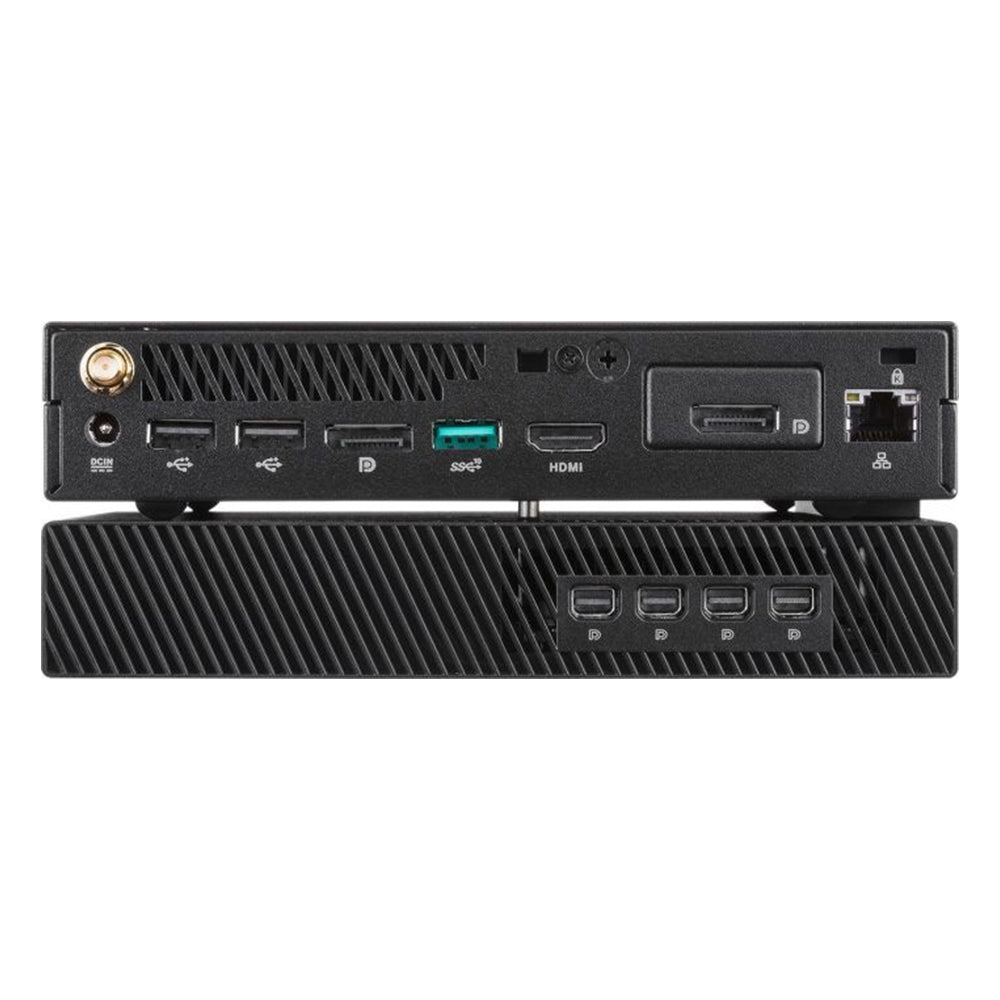

| Rear |
1 x USB 3.1 Gen2 Type-A 2 x USB 2.0 1 x HDMI 2.0 1 x DisplayPort 1.2 1 x DisplayPort 1.2 (COM/VGA port option)* 1 x RJ45 LAN Port 1 x External WiFi Antenna Port 1 x Kensington slot 1 x DC-in 1 x HDMI 2.0/ 1 x DP 1.2/ 1 x DVI (on Graphic Module) *default DisplayPort; optional ports must be confirmed before configuring |
|
| Support Ultra HD 4K | YES | |
| Dual or Multiple LCD Support |
up to 7 LCD Support *refer to OUTPUT RESOLUTION sheet for display configuration options |
|
| ODD | OPTIONAL (CTO from factory) |
|
| COM Port | OPTIONAL (CTO from factory) |
|
| TPM Onboard | OPTIONAL (fTPM or TPM chip) |
|
| Color | Black | |
| OS | Win 10 PRO M12 | |
| Dimensions (WxDxH) |
175 x 175 x 70.2 mm (2.15L) (with Graphic Module) |
|
| Power Supply | 120W Power Supply | |
|
Peripherals & Accessories
|
Wired Keyboard + Mouse | |
|
1 x VESA Mount Kit 1 x Stand 1 x AC Adapter + Power Cord 1 x Quick Start Guide w/ ACC Activation Key 1 x Warranty Card 1 x Quick Start Guide |
||
| Warranty | 3-years, carry-in | |
