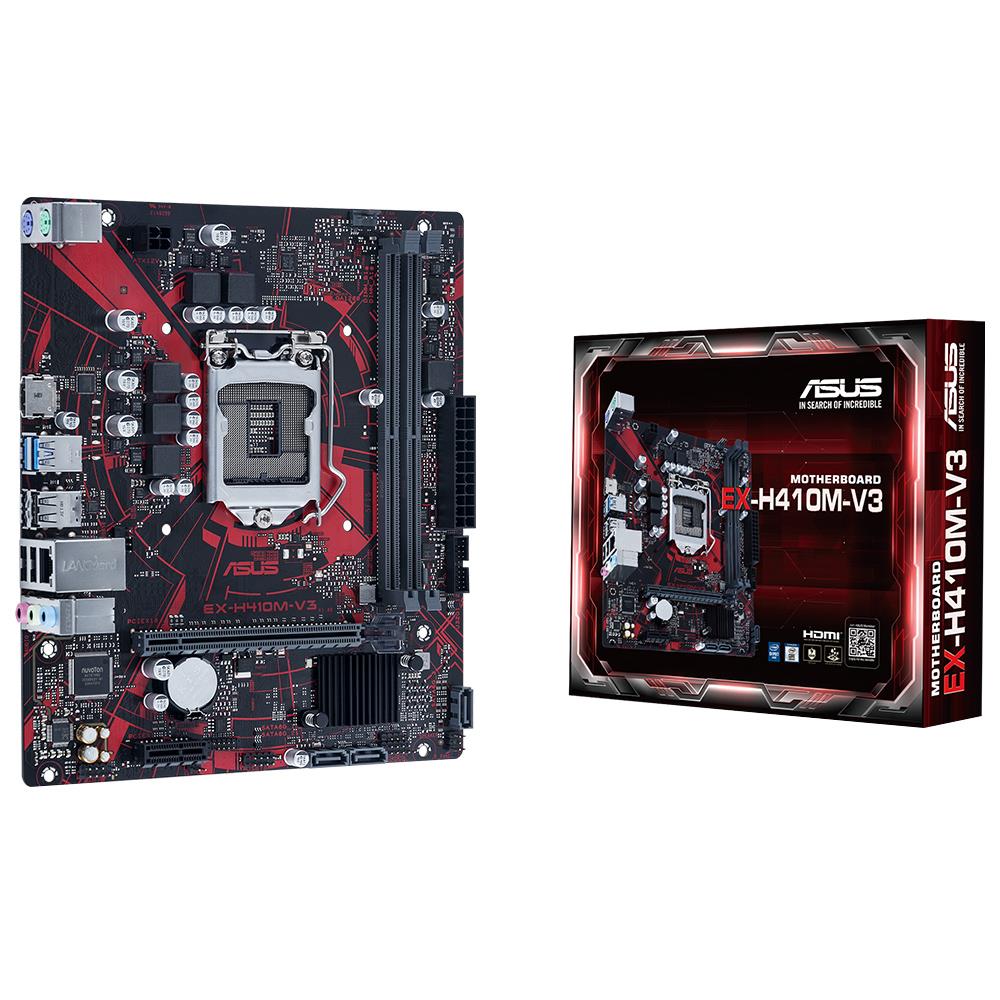

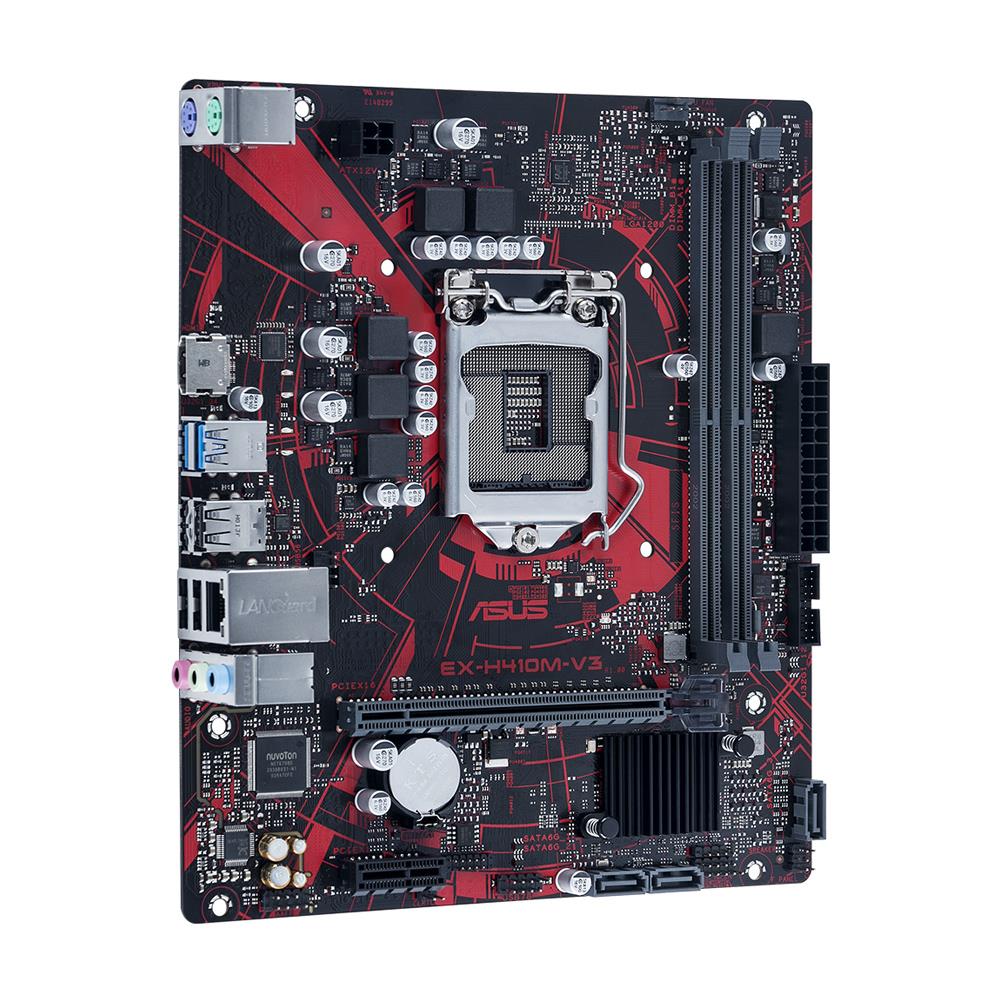

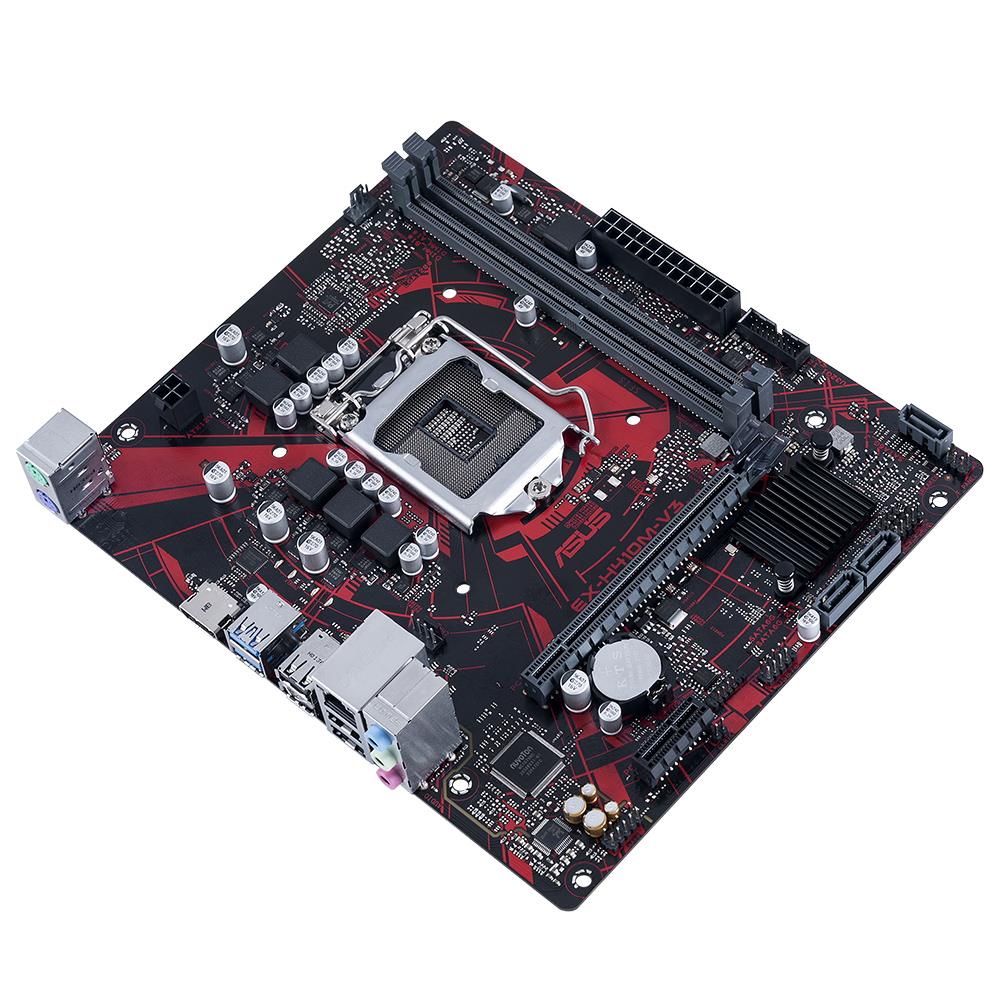

ASUS EX-H410M-V3 INTEL H410 Soket 1200 DDR4 2933MHz(O.C) USB3.2 Motherboard
CPU
Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Supports CPU up to 65 W
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Supports CPU up to 65 W
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® H410
Memory
2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic
1 x HDMI 1.4b
*Graphics specifications may vary between CPU types.
*Graphics specifications may vary between CPU types.
Expansion Slots
Intel® 10th Gen Processors
1 x PCIe 3.0 x16 (x16 mode)
Intel® H410 Chipset
1 x PCIe 3.0 x1
1 x PCIe 3.0 x16 (x16 mode)
Intel® H410 Chipset
1 x PCIe 3.0 x1
Storage
Total supports 3x SATA 6Gb/s ports
Intel® H410 Chipset :
3 x SATA 6Gb/s port(s),
Intel® H410 Chipset :
3 x SATA 6Gb/s port(s),
LAN
Realtek® RTL8111H
Audio
Realtek ALC887 8-Channel High Definition Audio CODEC *
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports
Rear USB Port ( Total 6 )
2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A)
Front USB Port ( Total 4 )
2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(2 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A)
Front USB Port ( Total 4 )
2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(2 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Special Features
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: Premium components provide better power efficiency
Non-stop Durability :
- Anti-moisture coating - Outstanding protection against moisture and corrosion
- USBGuard- 120% higher voltage tolerance
Non-stop Gaming :
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Seperated layers for left and right tracks to ensures both channels delivering the consistent and equal quality
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
Non-stop Challenger :
- ASUS iCafe Labs Certified - Top games and 100+ peripherals tested
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: Premium components provide better power efficiency
Non-stop Durability :
- Anti-moisture coating - Outstanding protection against moisture and corrosion
- USBGuard- 120% higher voltage tolerance
Non-stop Gaming :
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Seperated layers for left and right tracks to ensures both channels delivering the consistent and equal quality
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
Non-stop Challenger :
- ASUS iCafe Labs Certified - Top games and 100+ peripherals tested
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM

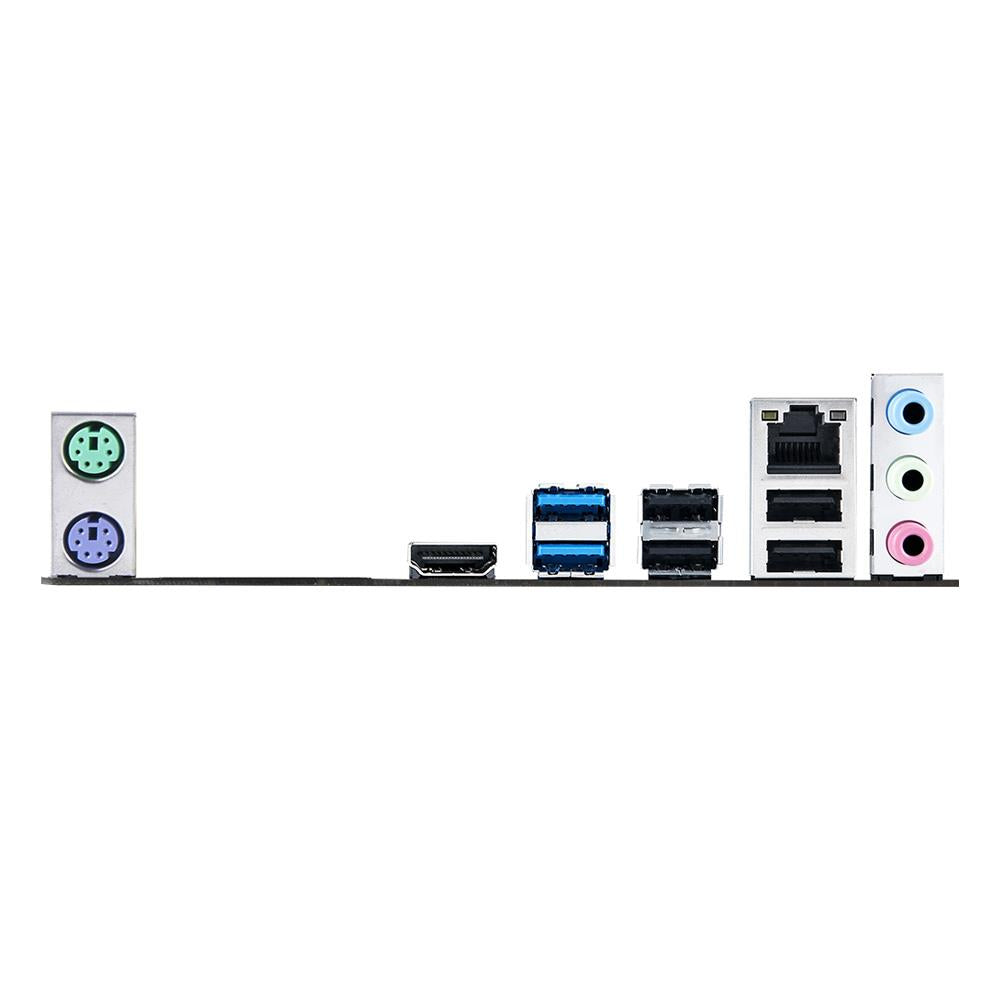

Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 1 (blue) Type-A
4 x USB 2.0
3 x Audio jack(s)
1 x PS/2 mouse (green)
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 1 (blue) Type-A
4 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
3 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x Speaker connector
1 x USB 3.2 Gen 1 connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
3 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x Speaker connector
1 x USB 3.2 Gen 1 connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
Accessories
User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Operating System
Windows® 10 64-bit
Form Factor
mATX Form Factor
8.4 inch x 7.2 inch ( 21.3 cm x 18.3 cm )
8.4 inch x 7.2 inch ( 21.3 cm x 18.3 cm )
