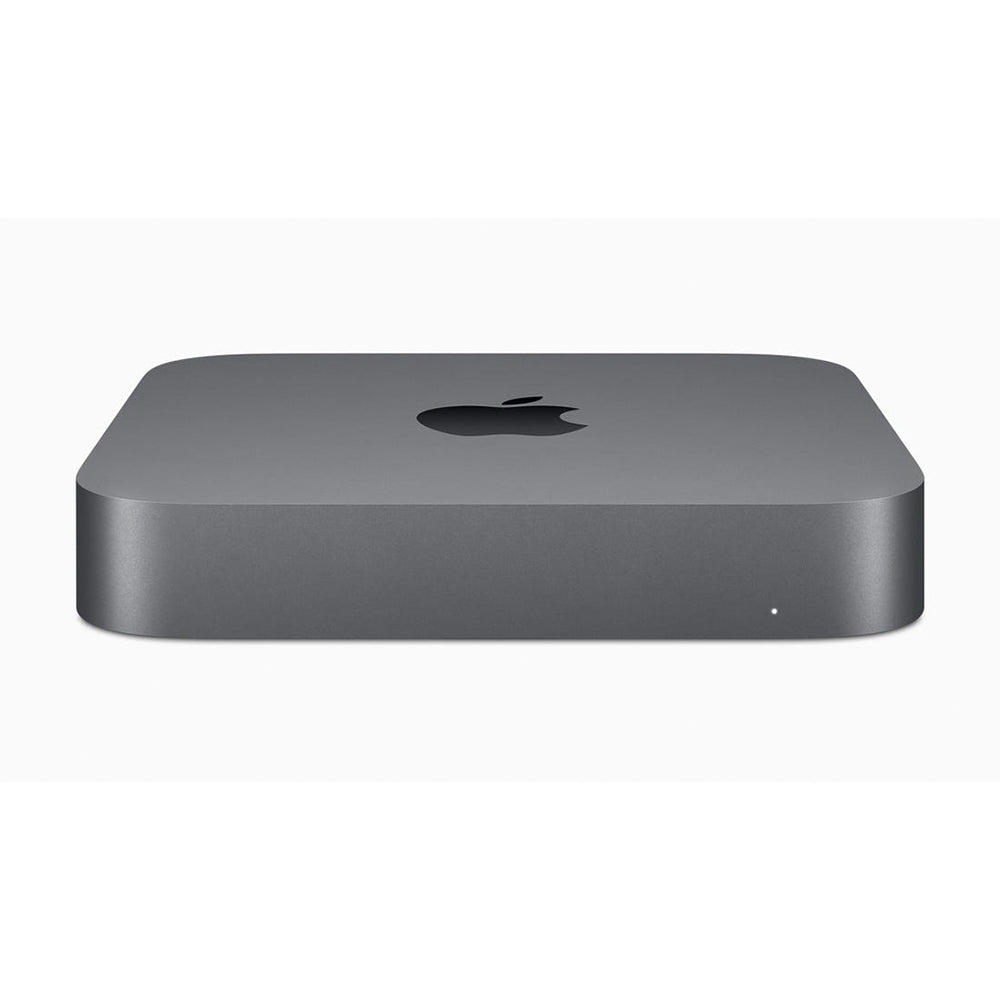

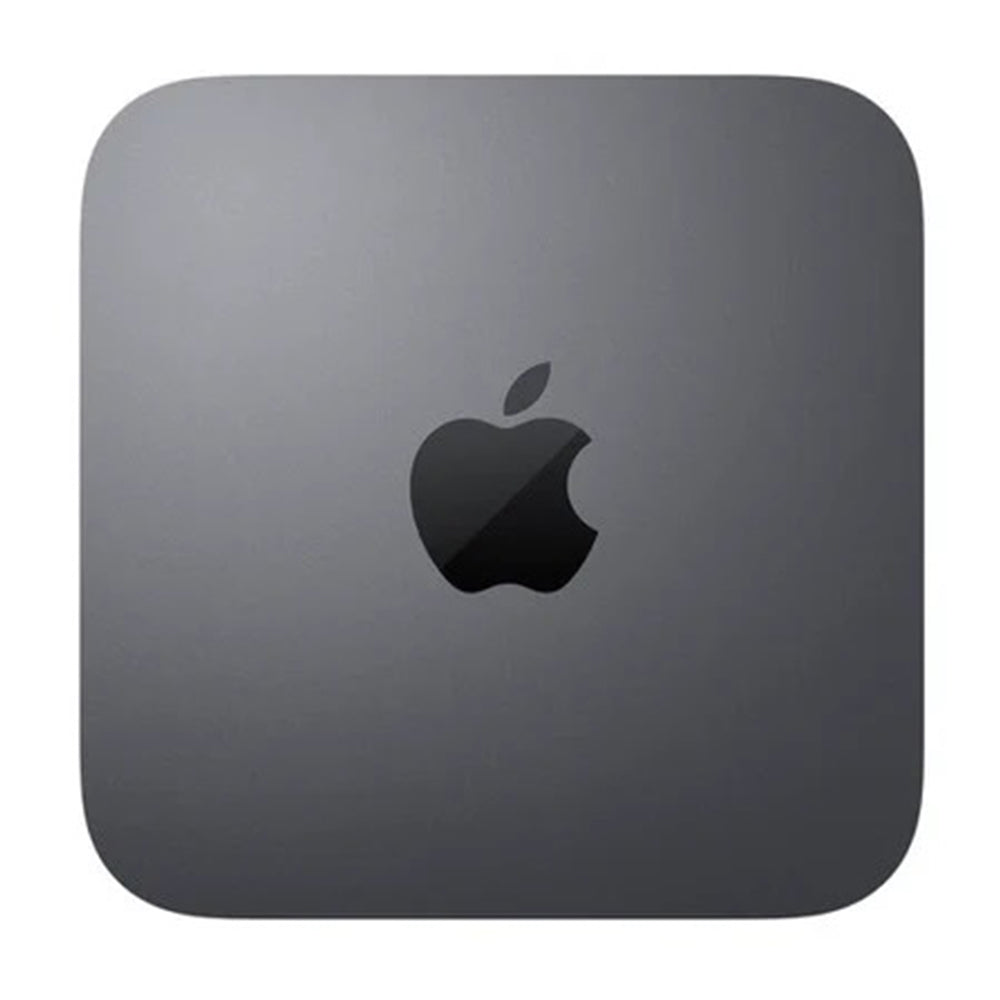

Apple Desktop Mac mini

Processor

3.6GHz quad‑core 8th‑generation Intel Core i3 with 6MB of shared L3 cache (MRTR2PP/A)
3.0GHz 6‑core 8th‑generation Intel Core i5 Turbo Boost up to 4.1GHz with 9MB shared L3 cache (MRTT2PP/A)

Memory

Configurable to:
3.2GHz 6-core Intel Core i7 Turbo Boost up to 4.6GHz 12MB shared L3 cache
8GB 2666MHz DDR4 of 2666MHz DDR4 SO-DIMM memory

Storage

Configurable to:
16GB, 32GB, or 64GB
128GB PCIe-based SSD (MRTR2PP/A)
256GB PCIe-based SSD (MRTT2PP/A)

Configurable to:
512GB, 1TB, or 2TB SSD
Height: 1.4 inches (3.6 cm)
Width: 7.7 inches (19.7 cm)
Depth: 7.7 inches (19.7 cm)
Weight: 2.9 pounds (1.3 kg)

Size and Weight

Graphics and
Video Support

Intel UHD Graphics 630

Support for the following combination of maximum concurrent display setups:
Option 1 Up to three displays:
Two displays with 4096-by-2304 resolution at 60Hz connected via Thunderbolt 3
plus one display with 4096-by-2160 resolution at 60Hz connected via HDMI 2.0

Option 2 Up to two displays:
One display with 5120-by-2880 resolution at 60Hz connected via Thunderbolt 3 plus
one display with 4096-by-2160 resolution at 60Hz connected via HDMI 2.0

Thunderbolt 3 digital video output supports

Native DisplayPort output over USB-C
Thunderbolt 2, DVI, and VGA output supported using adapters (sold separately)

HDMI 2.0 display video output

Support for up to one display with 4096-by-2160 resolution at 60Hz
DVI output using HDMI to DVI Adapter (sold separately)

Wireless

Connections and
Expansion

Configurable to:
10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ-45 connector)

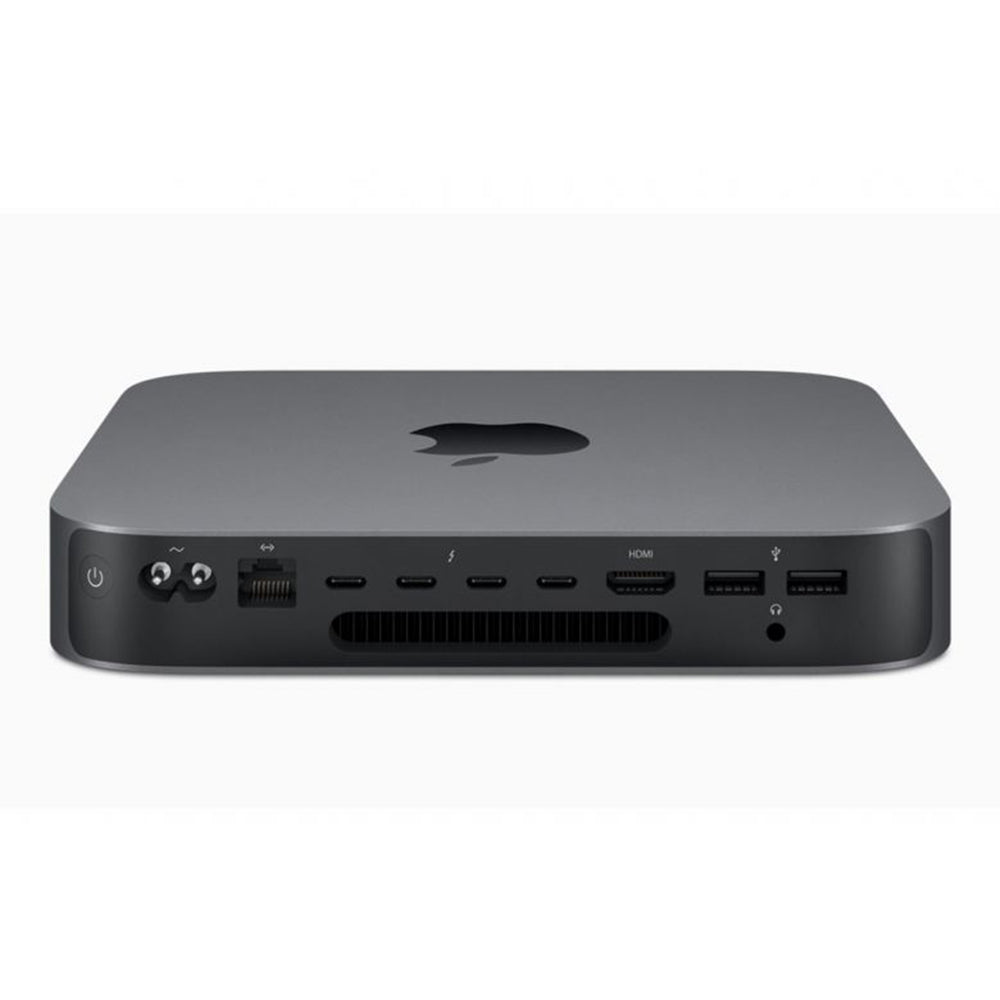

Four Thunderbolt 3 (USB-C) ports with support for:
DisplayPort
Thunderbolt (up to 40 Gbps)
USB 3.1 Gen 2 (up to 10 Gbps)
Thunderbolt 2, HDMI, DVI, and VGA supported using adapters (sold separately)

Two USB 3 ports (up to 5 Gbps)
HDMI 2.0 port
Gigabit Ethernet port (configurable to 10Gb Ethernet)
3.5 mm headphone jack

Audio

3.5 mm headphone jack

Electrical and
Operating
Requirements

Line voltage: 100-240V AC
Frequency: 50Hz to 60Hz, single phase
Maximum continuous power: 150W
Operating temperature: 10° to 35° C (50° to 95° F)
Storage temperature: –40° to 47° C (–40° to 116° F)
Relative humidity: 5% to 90% noncondensing
Operating altitude: tested up to 5,000 meters (16,400 feet)
Typical acoustical performance: Sound pressure level (operator position): 4 dBA at idle3

Operating
System

macOS Mojave
macOS is the operating system that powers everything you do on a Mac. macOS Mojave
macOS Mojave brings new features inspired by its most powerful users, but designed
for everyone. So you can get more out of every click.

Accessibility

Accessibility features help people with disabilities get the most out of their new Mac mini.
With built-in support for vision, hearing, physical and motor skills, and learning and literacy,
you can create and do amazing things.
Features include:

• VoiceOver
• Zoom
• Increase Contrast
• Reduce Motion

• Siri and Dictation
• Switch Control
• Closed Captions
• Text to Speech

Limited
Warranty
and Service

Your Mac mini comes with 90 days of free telephone support and a one-year limited warranty. Purchase the AppleCare
Protection Plan to extend your service and support to three years from your computer’s purchase date. Only the AppleCare
Protection Plan provides you with direct telephone support from Apple technical experts and the assurance that repairs
will be handled by Apple-authorized technicians using genuine Apple parts. For more information, visit Apple Support or
call 800-823-2775.

In the Box

Mac Software
Logic Pro X
Final Cut Pro X
Mac mini
Power cord
