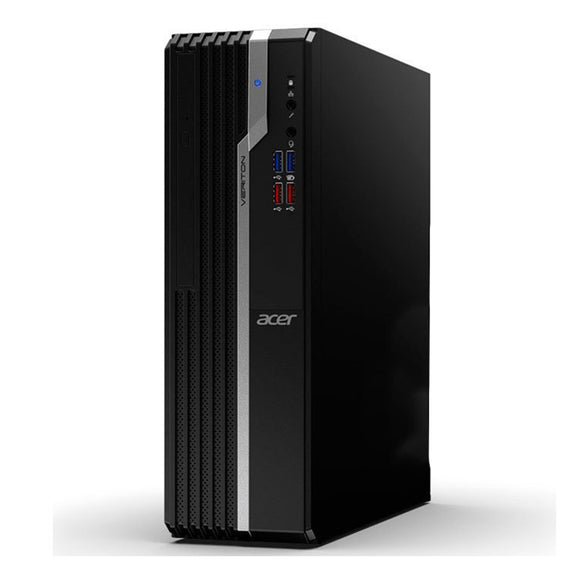

Acer Veriton X2660G Core i5-8400 8th Generation Windows 10 Pro
| Form Factor | 9L XSFF ( Extra Small Form Factor ) |
| Operating System | Windows 10 Pro 64-bit w/ ACM |
| Processor | Intel Core i5-8400 2.8GHz (9MB Cache,up to 4GHz) 6c/6t |
| Chipset | Intel B360 Express Chipset |
| Memory | 4GB DDR4, up to 64GB (16gb per Dimm, 4 slot) |
| Hard Disk Drive | 1TB 3.5-inch 7200rpm (no option for upgrade) |
| Graphics | Intel UHD Graphics 630 |
| Audio | Integrated high-definition, 5.1-channel surround sound |
| Networking | LAN: Gigabit Ethernet |
| Speaker | Internal Speaker |
| Optical Drive | 8x DvD-RW |
| Card Reader | With Card Reader |
| Parallel Port | With Parallel Port |
| Power Supply | 180w |
|
Standard I/O Ports
|
Front/Side I/O connectors
• Audio Jack(s): 2 • USB 3.1 Gen 1 port(s): 2 • USB 3.1 Gen 2 port(s): 2 • USB Type-C port(s): 2 Port 1 - USB 3.1 Gen 2 (up to 10 Gbps): 1 - USB charging 5 V; 3 A: 1 Port 2 - USB 3.1 Gen 2 (up to 10 Gbps): 1 Rear I/O connectors • D-Sub port(s): 1 • HDMI port(s): 1 • DisplayPort (DP) ports: 2 • COM port(s): 1 • Serial ports on board header (COM2): 1 • LAN port(s): 1 • PS/2 port(s): 2 • Audio Jack(s): 3 • USB 2.0 port(s): 4 |
|
Expansion Slot(s)
|
• Number of PCIe x16 slot(s): 2
• Number of PCIe x1 slot(s): 1 • Number of PCI slot(s): 1 • M.2 slot (for SSD): 1 • M.2 slot (for WLAN): 1 |
| Dimension | 102 (W) x 305.08 (D) x 332 (H) mm (4.02 x 12.01 x 13.07 inches) |
| Keyboard & Mouse | USB Keyboard and Mouse |
| Warranty | 3-3-3 |
